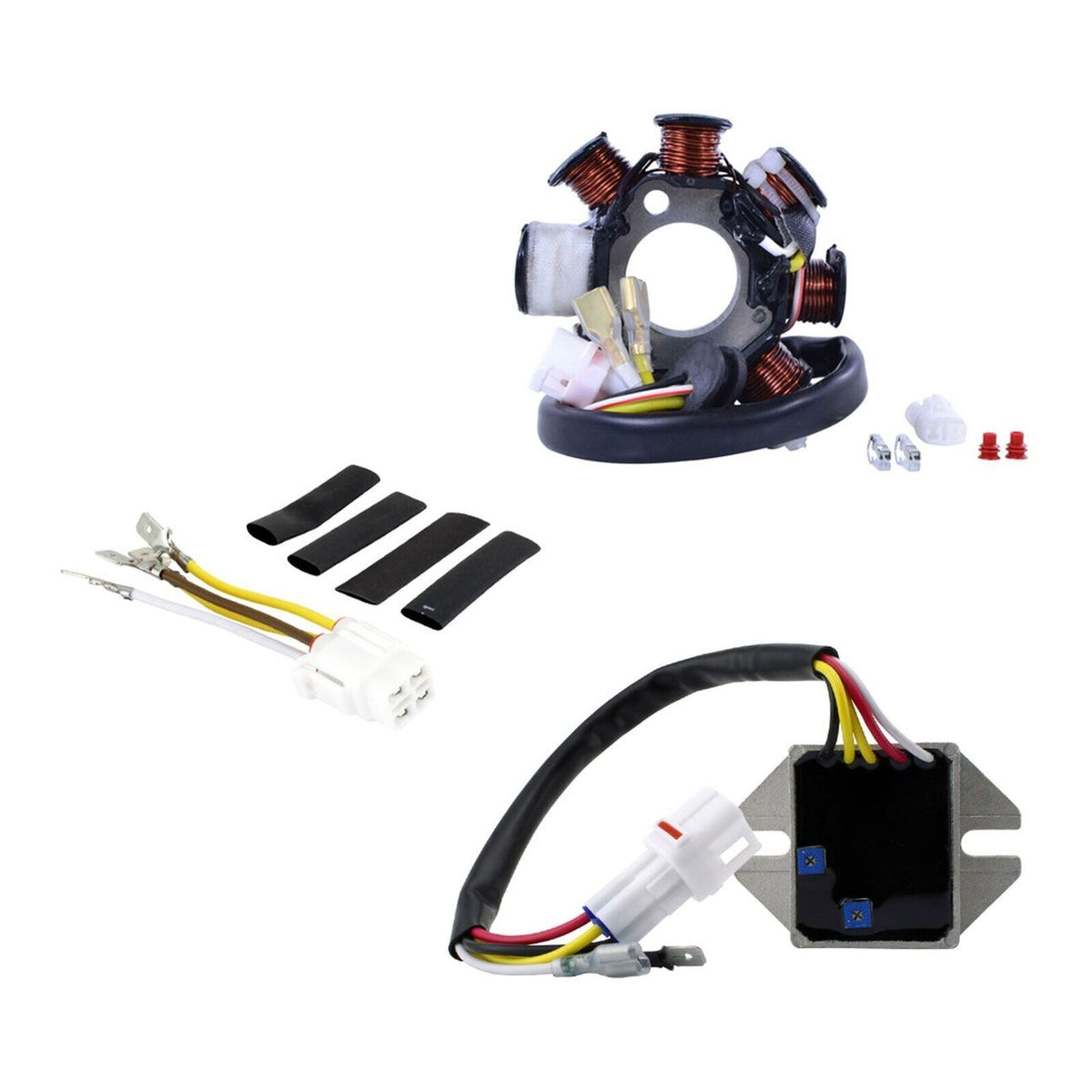

100W DC Converted Kit Stator + Voltage Regulator + Harness
- 100-watt DC charging system
- Replaces the OEM stator with a 100W high-output stator
- Converts the AC system into a high-power DC system
- All products are tested before shipping
Product images are accurate. If unsure, compare the items with your original parts before ordering.

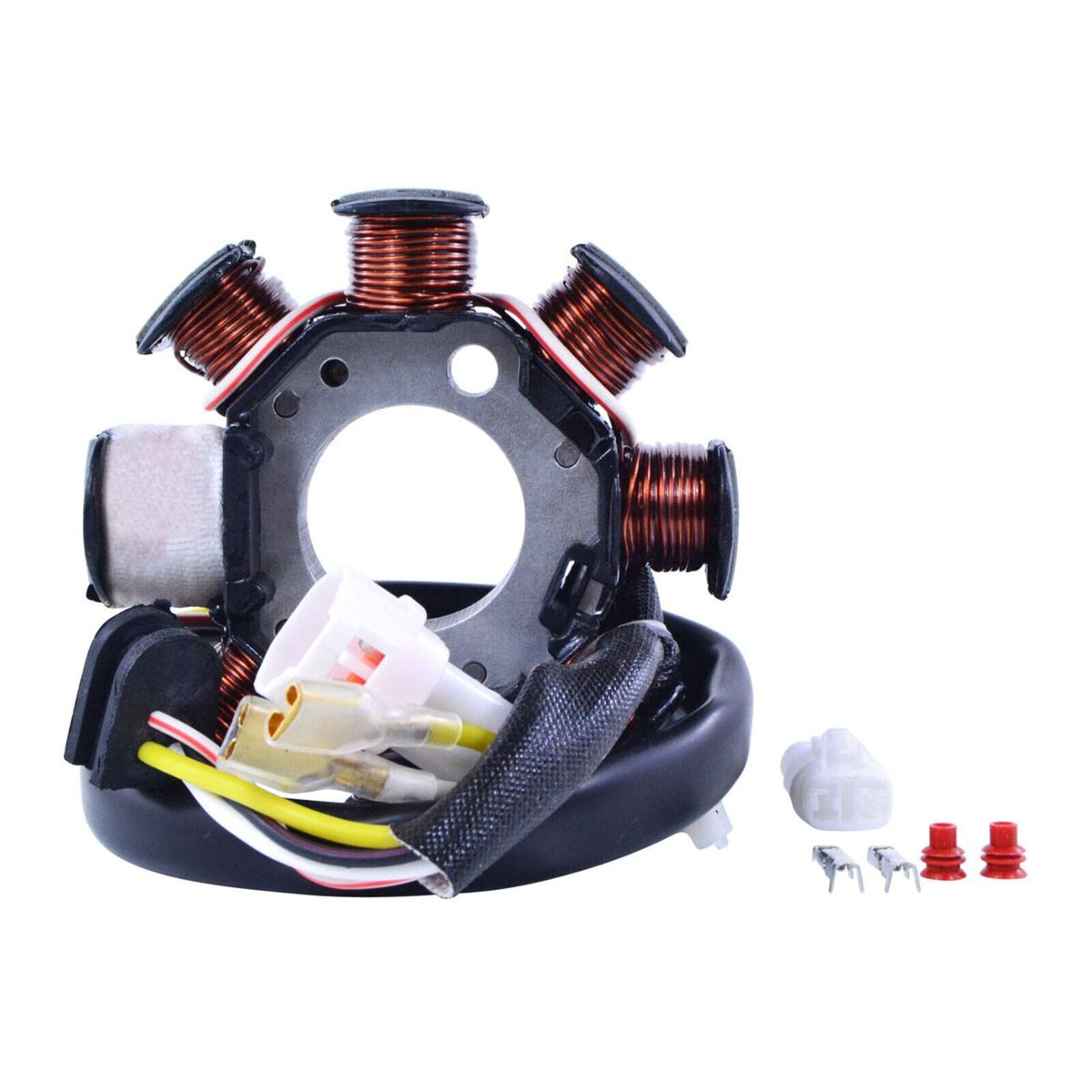

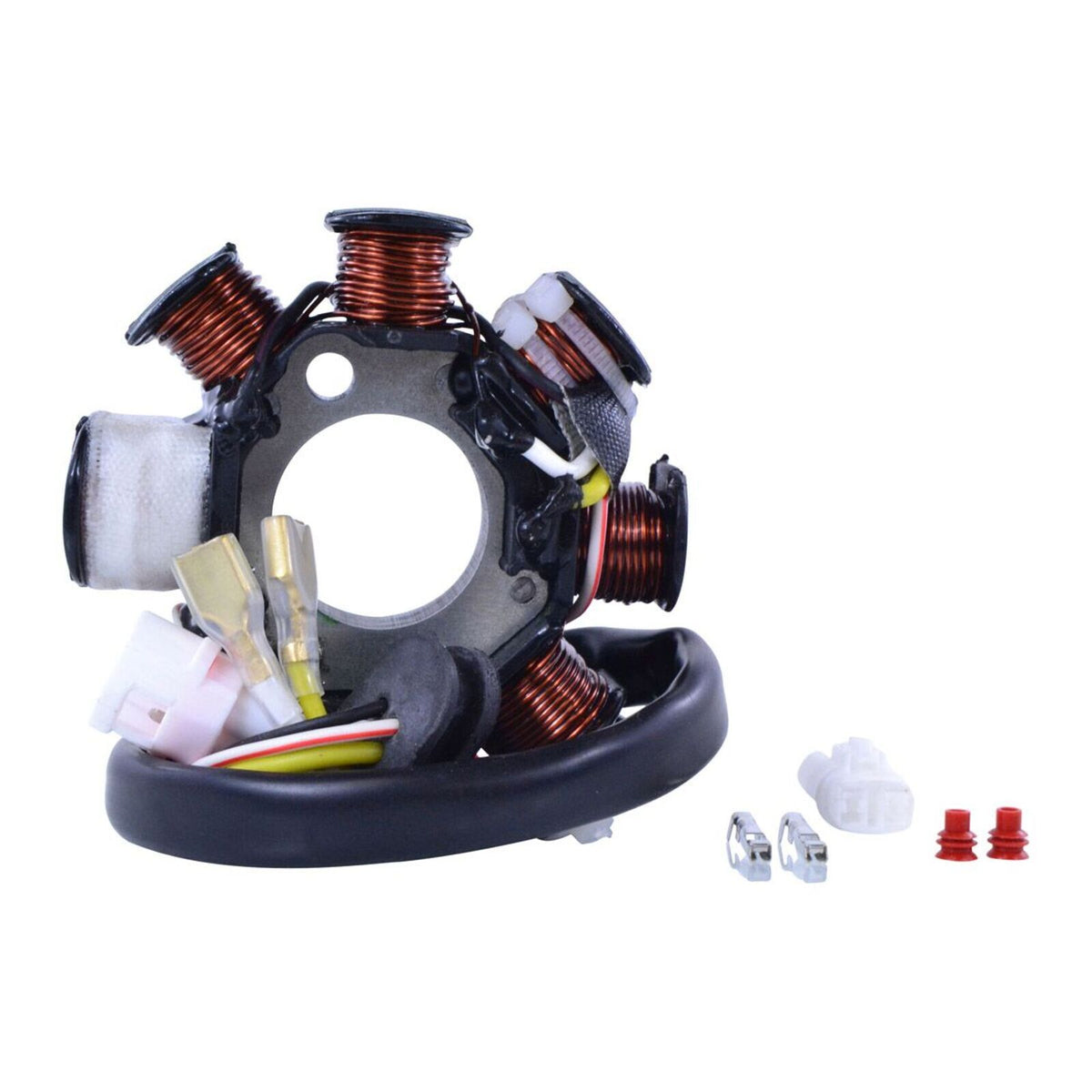

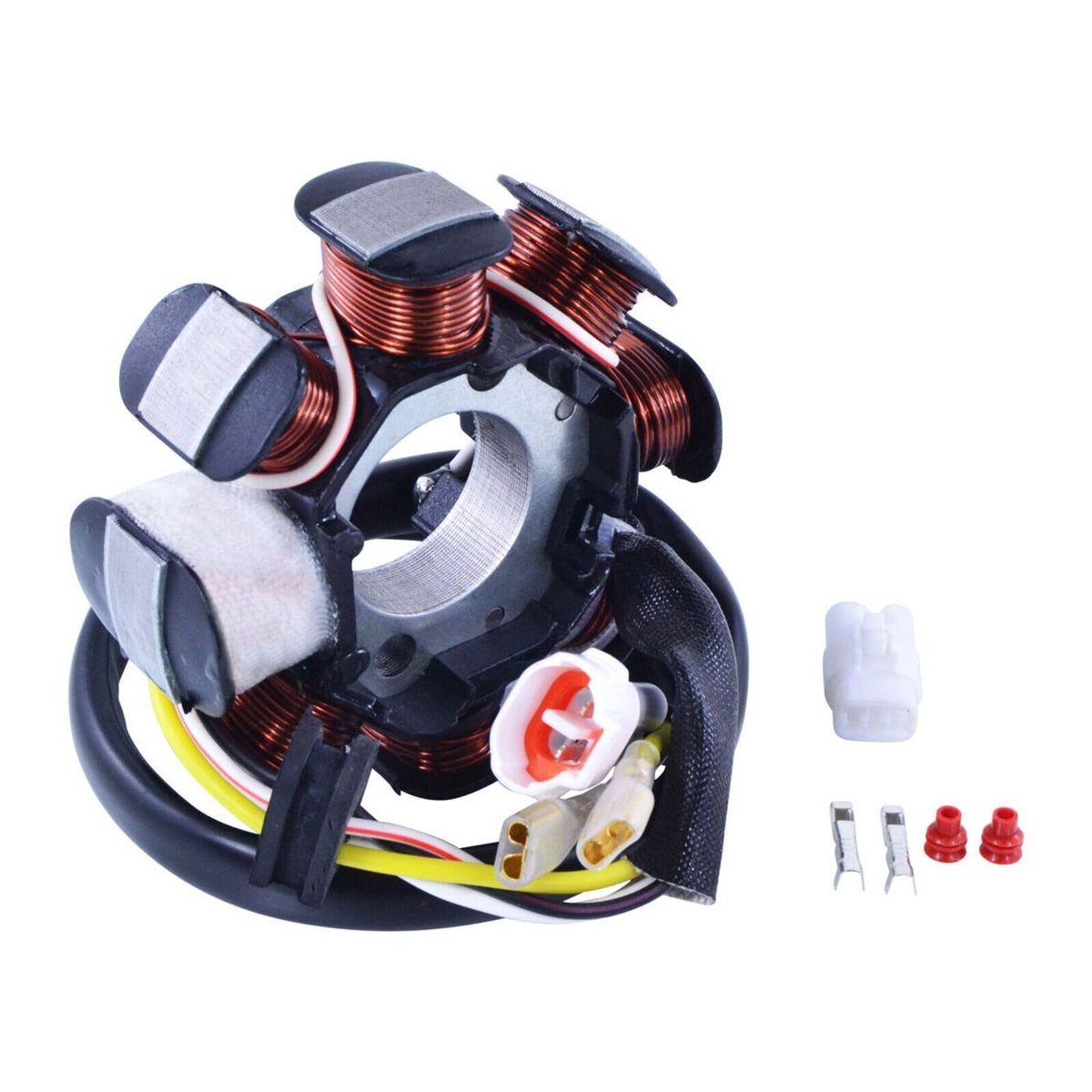

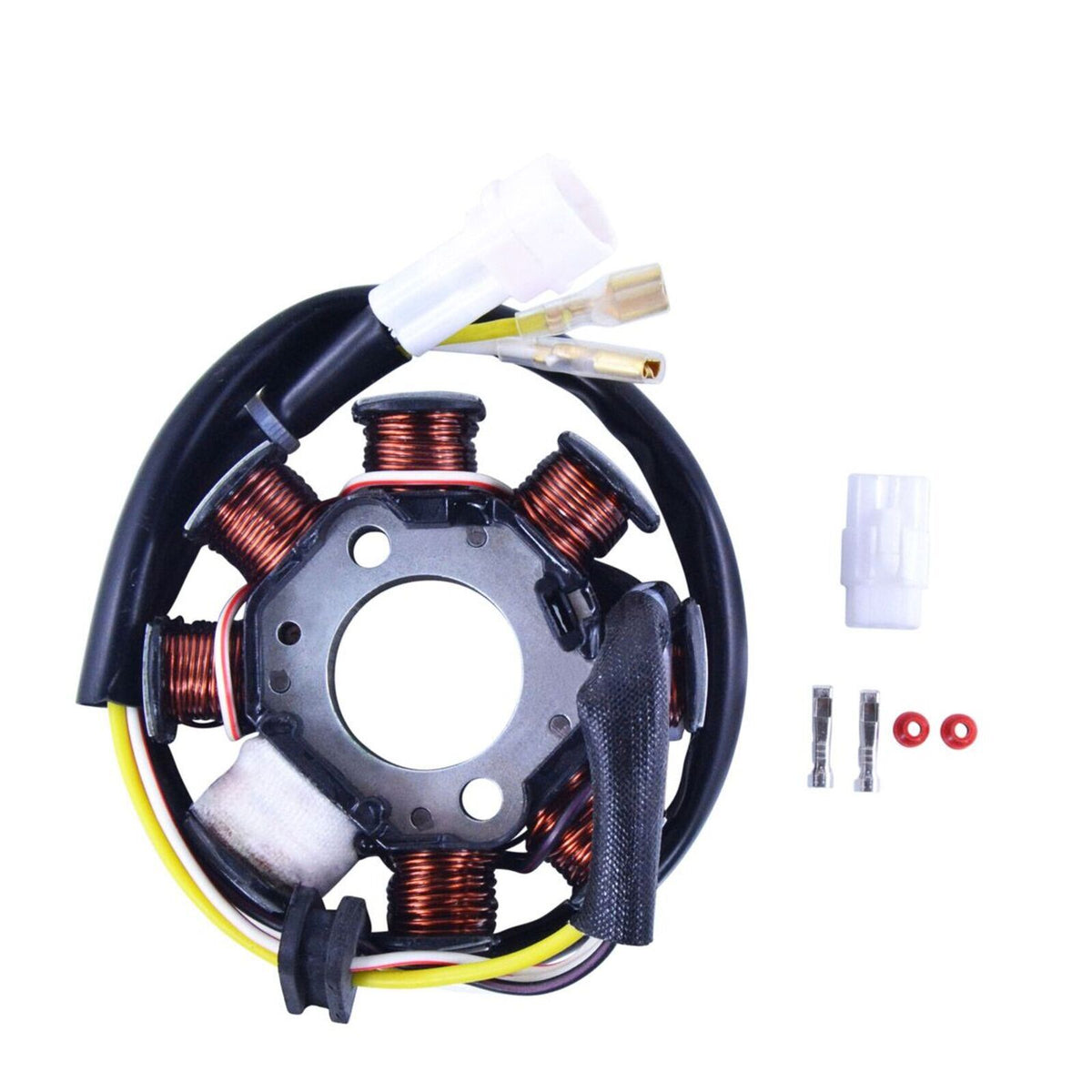

Brand New Aftermarket Stator
- High-grade lamination materials
- High-grade copper windings resistant to temperatures up to 200°C

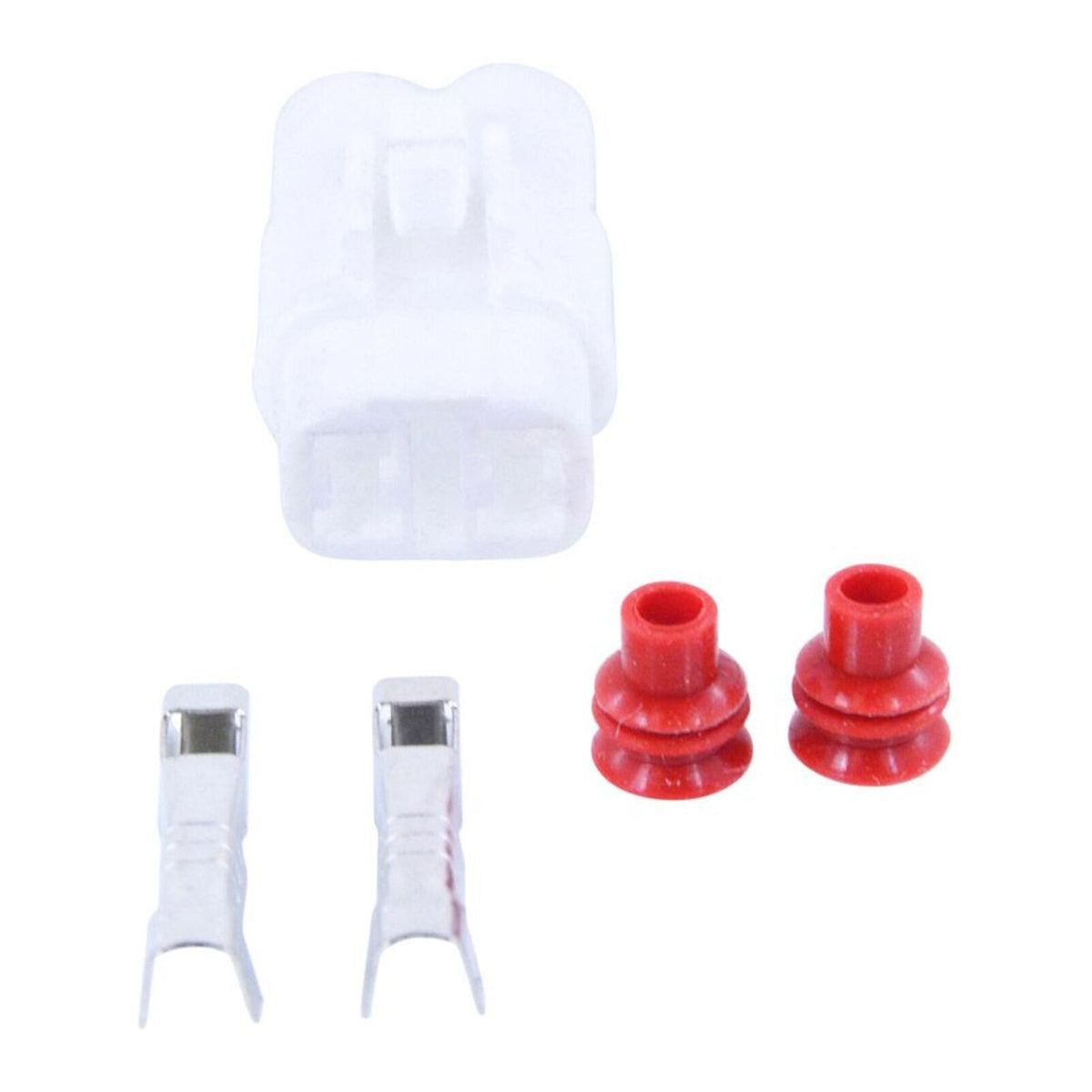

- Connectors included
- Rubber grommet included
An opposite connector (main harness side) is included, as original connectors are often melted, corroded or defective and can cause recurring electrical issues.

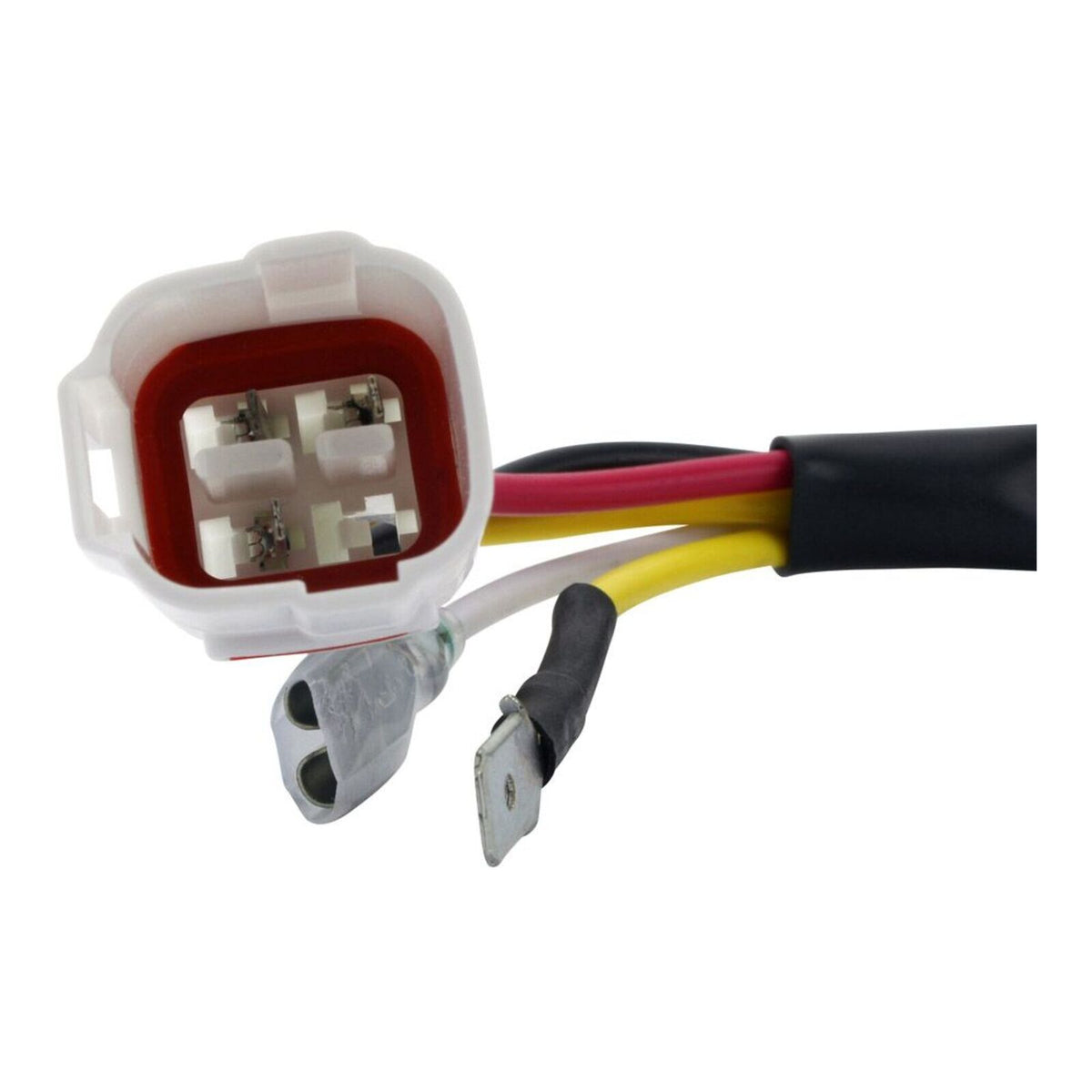

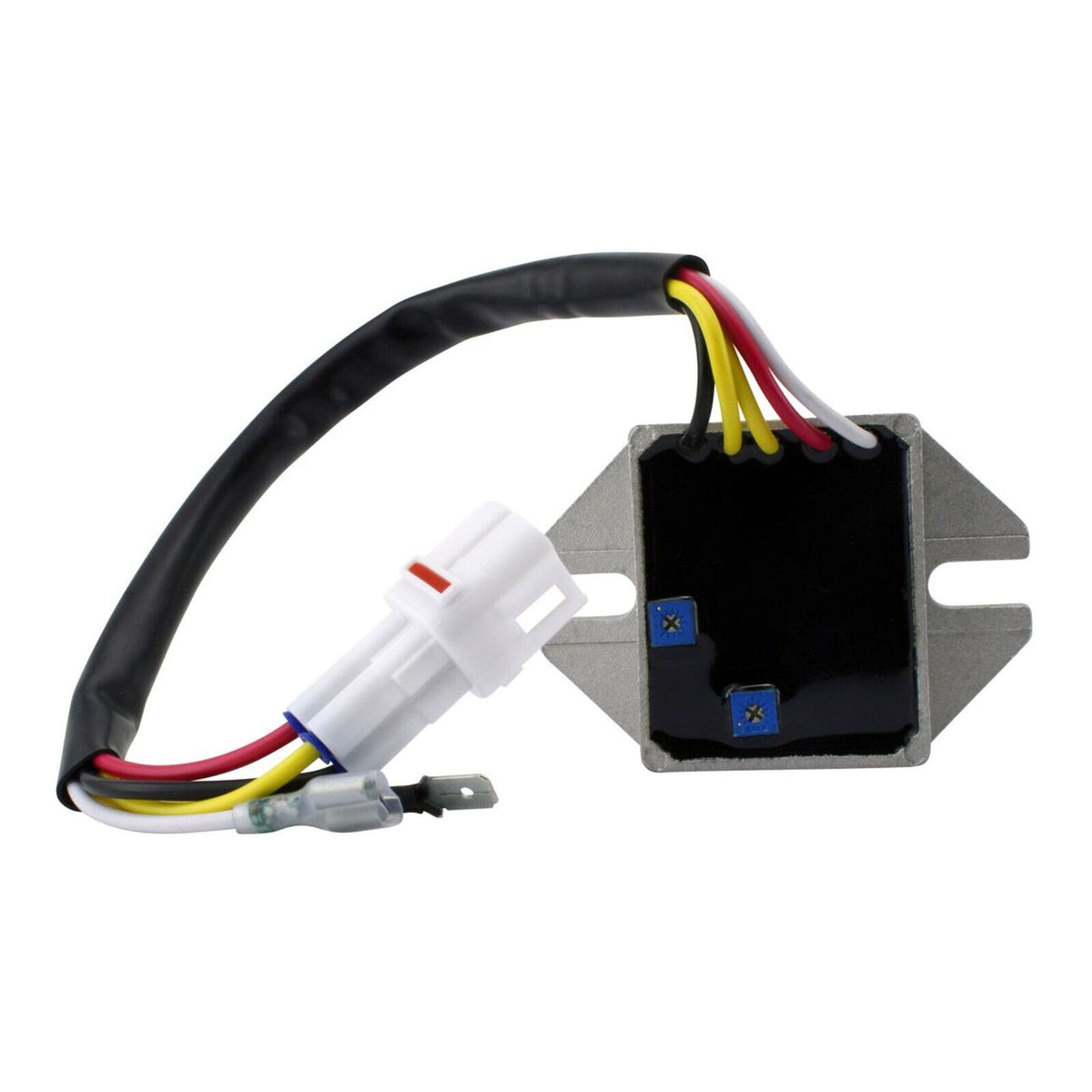

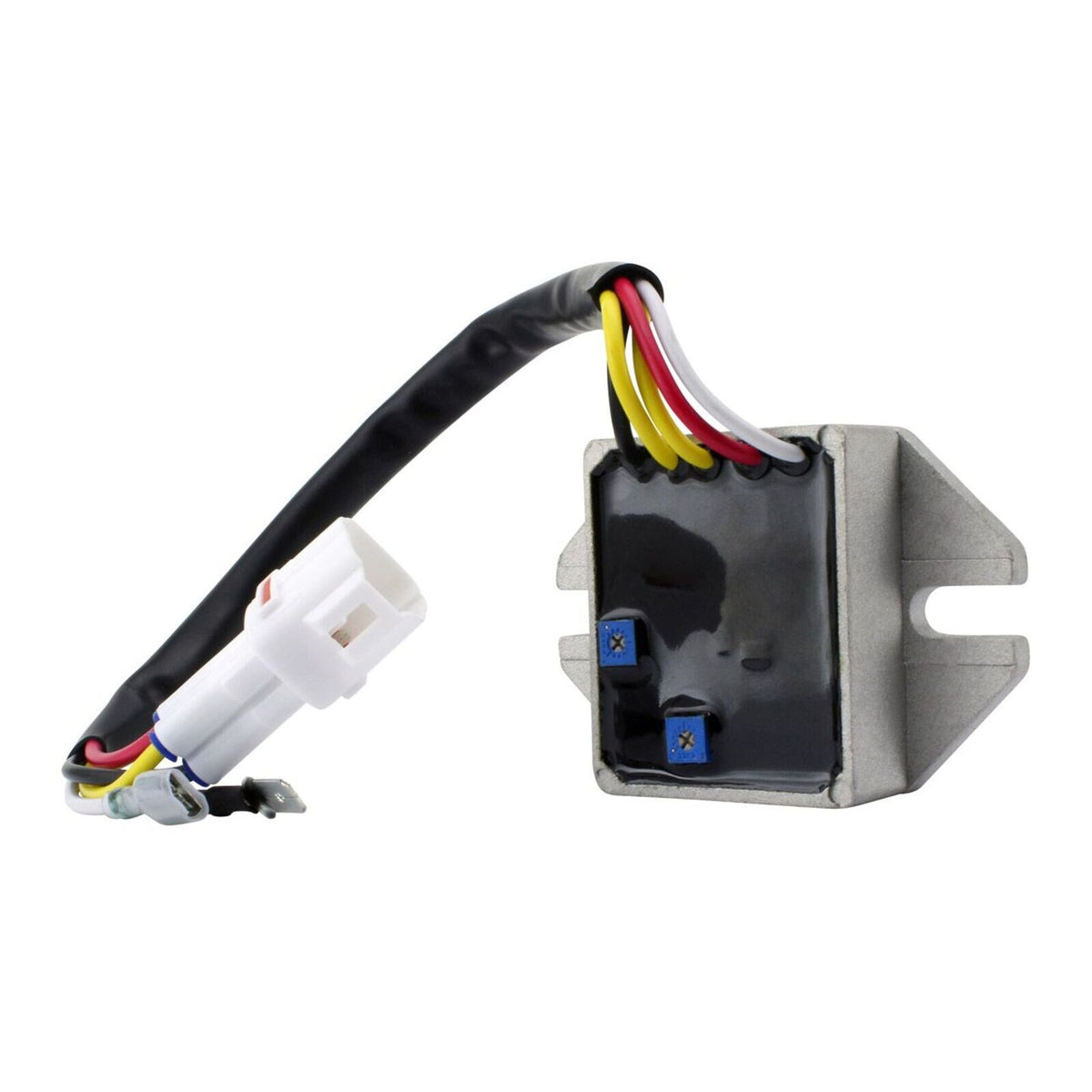

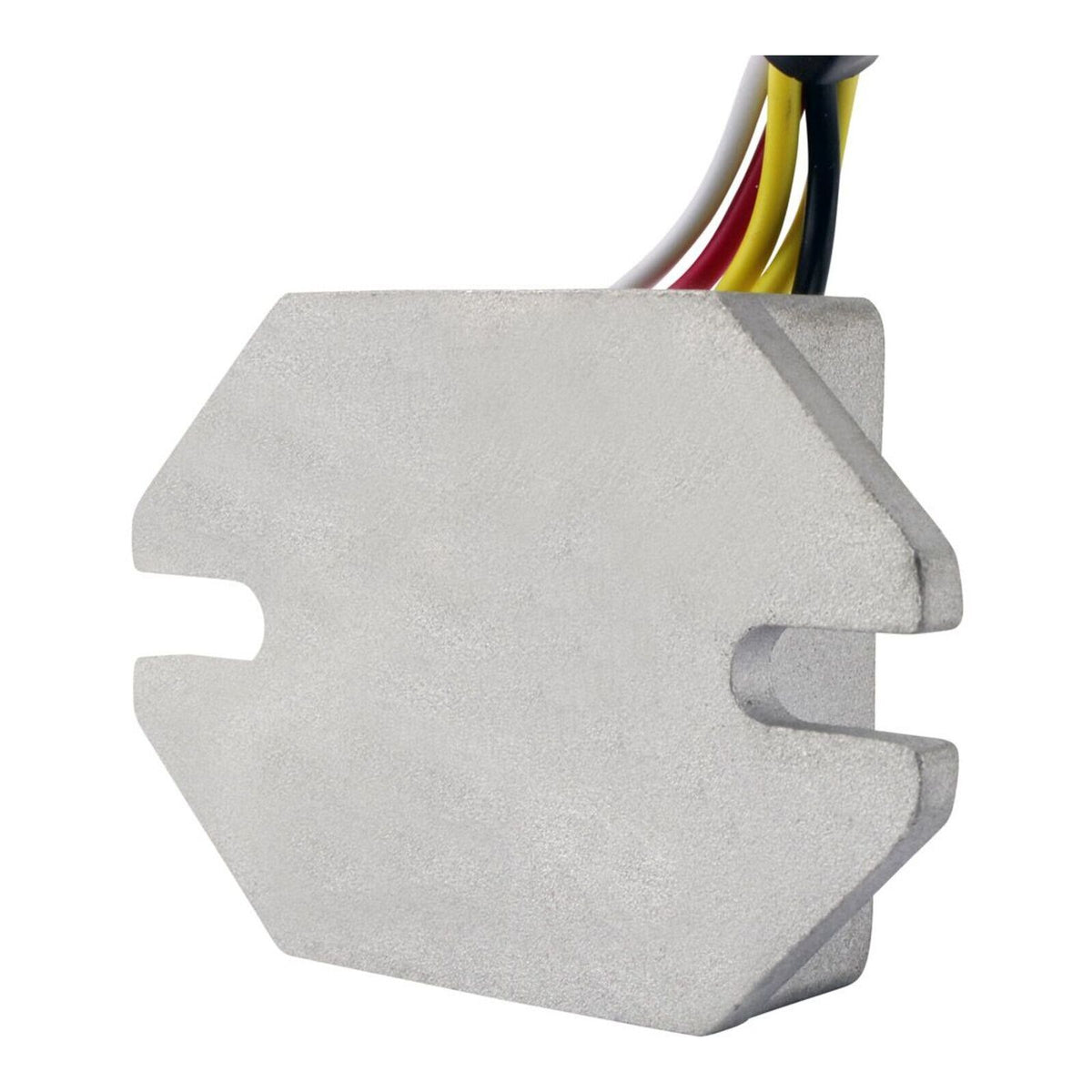

Brand New Aftermarket Voltage Regulator Rectifier
- No assembly required
- Higher-grade electrical components
- Connectors included
- Quality exceeds OEM equipment
Before Installing the New Stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement. Always use thread-locking compound when securing the stator. If the stator includes a pickup coil, check the air gap during installation. Set it as close as possible, but no less than 0.010".
Before Installing the New Voltage Regulator Rectifier
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
Warning
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Stator Specifications
Dimensions:
- Interior diameter: 29 mm
- Exterior diameter: 83 mm
- Thickness: 13 mm
- Stator-to-grommet wire length: 60 mm
- Grommet-to-plug wire length: 490 mm
Other Specifications:
- Number of wires: 4
- Number of plugs: 3
- Number of pins: 4
- Number of poles: 8
- Alternator resistance (white to yellow): 0.5 ohms ±20%
- Source resistance (white/red to black/red): 30 ohms ±20%
Regulator Rectifier Specifications
Dimensions:
- Width: 54 mm
- Length: 80 mm
- Height: 22 mm
- Wire length: 235 mm
- Mounting hole centre-to-centre distance: 65 mm
Other Specifications:
- Number of plugs: 3
- Number of pins: 5
- Number of wires: 5
- Minimum charging voltage: 14.5 V ±0.5 V
- Maximum charging current: 50 A / 500 W
- Open circuit voltage: Less than 15 V
- Operating temperature: -20°C to 85°C

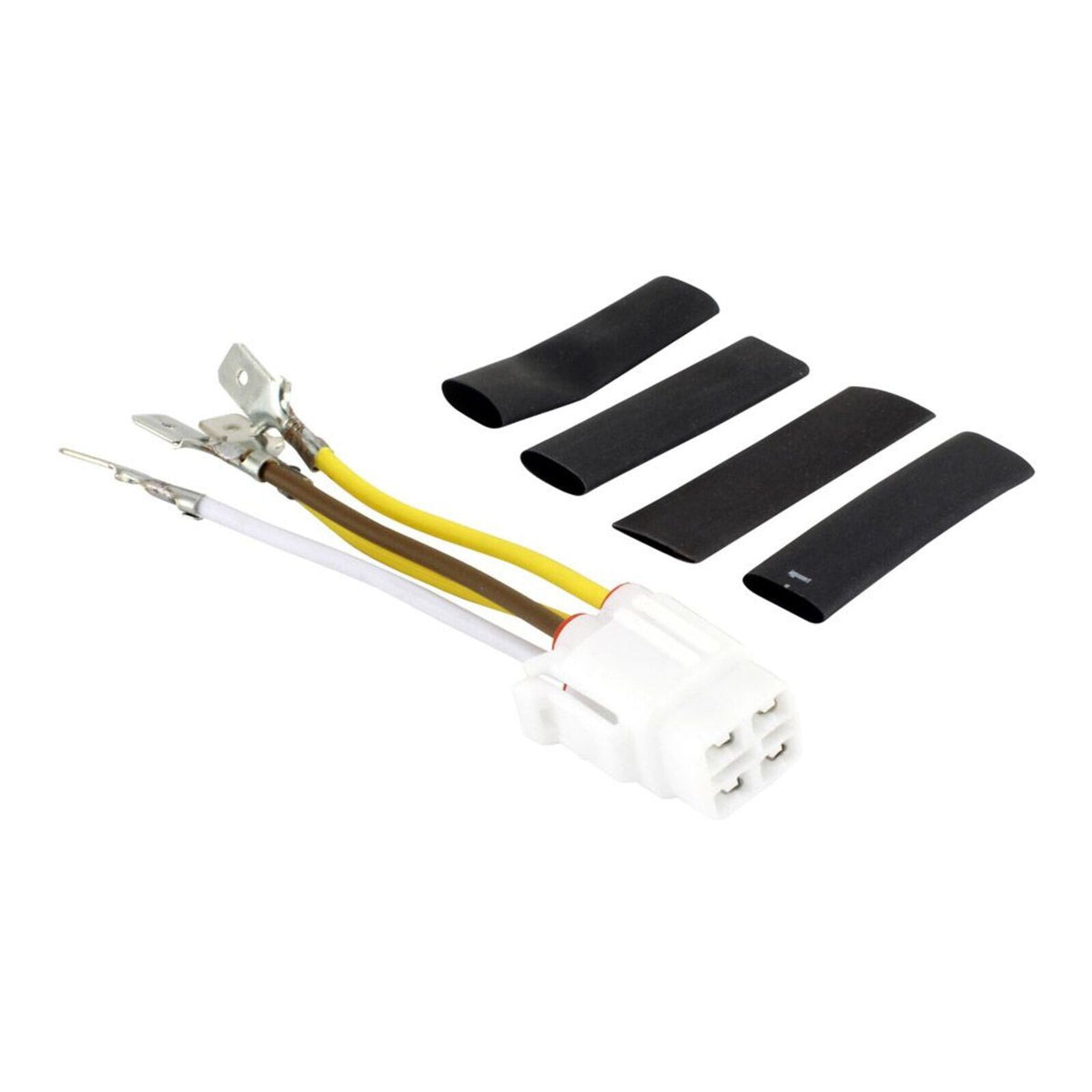

Harness Specifications
- Wire length: 80 mm
- Number of wires: 4

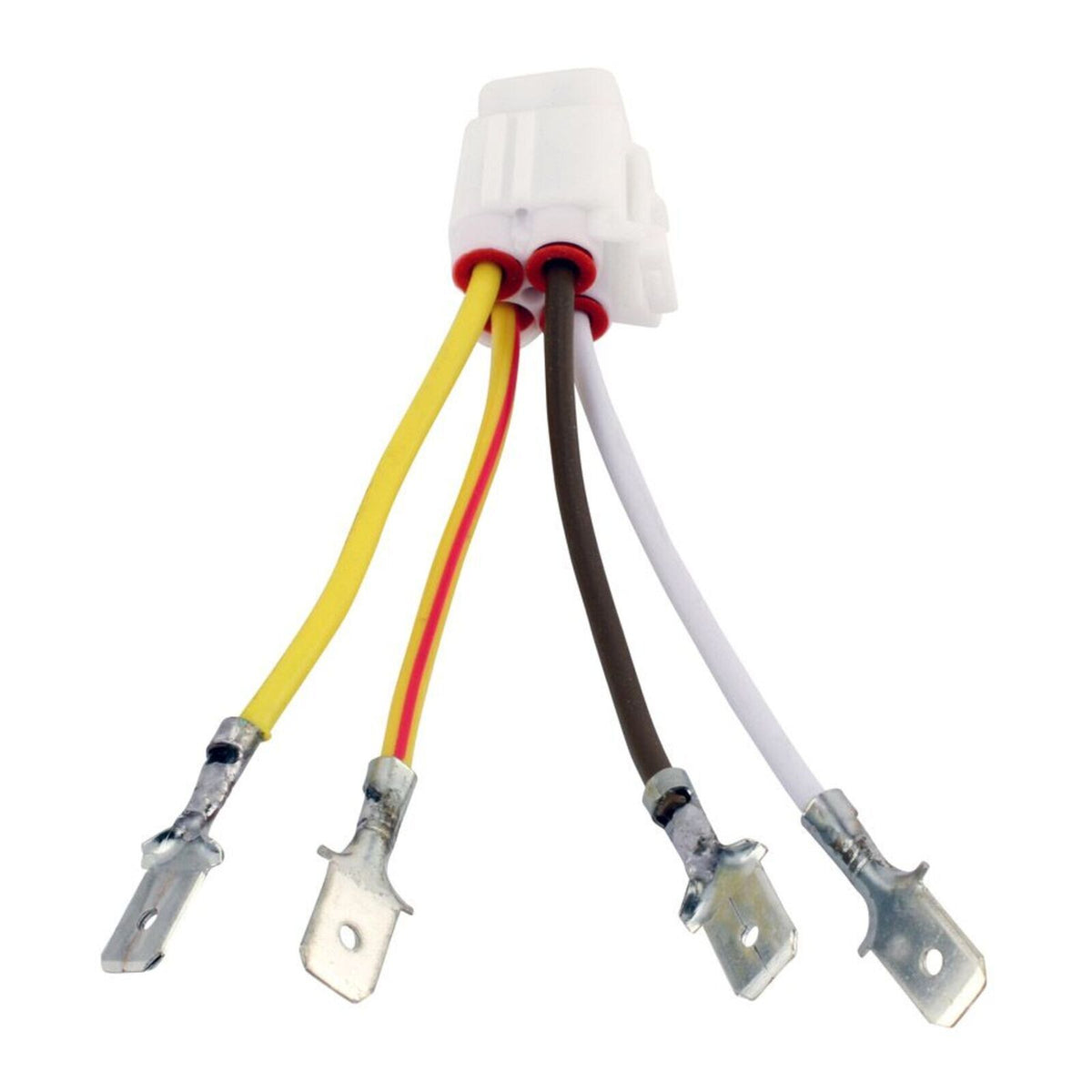

- Number of plugs: 1
- Number of pins: 4
