STATOR KIT ASSTD CAN-AM MODELS RFR FITMENTS (RMS900-106953)

RMSTATORSKU: RMS900106953
No reviews

Title: STATOR KIT ASSTD CAN-AM MODELS RFR FITMENTS (RMS900-106953)
Price:
Sale price$579.99

In Store Availability

Stock in Store
Not in Store
Stock at Warehouse
Low Stock

Description

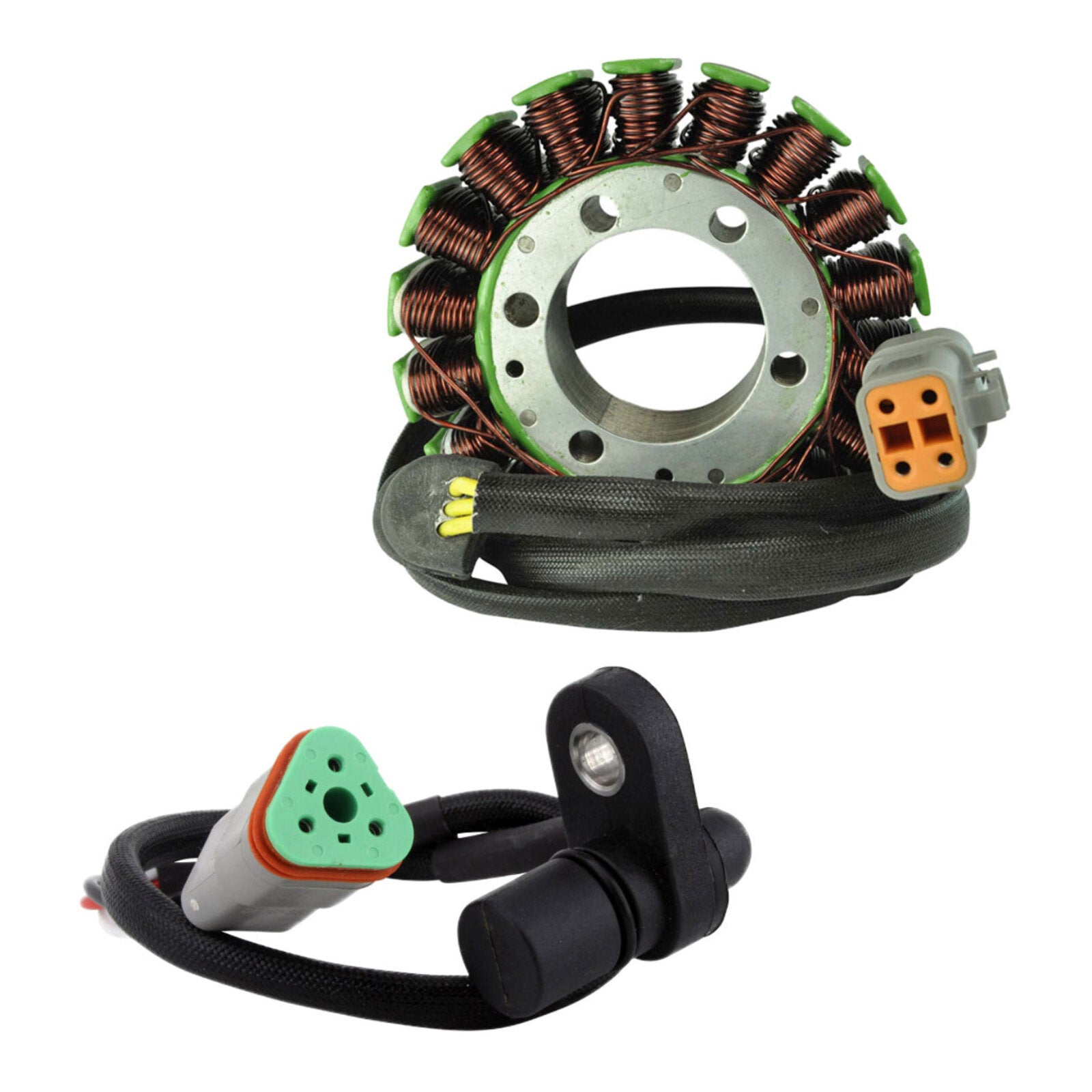

Brand new aftermarket stator and speed sensor kit.

  • Direct replacement for the original unit.
  • Plug-and-play, direct fit and easy installation.
  • All products are tested before shipping.

Stator Features:

  • High-grade lamination materials.
  • High-grade copper windings, resistant to temperatures up to 200°C.
  • Connector included.
  • Rubber grommet included.

Before Installing the New Stator:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on the stator and regulator/rectifier.
  • Check and repair any melted wiring.
  • Apply high-temperature dielectric grease to all connectors.

The stator may use a different wire colour code from the original. All wires are installed in the correct order. Do not change the wiring configuration. This stator is designed as a direct plug-in replacement.

Always use thread-locking compound when installing the stator. If the stator includes a pickup coil, ensure the air gap is correctly adjusted. Set it as close as possible, but no less than 0.010 inches.

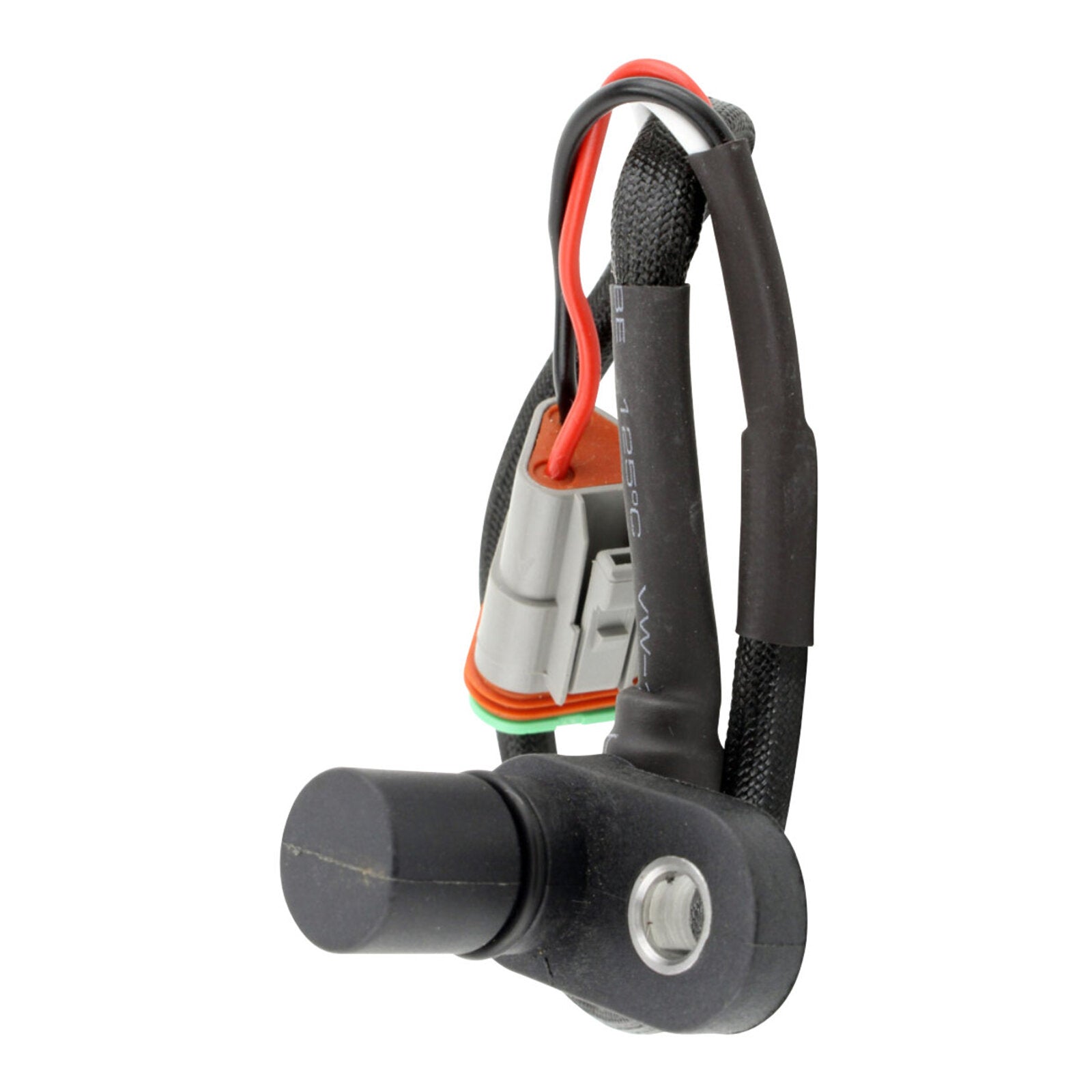

Speed Sensor:

Direct replacement for the original unit.

Warning: Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.

Stator Dimensions:

  • Interior diameter: 41 mm
  • Exterior diameter: 104 mm
  • Thickness: 30 mm
  • Stator-to-grommet wire length: 140 mm
  • Grommet-to-plug wire length: 850 mm

Other Specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of terminals: 3
  • Alternator resistance: Yellow wire to yellow wire: 0.4 ohms ±20%

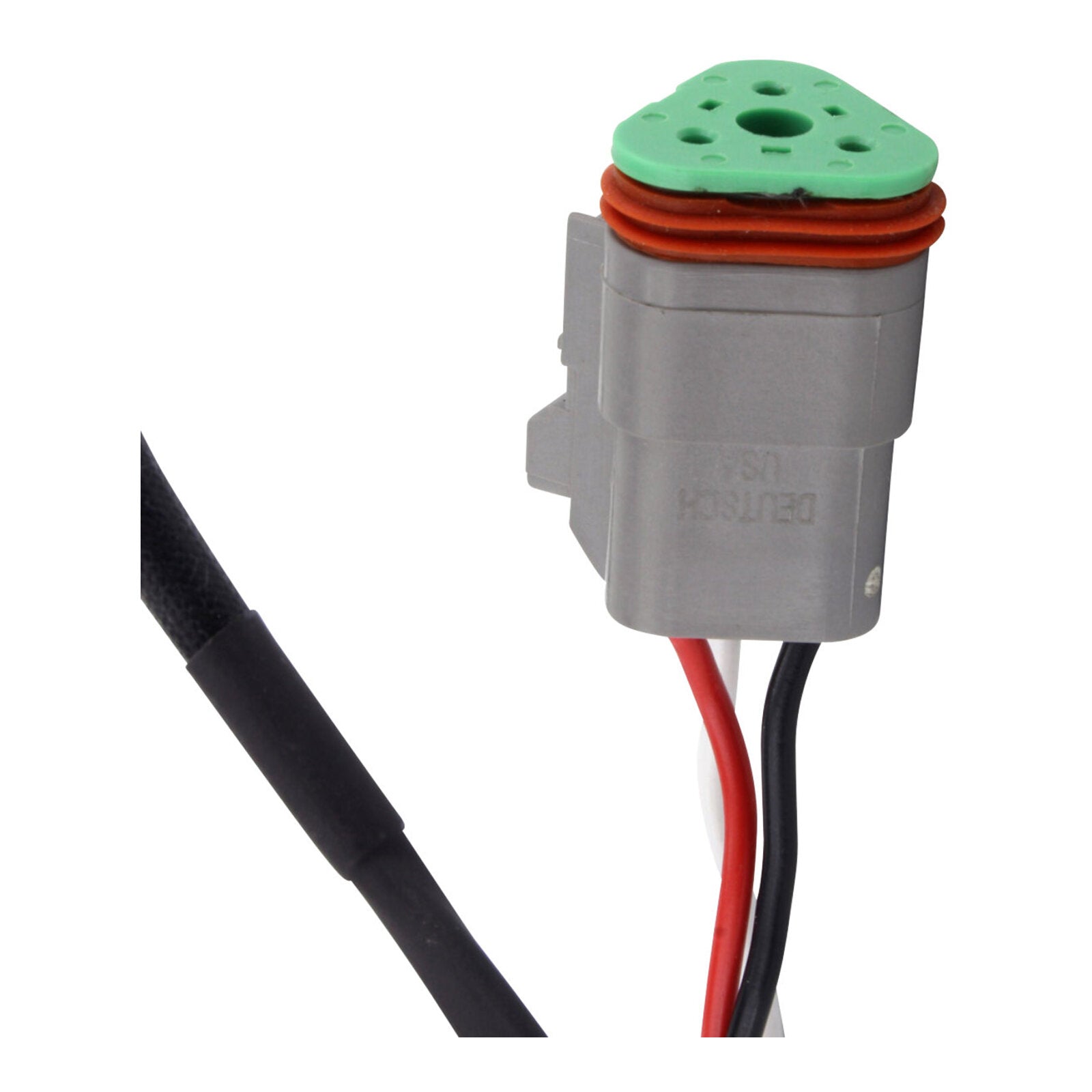

Speed Sensor Dimensions:

  • Width: 19 mm
  • Length: 50 mm
  • Height: 37 mm
  • Wire length: 350 mm
  • Number of plugs: 1
  • Number of terminals: 3
