Description
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts. Moreover, the regulator has our new machined billet aluminium casing which dissipates heat 33% better than standard moulded casing.
Features:
- Power only flows through the electrical components when the battery is charging.
- Allows the stator to have lower current flowing when not used, extending its lifetime.
- Improved Heavy Duty bypass harness.

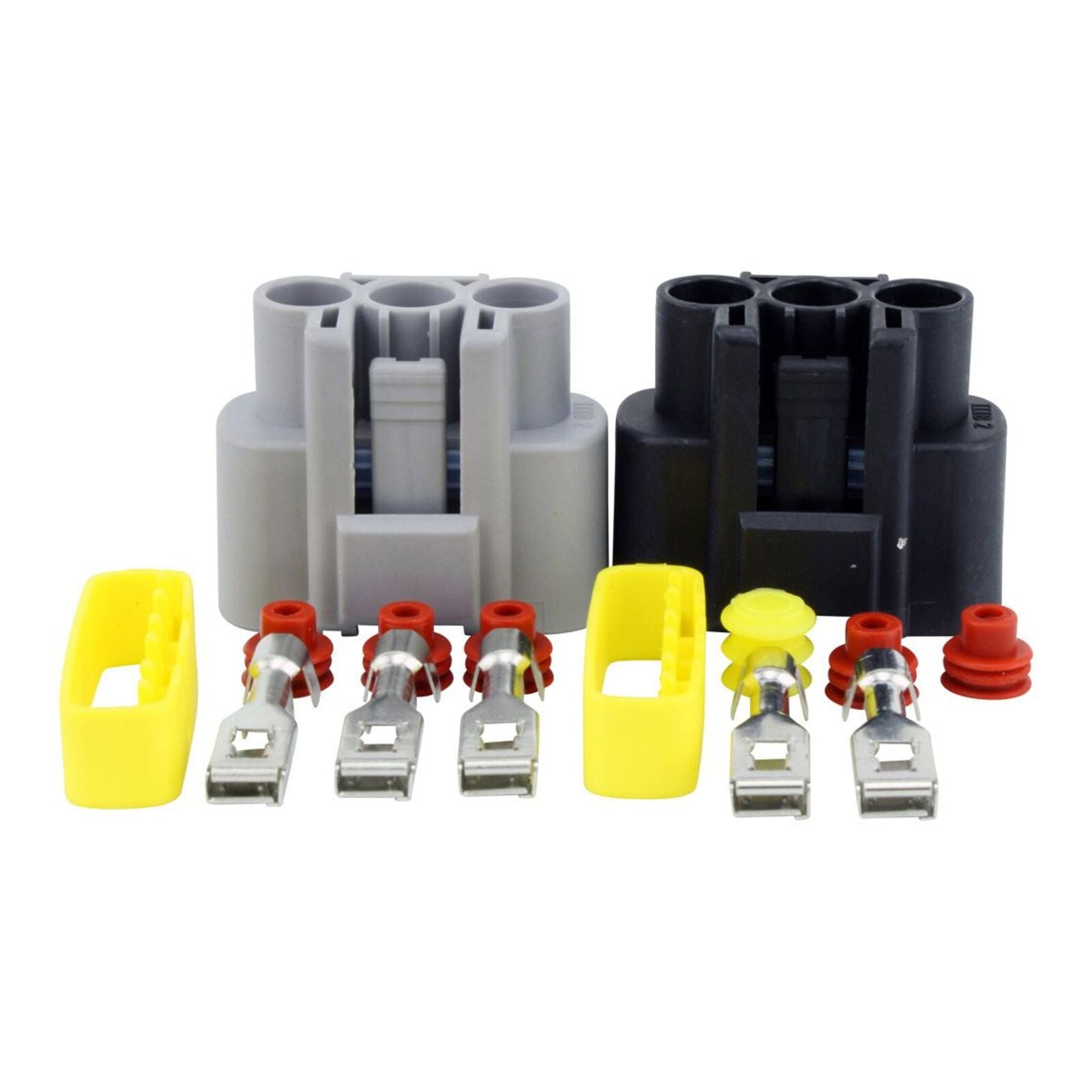

- Automotive grade wiring harness with OEM-quality heavy-duty connectors.
- Made with the same connectors as OEM parts.
- Wiring harnesses are manufactured in a factory with controlled quality processes.
- Uses the same Cross-Link braided copper wire as the OEM parts
- Resists heat, oil, acid, gas and more with very low electrical resistance.
About the SERIES voltage regulation technology
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt-type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and onto the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
Specifications:

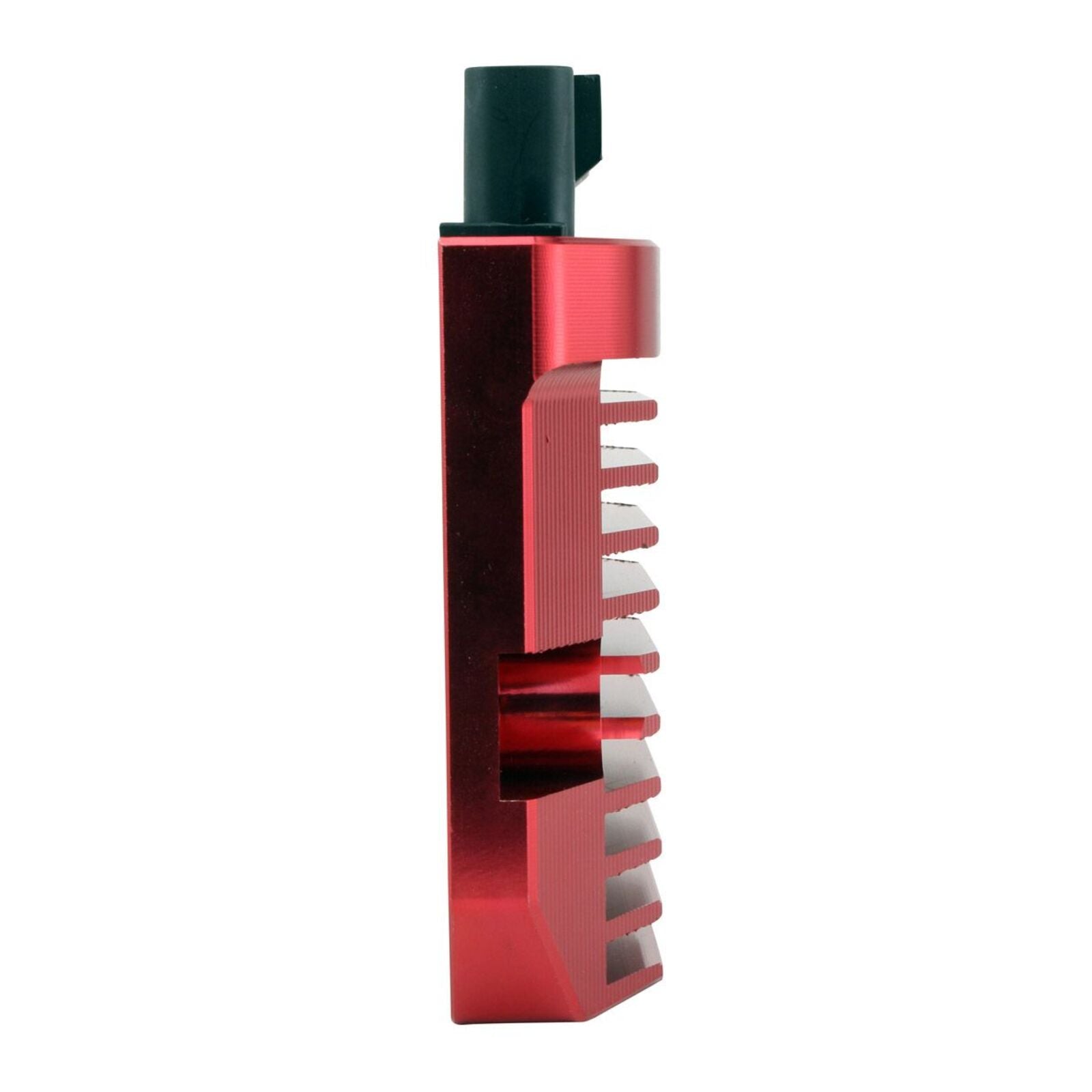

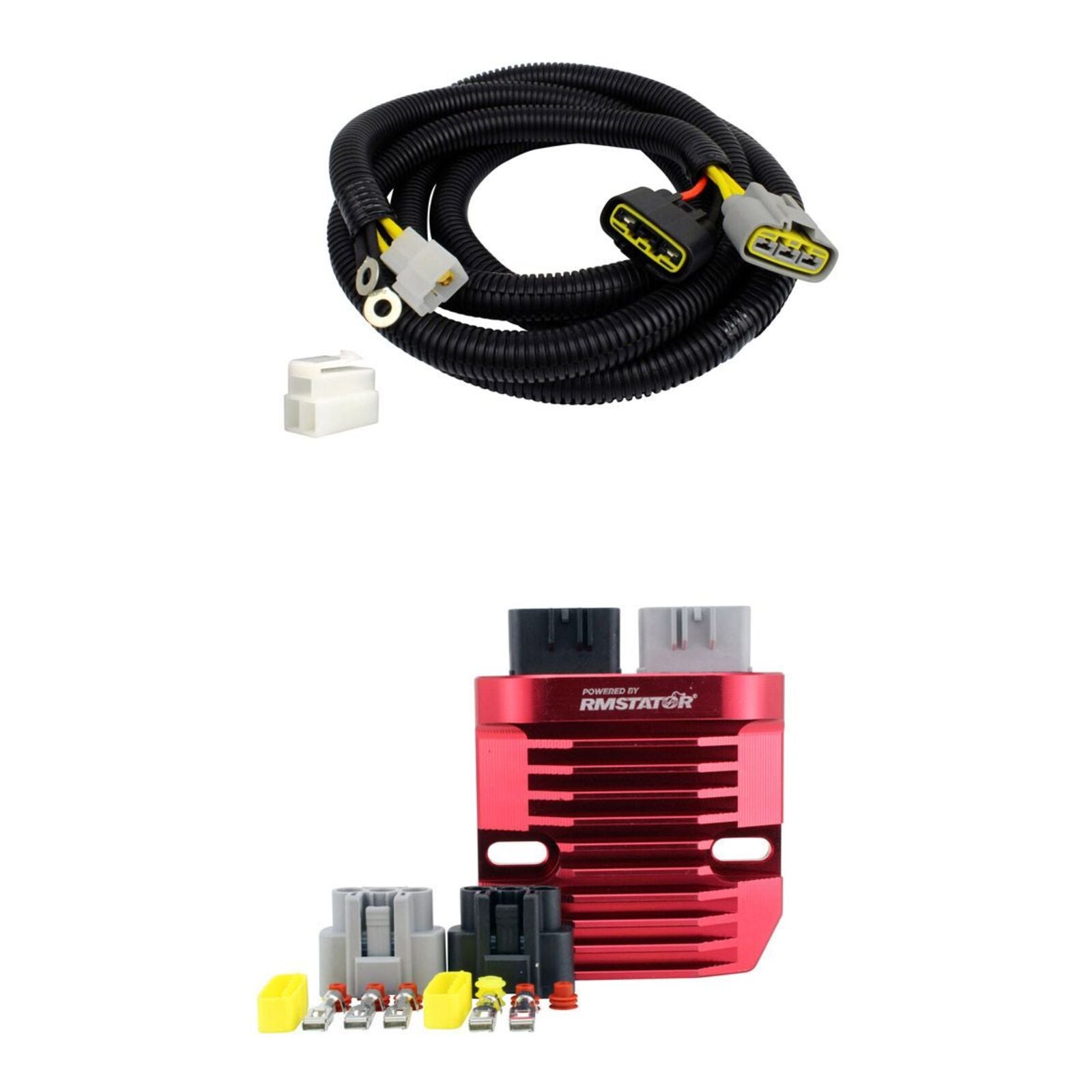

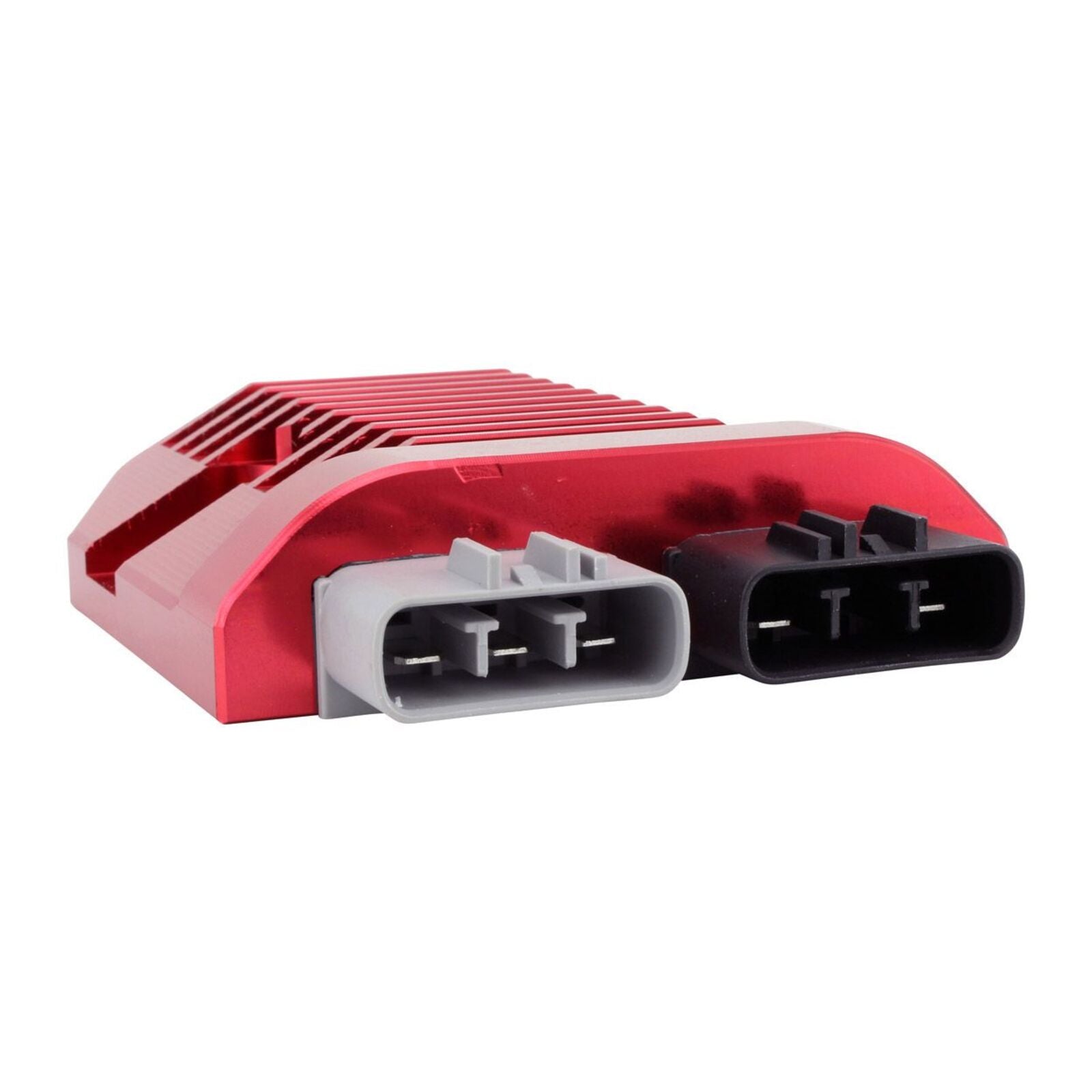

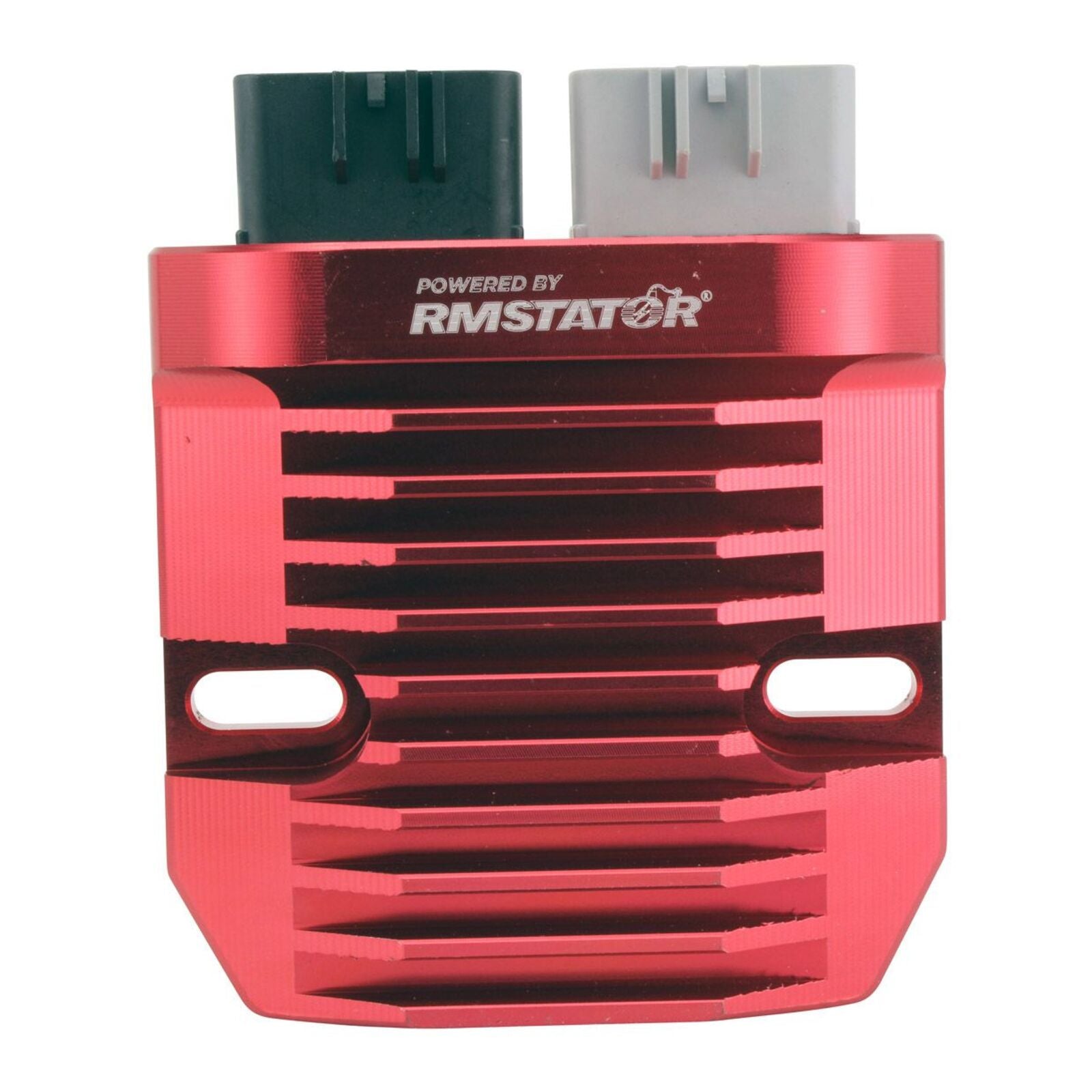

Re d Machined Aluminum MOSFET Regulator
Dimensions
- Width: 103 mm
- Length: 103 mm
- Height: 28 mm
- Fixation holes centre to centre: 80 mm
Specifications
- Number of plugs: 2
- Number of pins: 5
- Number of wires: 0
- Minimum Charging Voltage: 14.5 V ± 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C

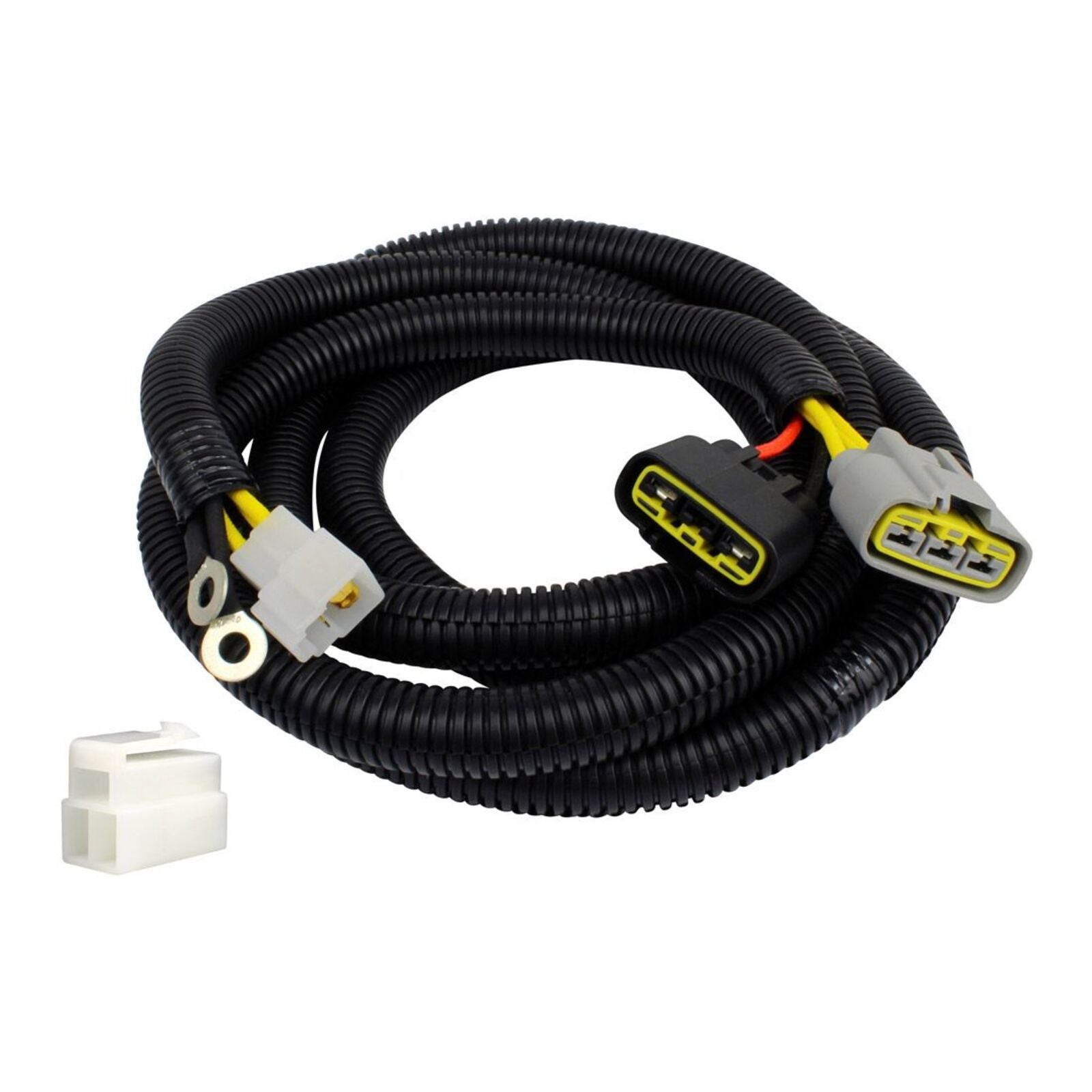

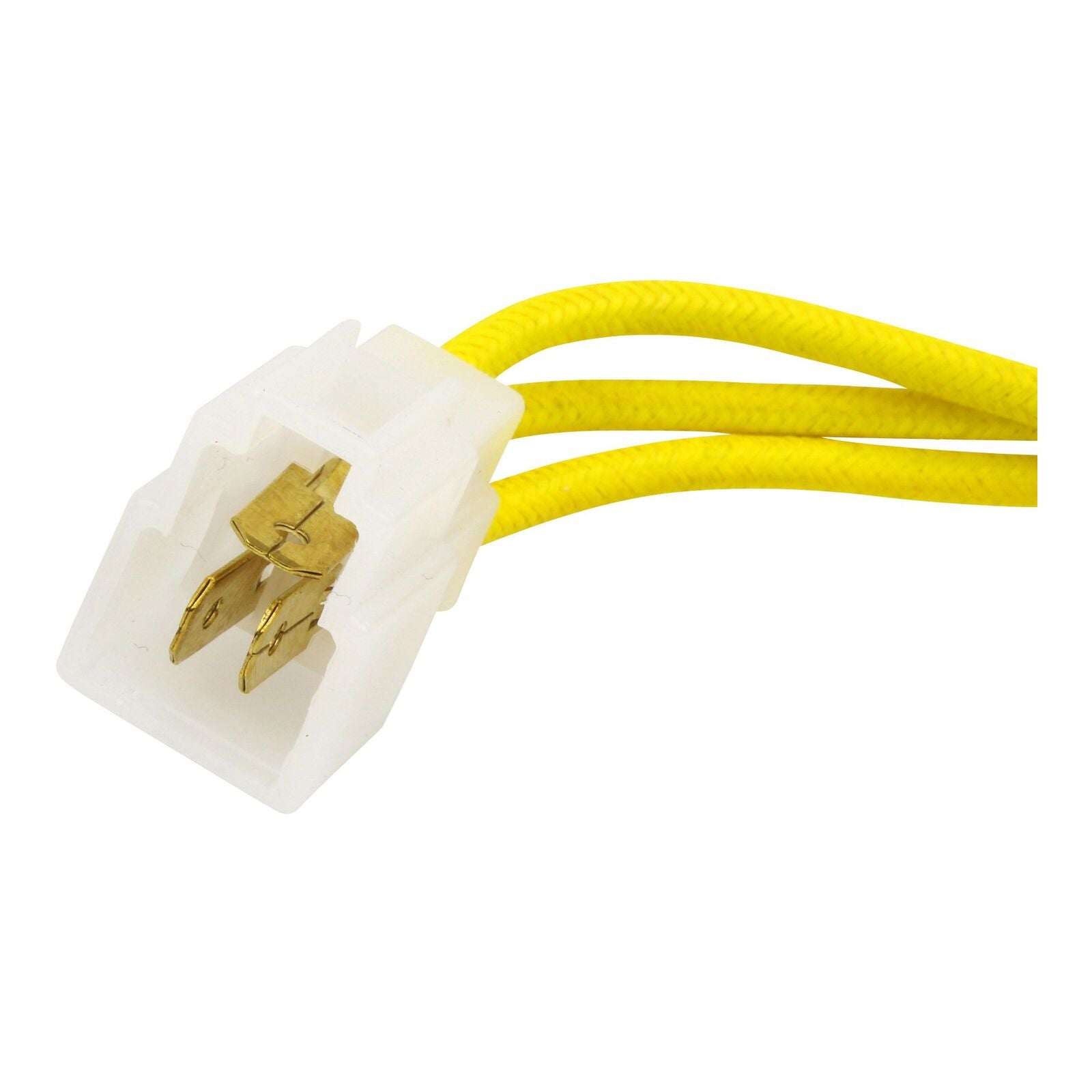

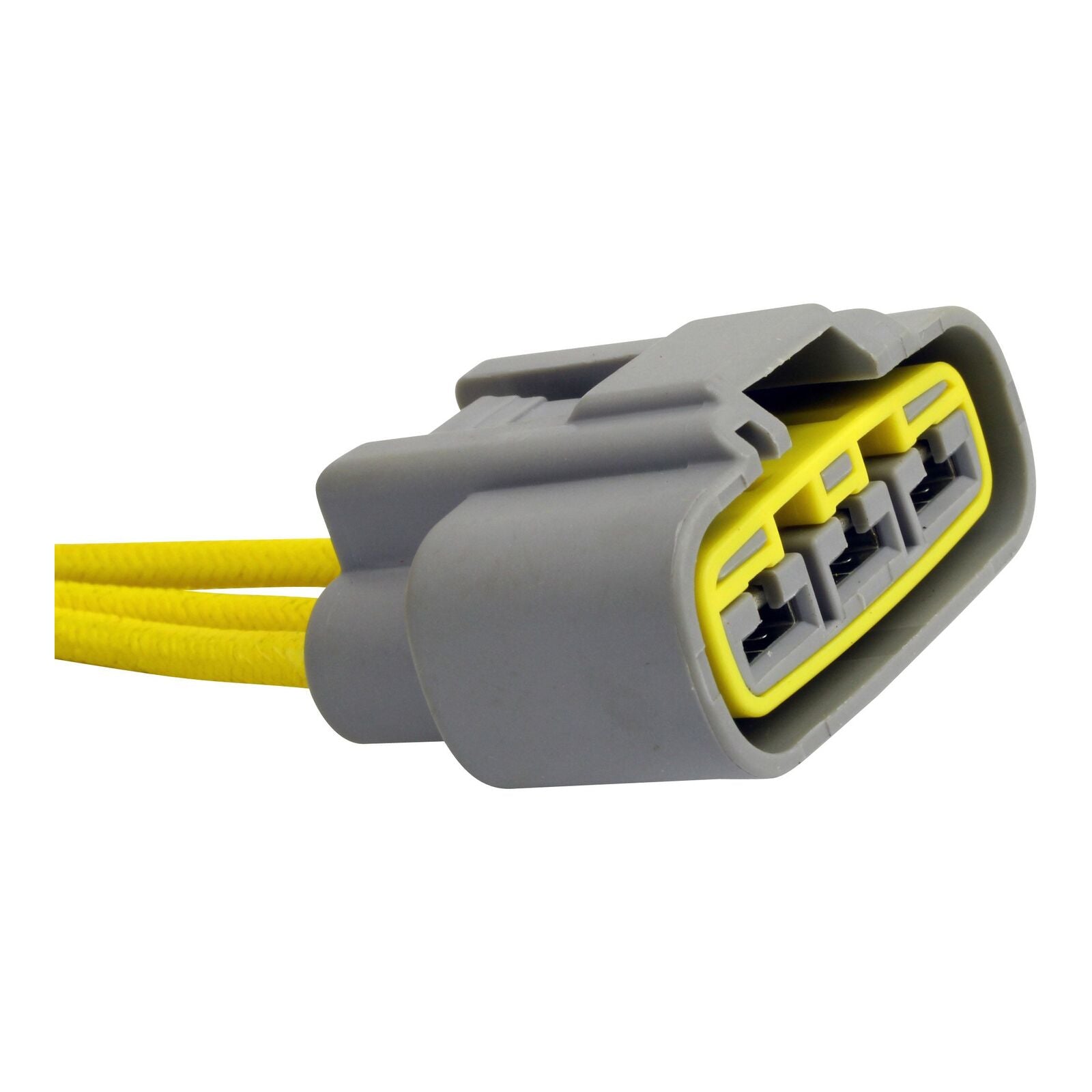

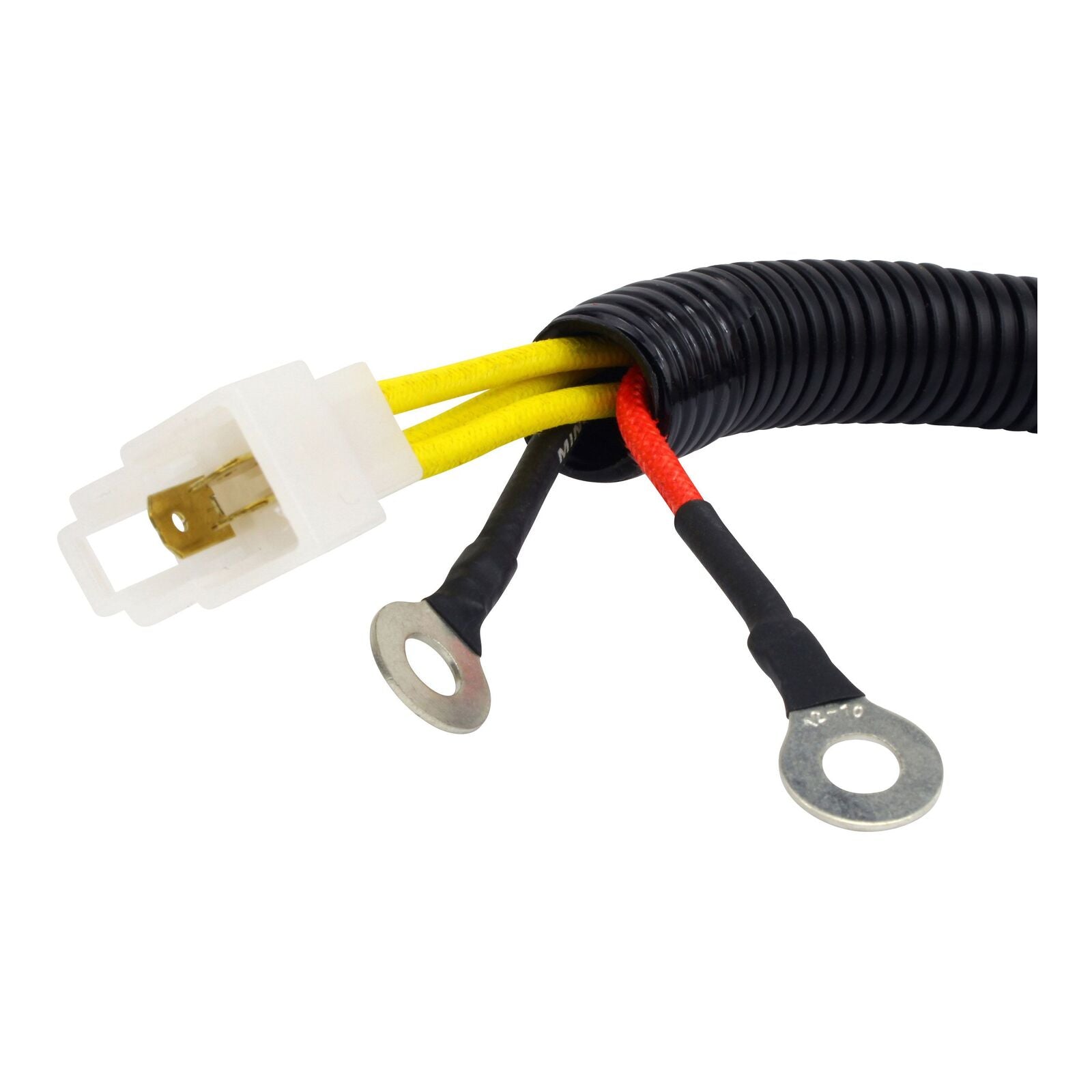

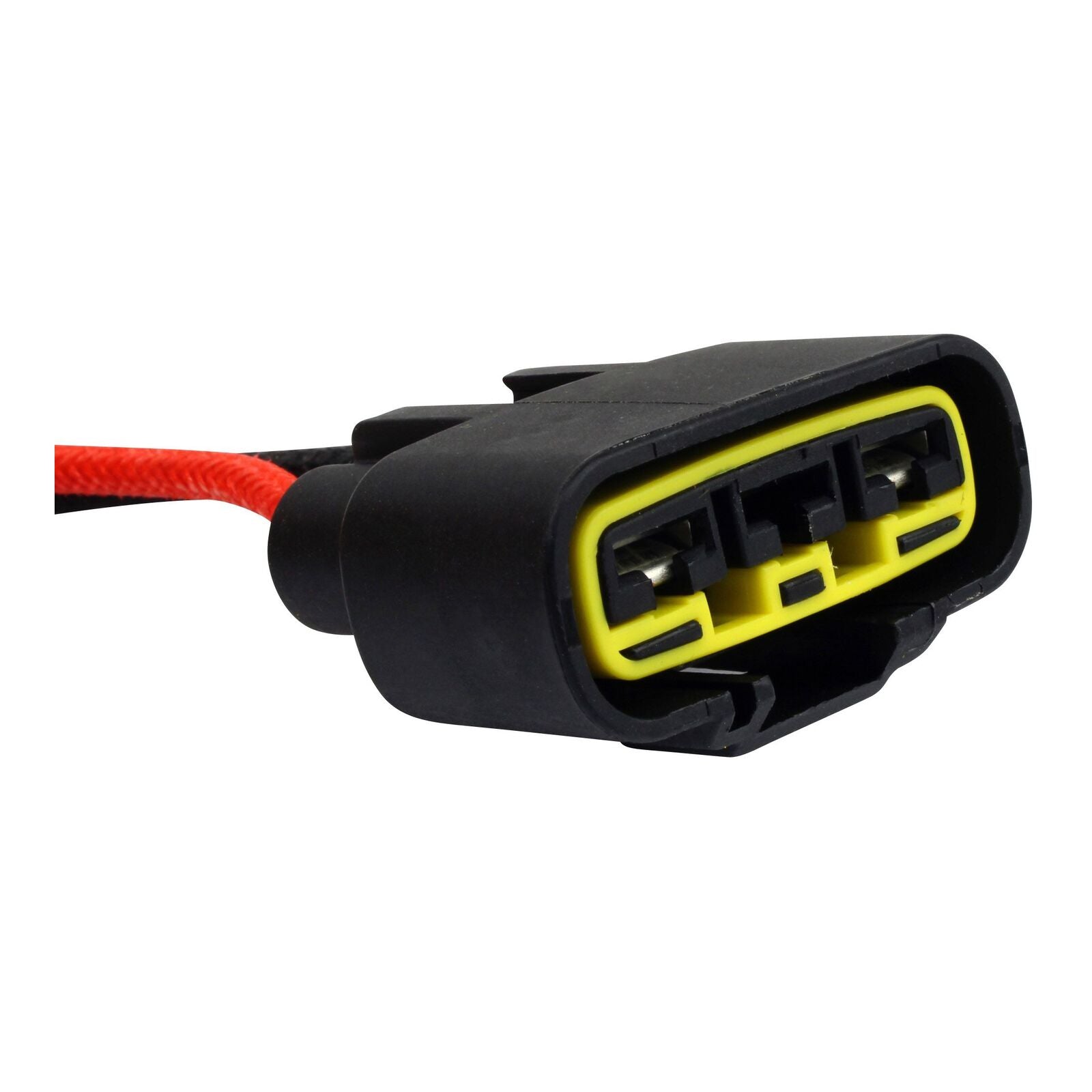

Voltage Regulator Bypass Harness
Specifications
- Number of yellow wires: 3
- Number of red wires: 1
- Number of black wires: 1
- Number of plugs: 3
