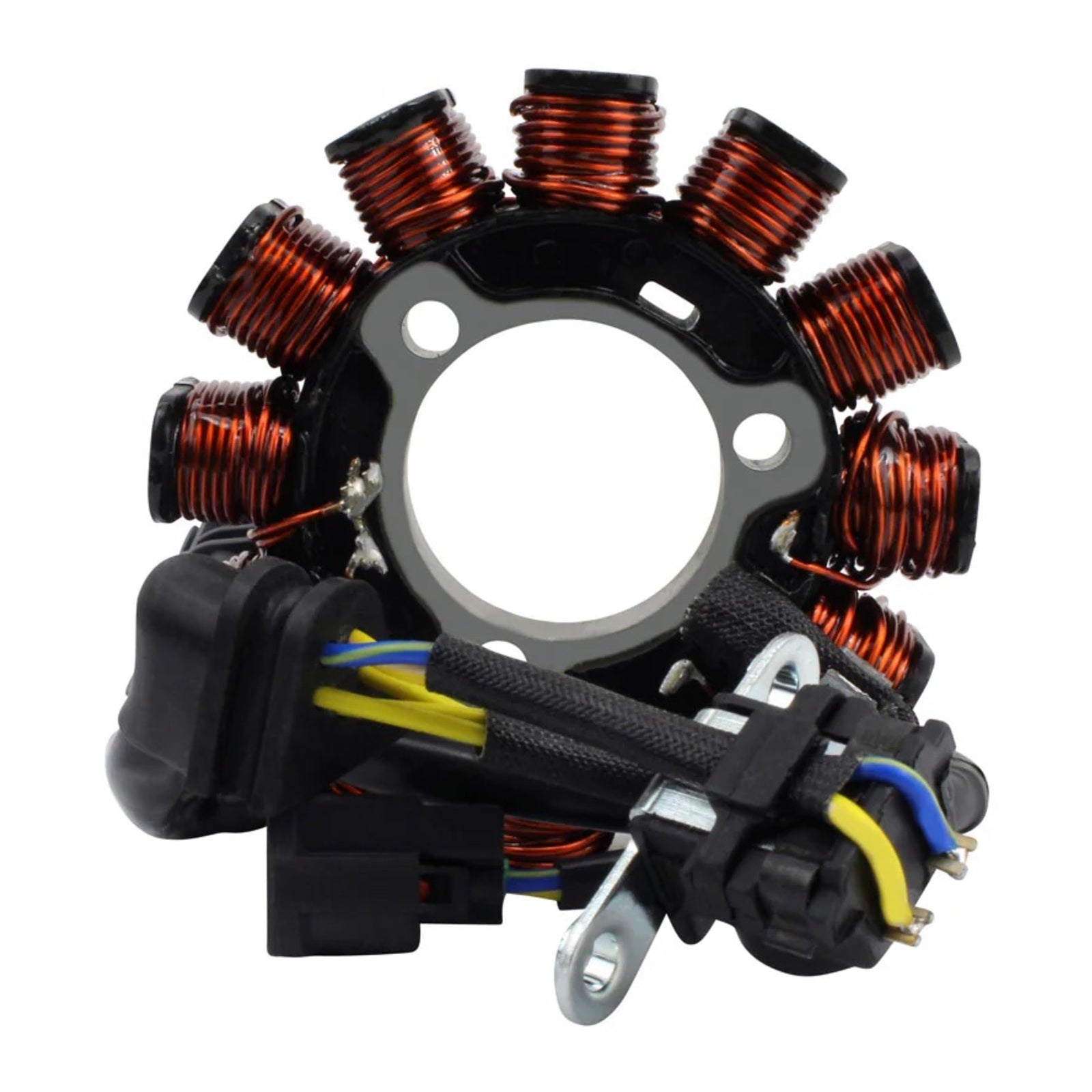

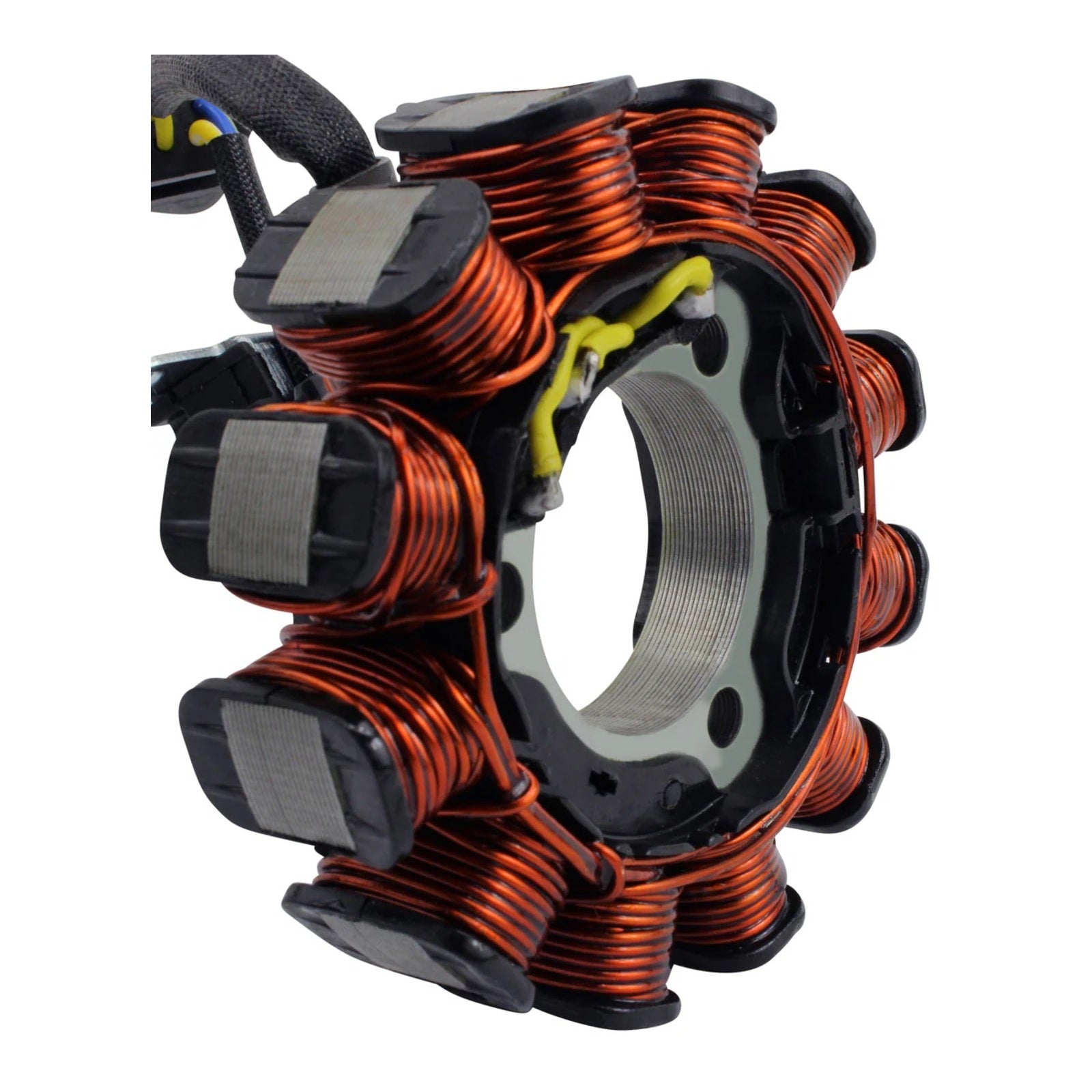

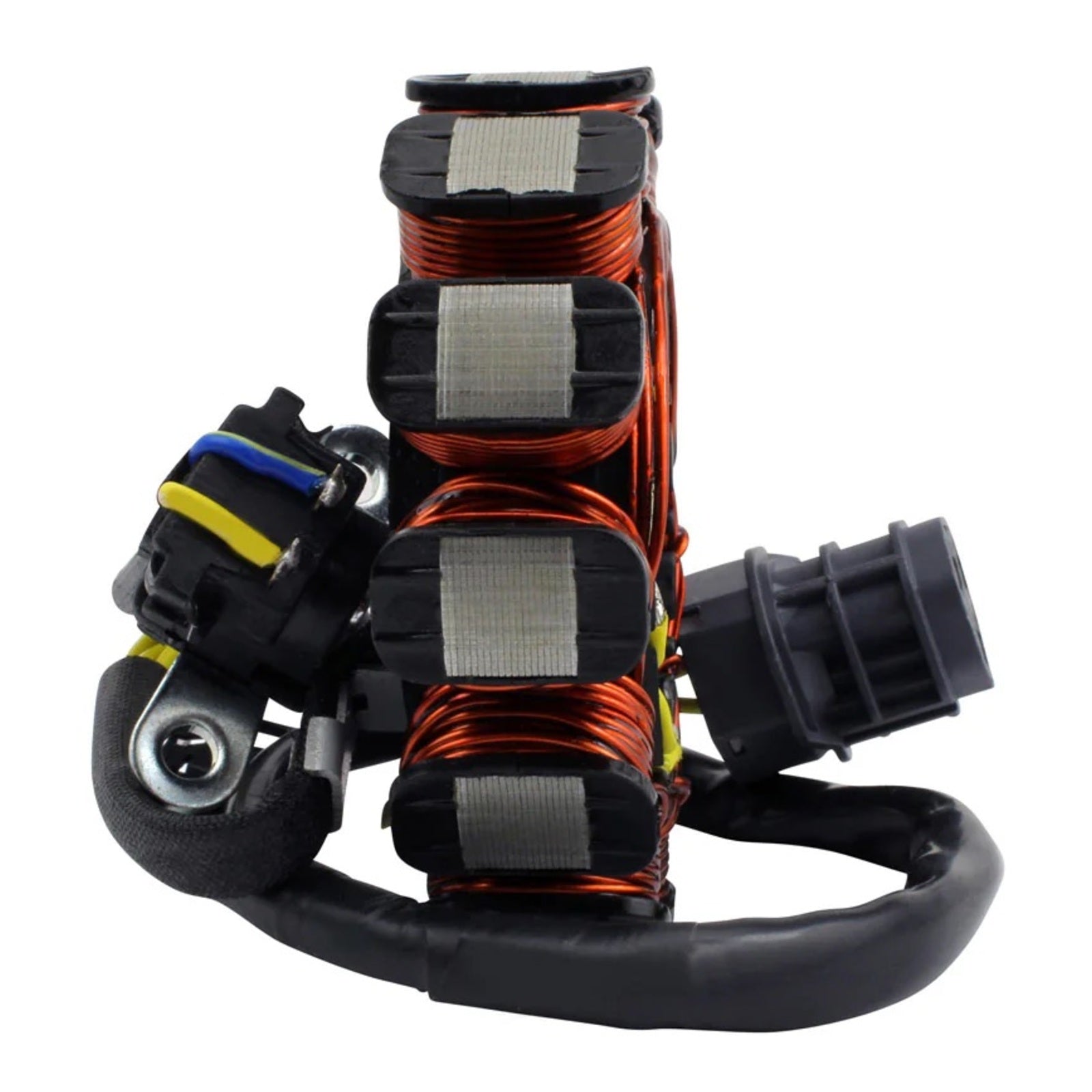

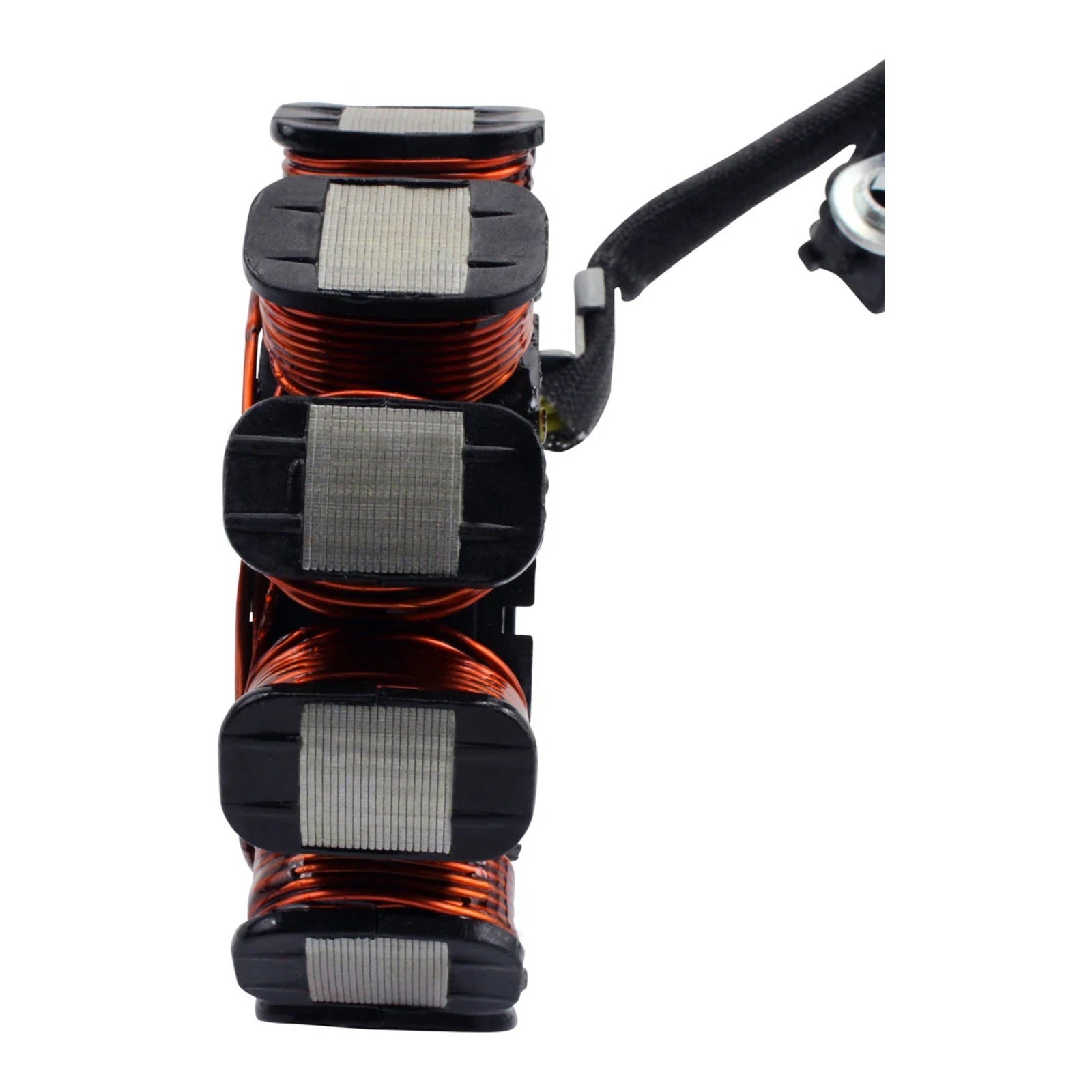

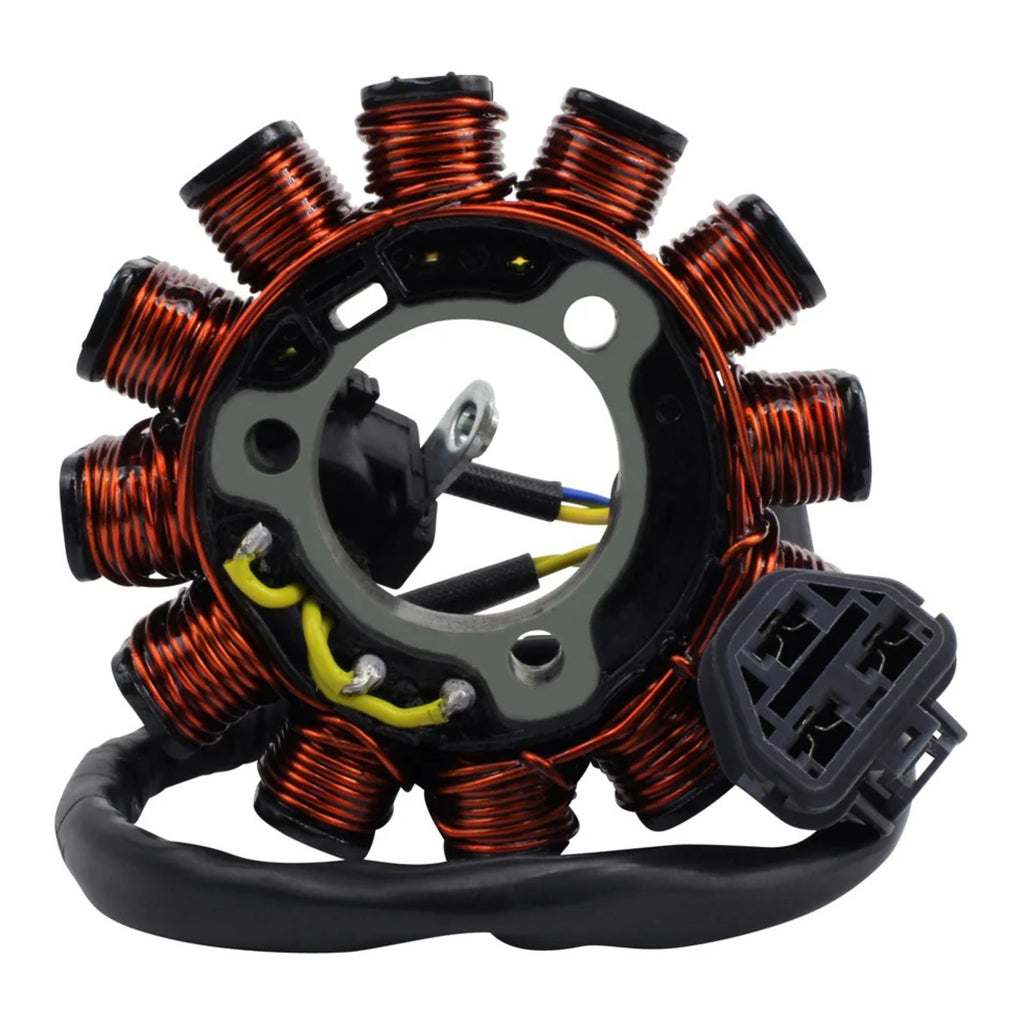

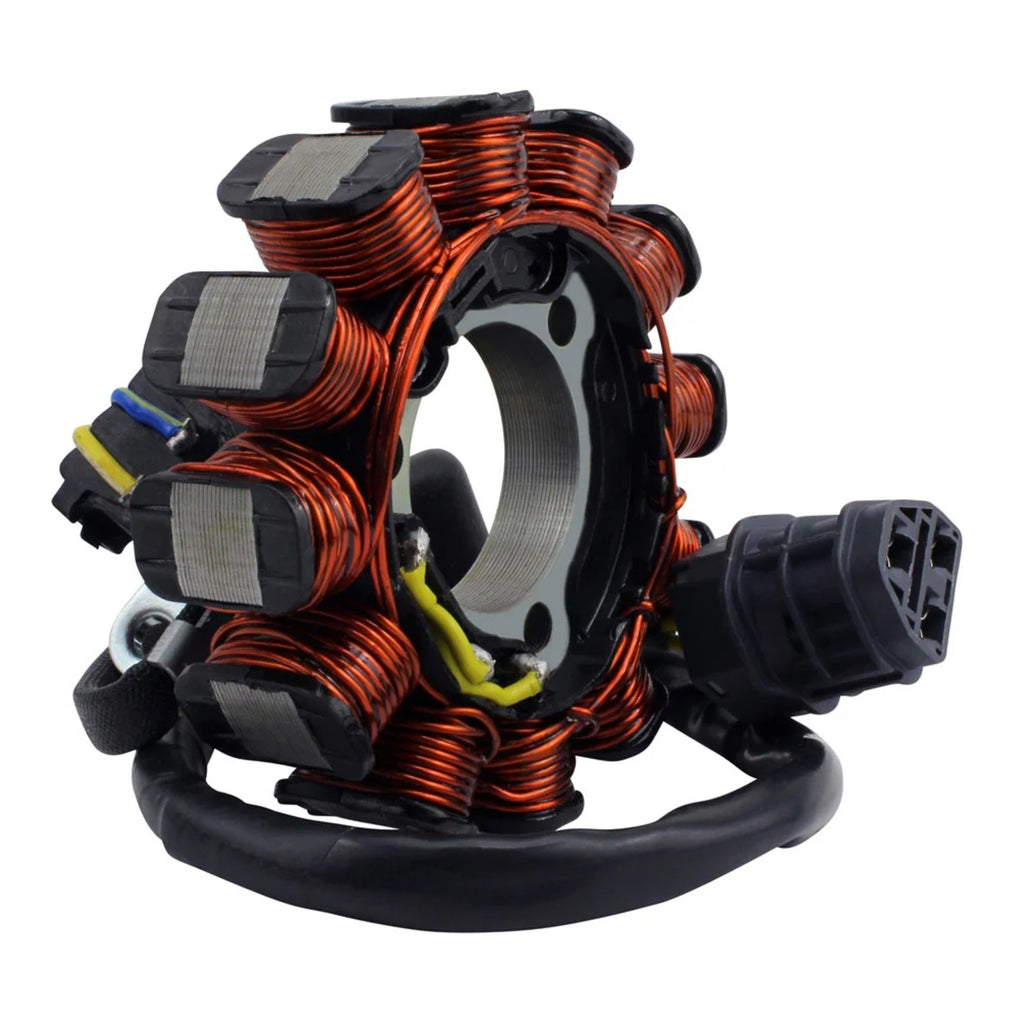

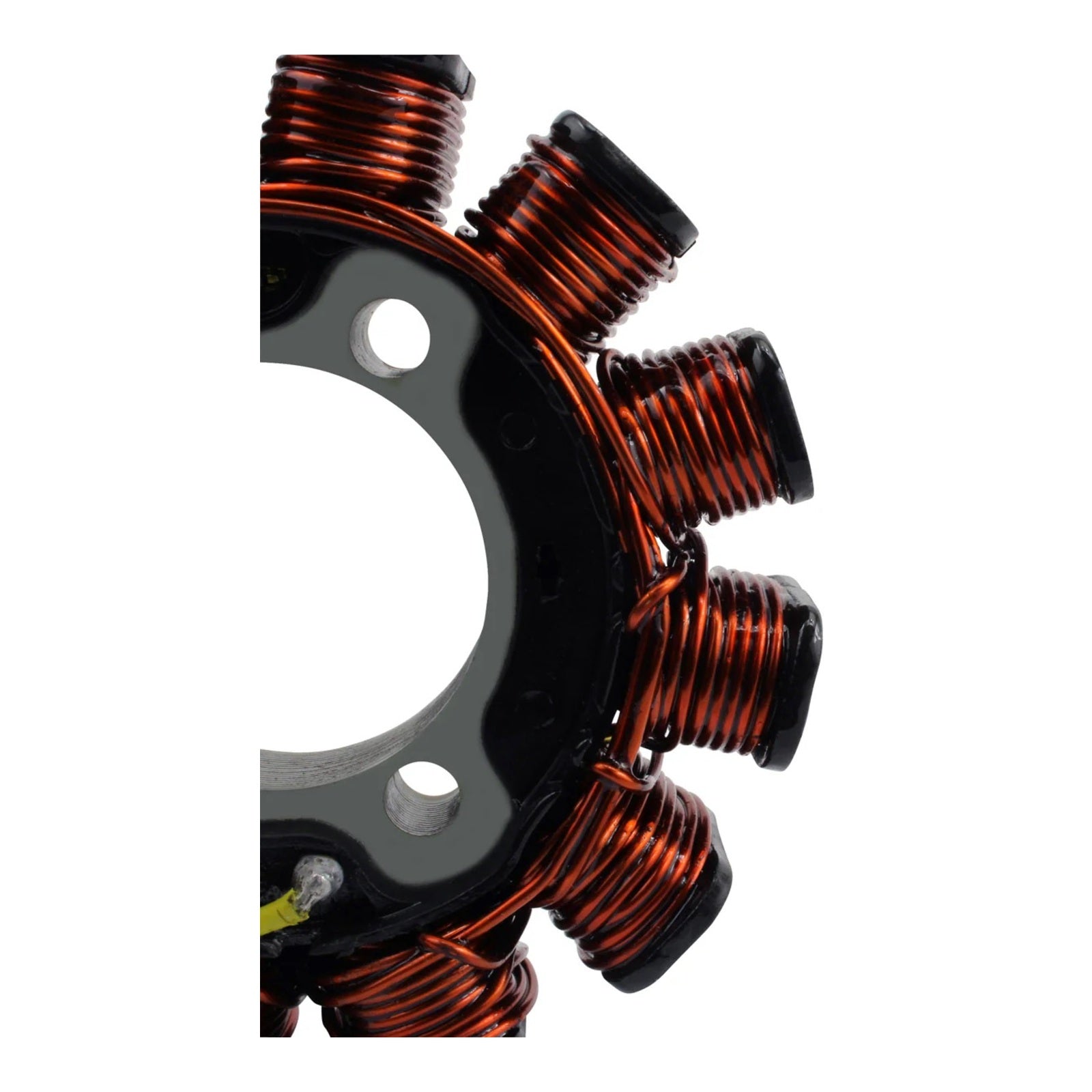

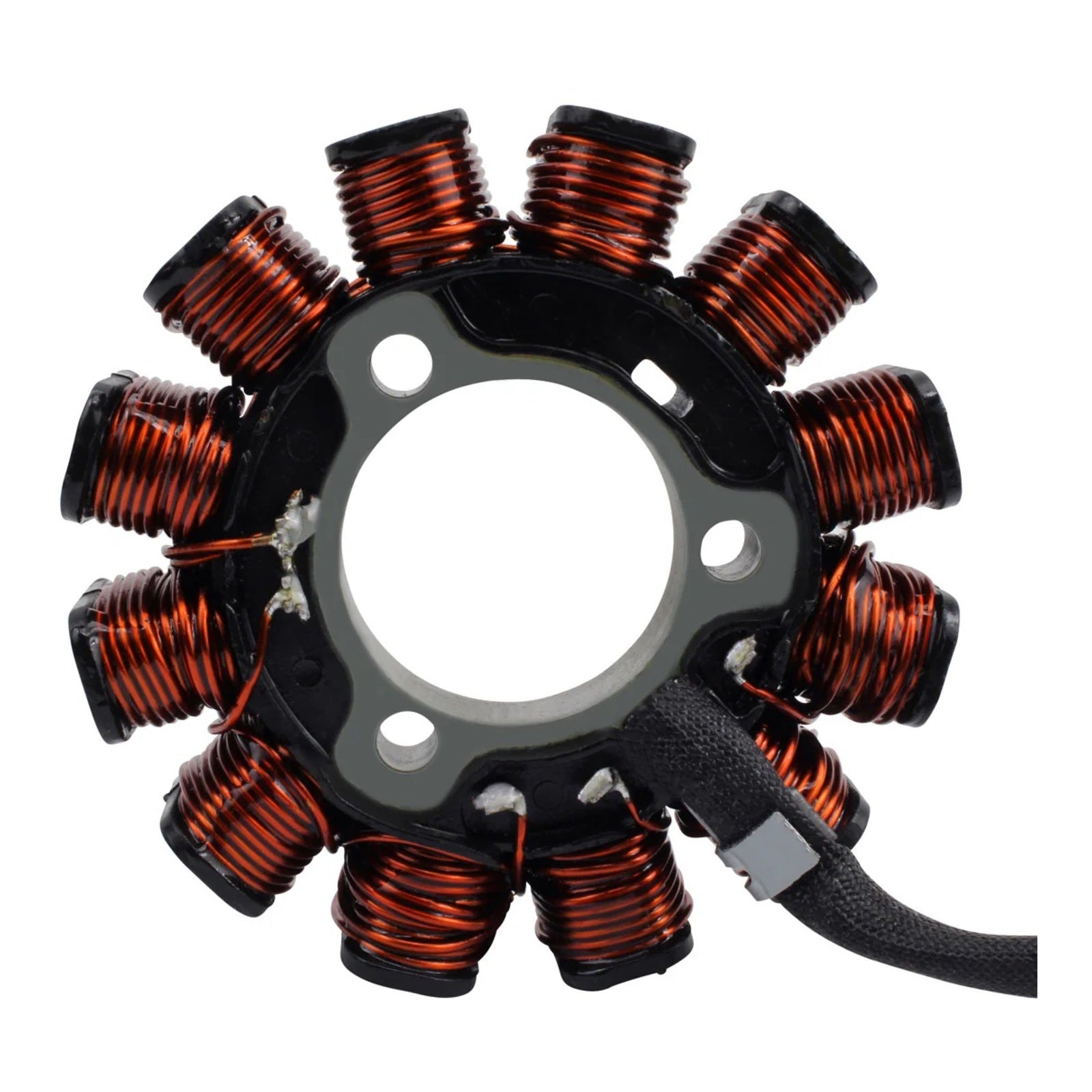

High Output 200W Stator Honda CRF450X / CRF450L / CRF450RL (RMS010-108786)

RMSTATORSKU: RMS010108786
No reviews

Price:
Sale price$395.99

In Store Availability

Stock in Store
Not in Store
Stock at Warehouse
Low Stock

Description

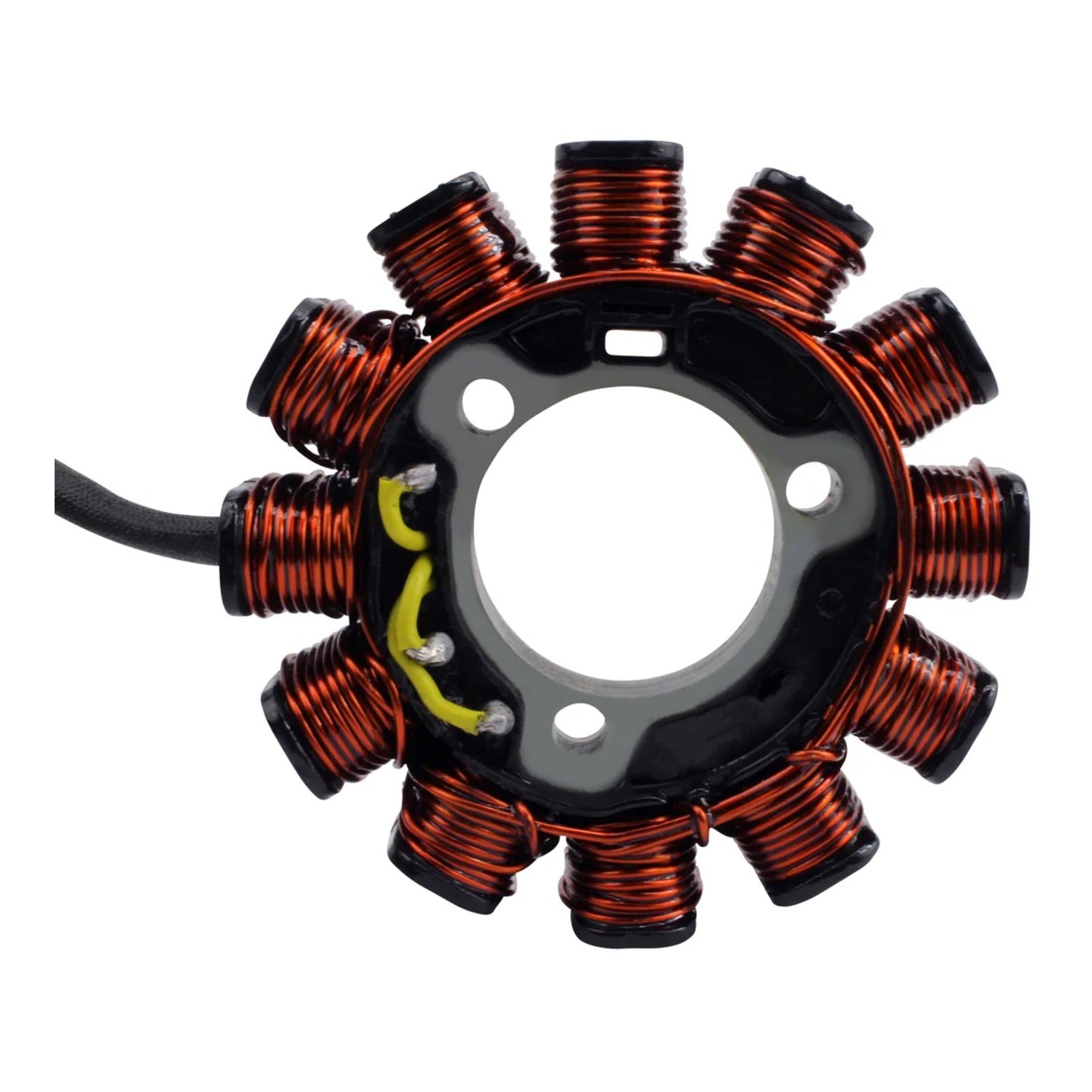

Brand new aftermarket high output stator 200W.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

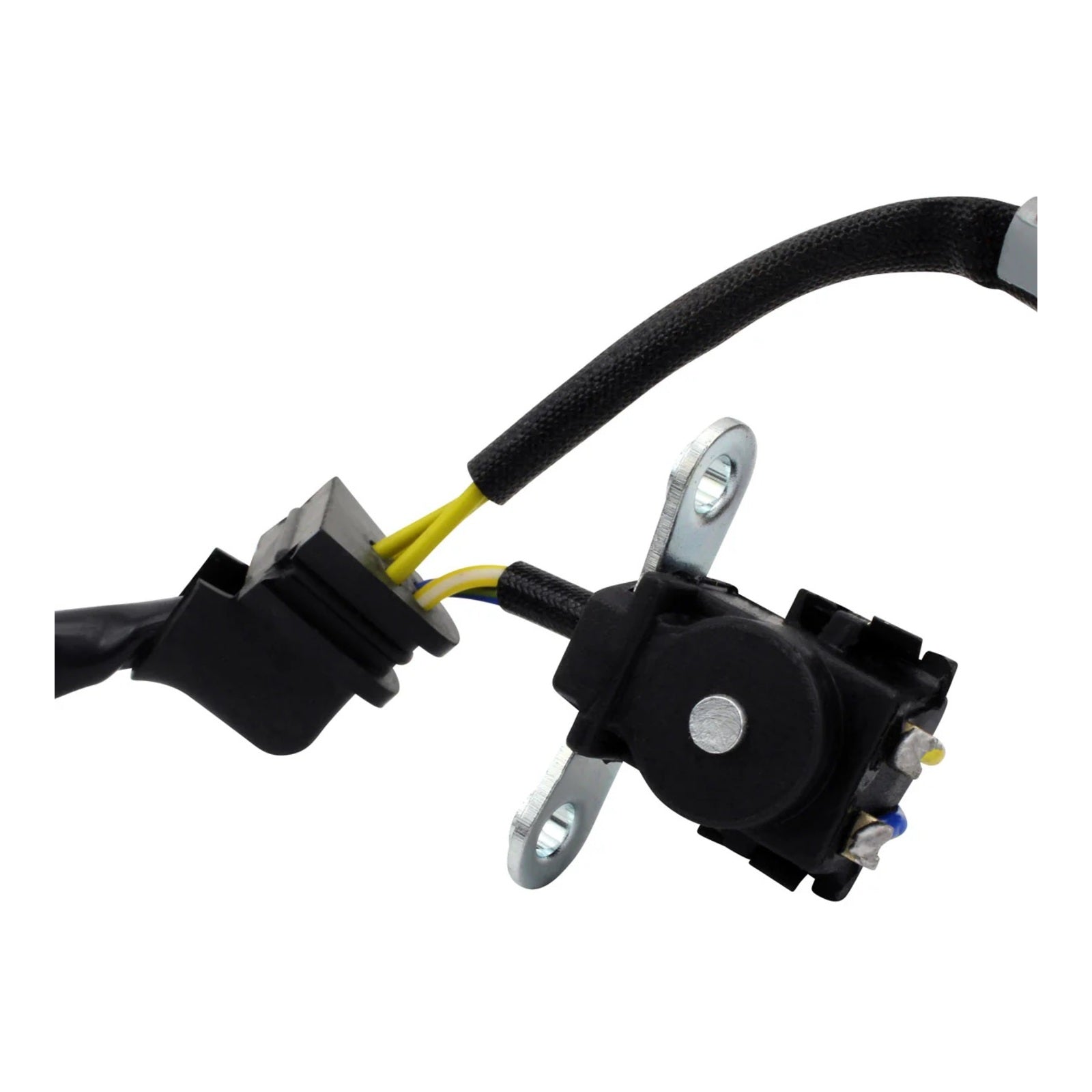

  • Pick up pulsar coil included

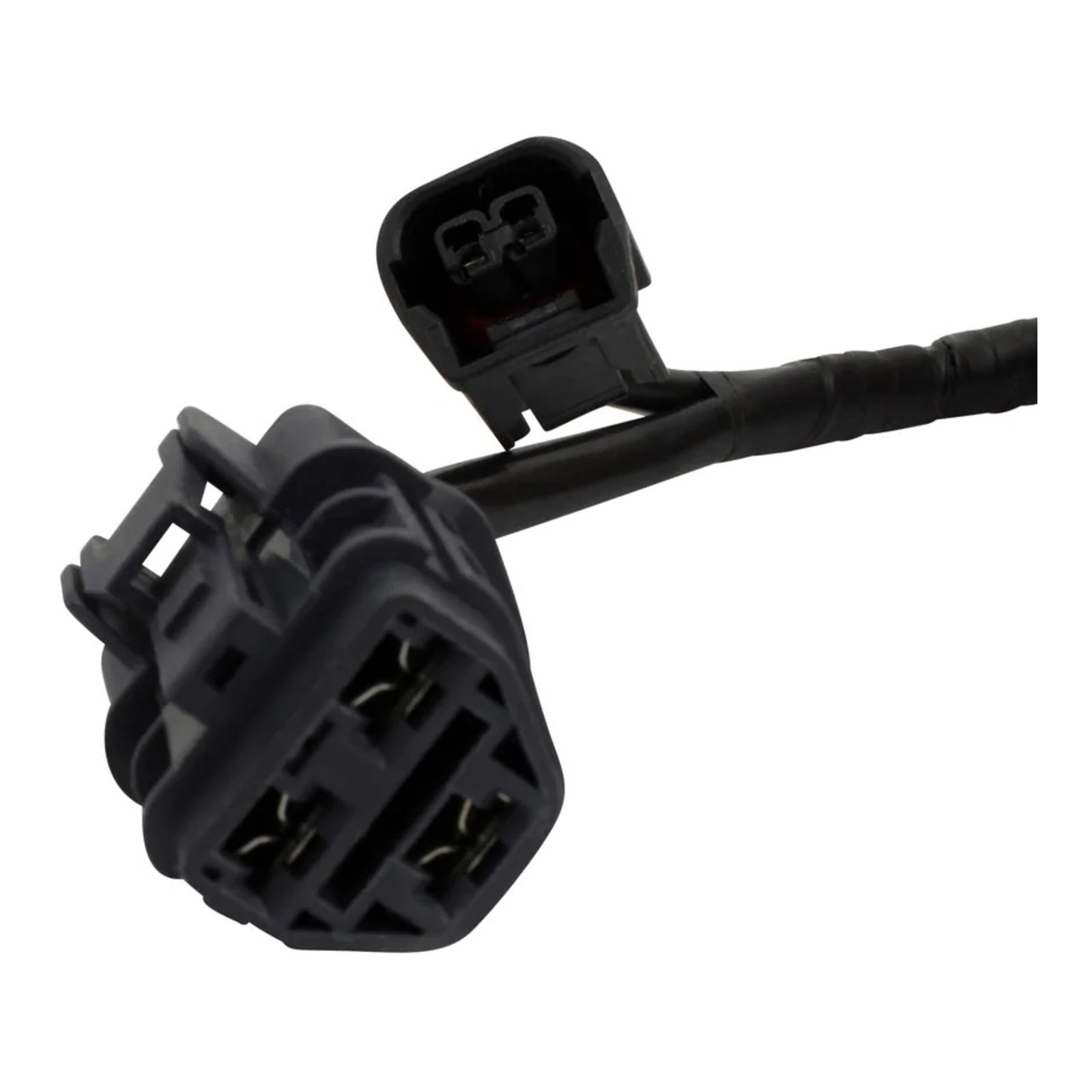

  • Connectors included

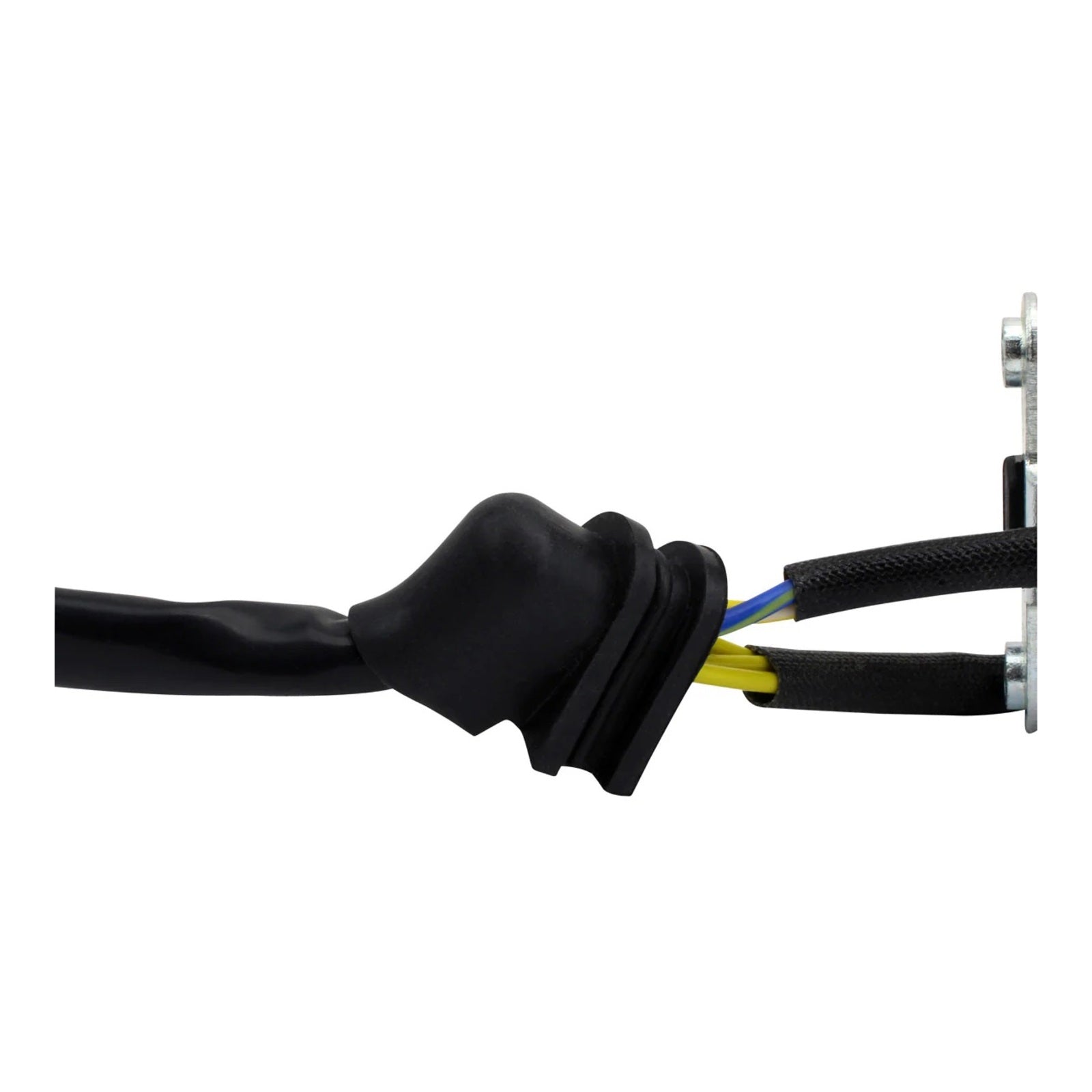

  • Rubber grommet included
  • All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new high output stator 200W:

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 89 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 250 mm and 310 mm
  • Length of pickup coil's wire to grommet: 45 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 12
  • Wire to wire resistance:
  • Alternator: Yellow to Yellow = 1.3 ohms +/-20%
  • Alternator: Yellow to ground = O.L
  • Pickup: Blue/Yellow to White/Yellow = 240 ohms +/-20%
