Description

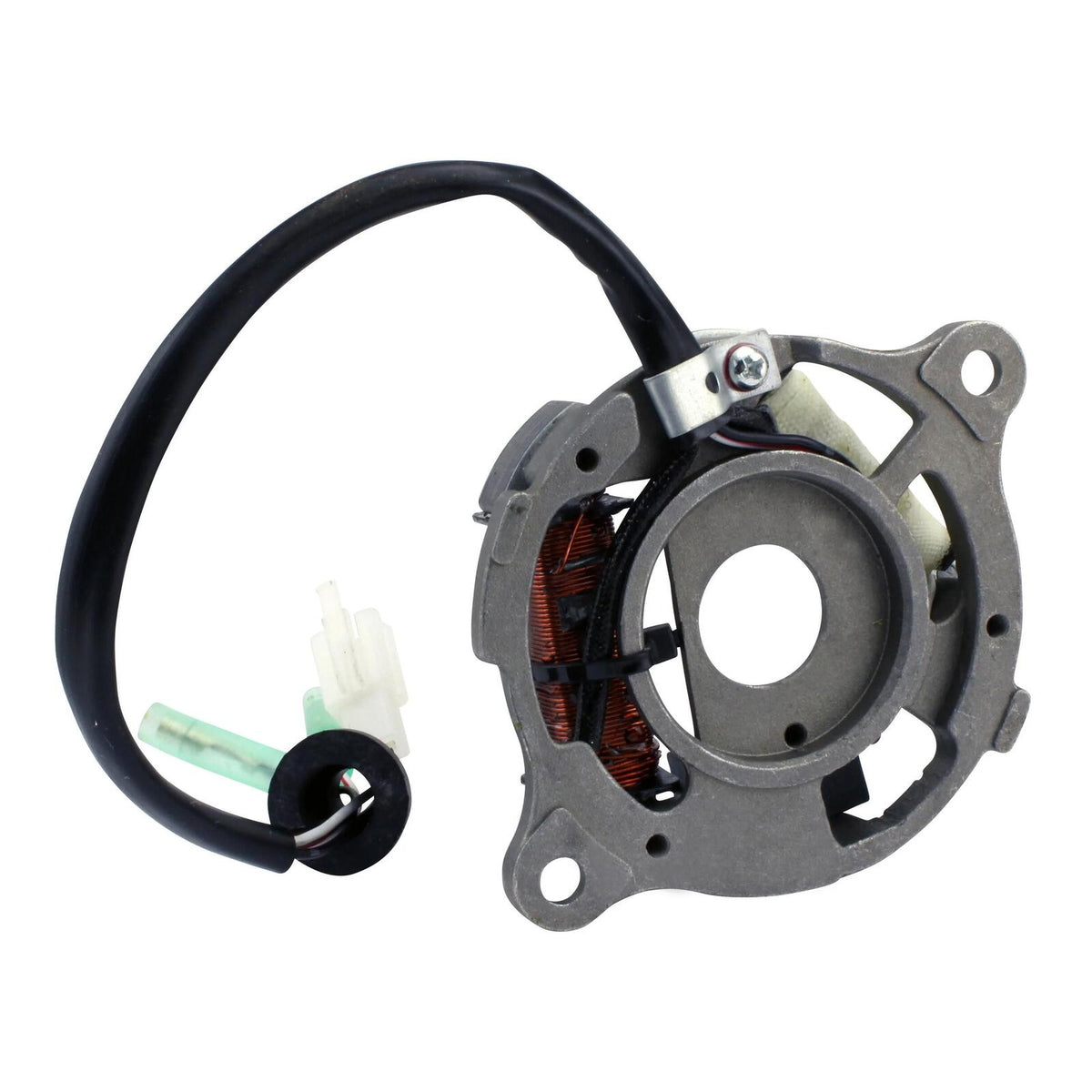

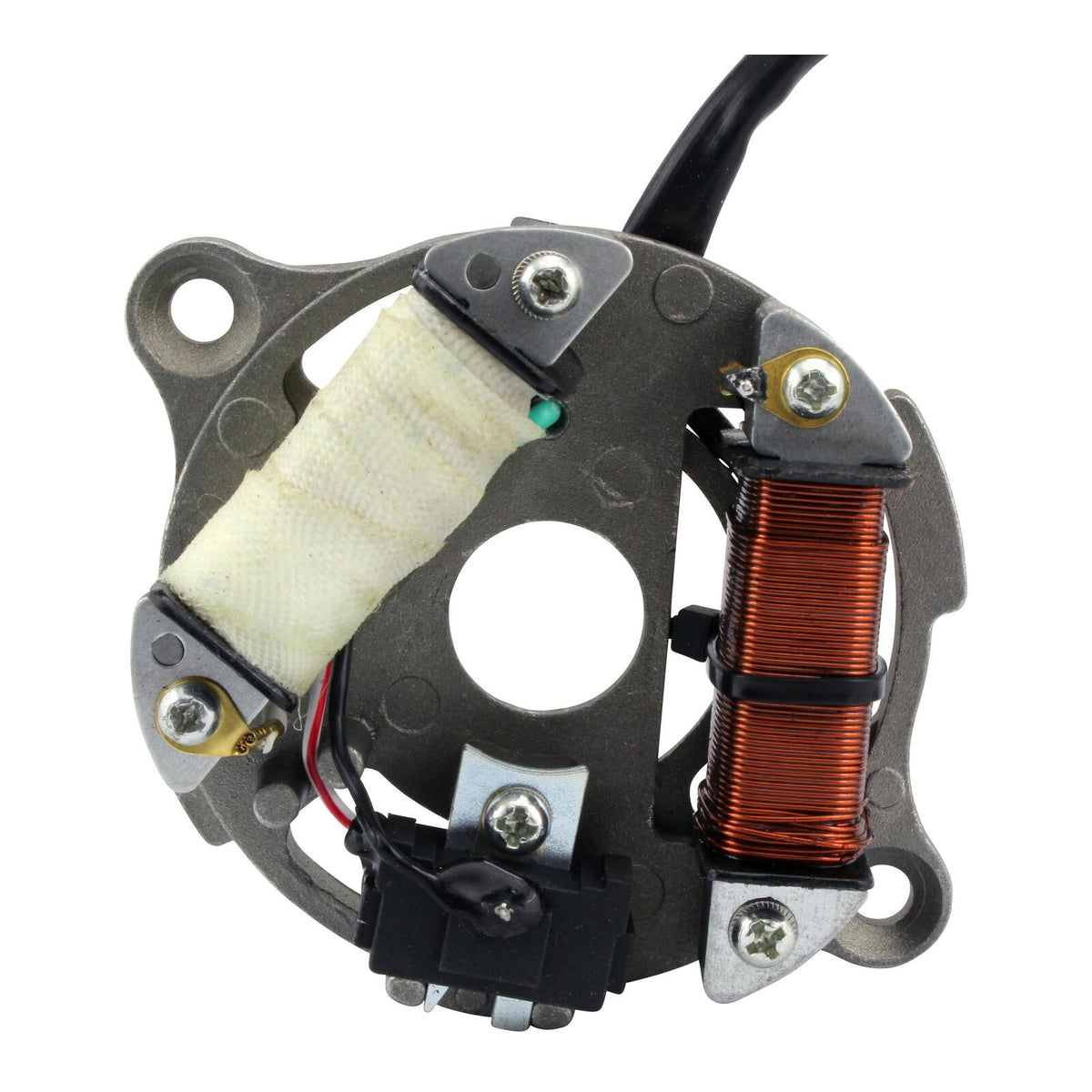

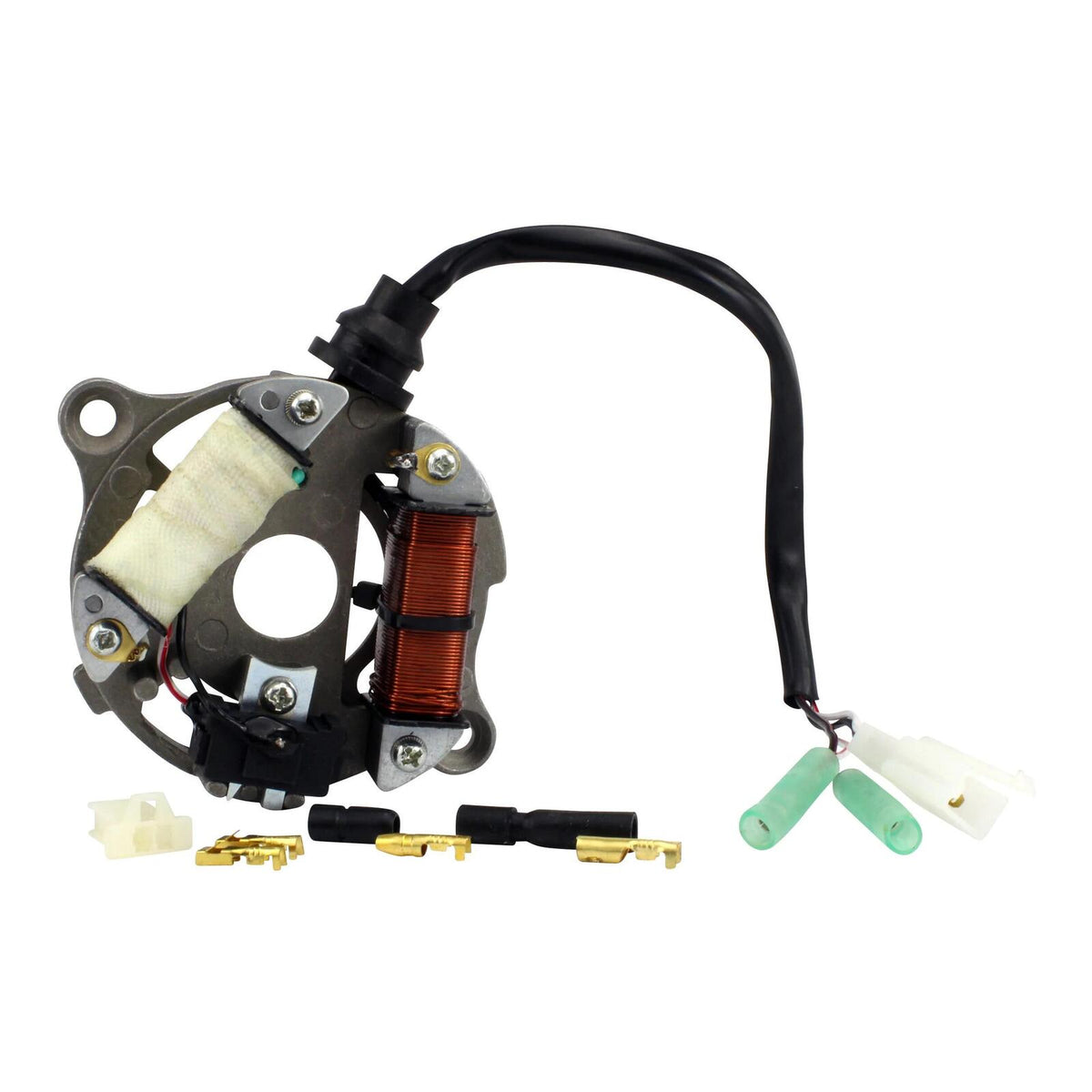

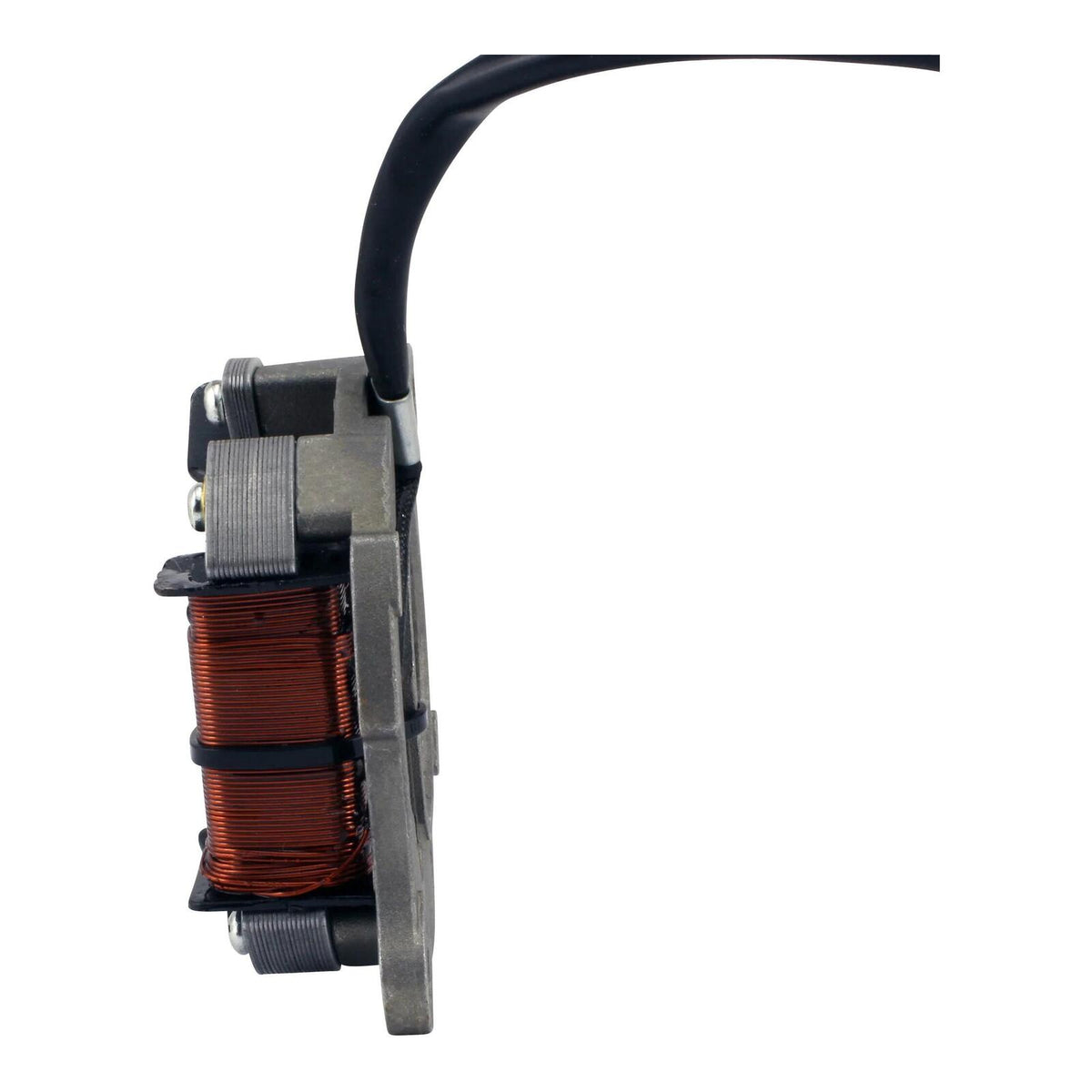

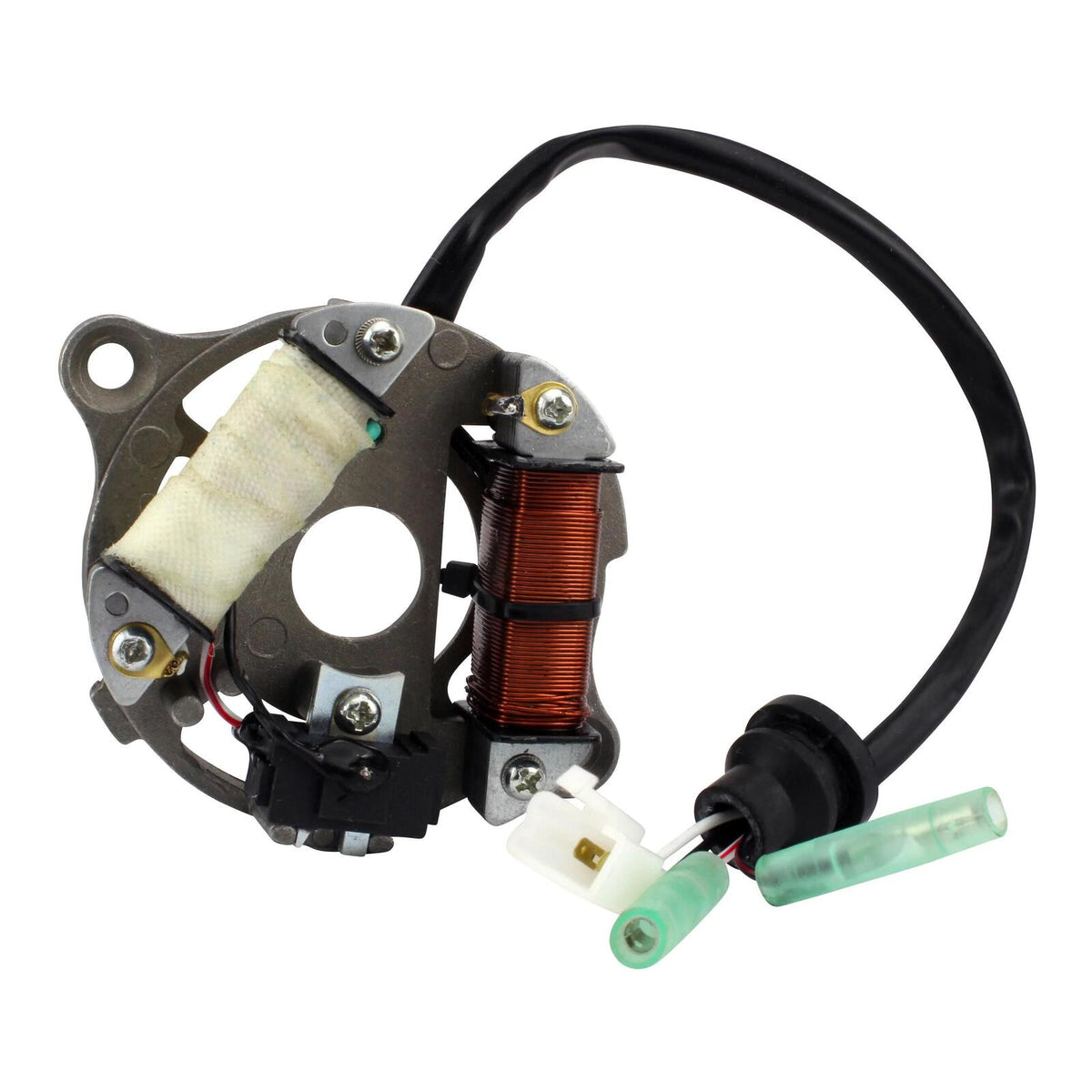

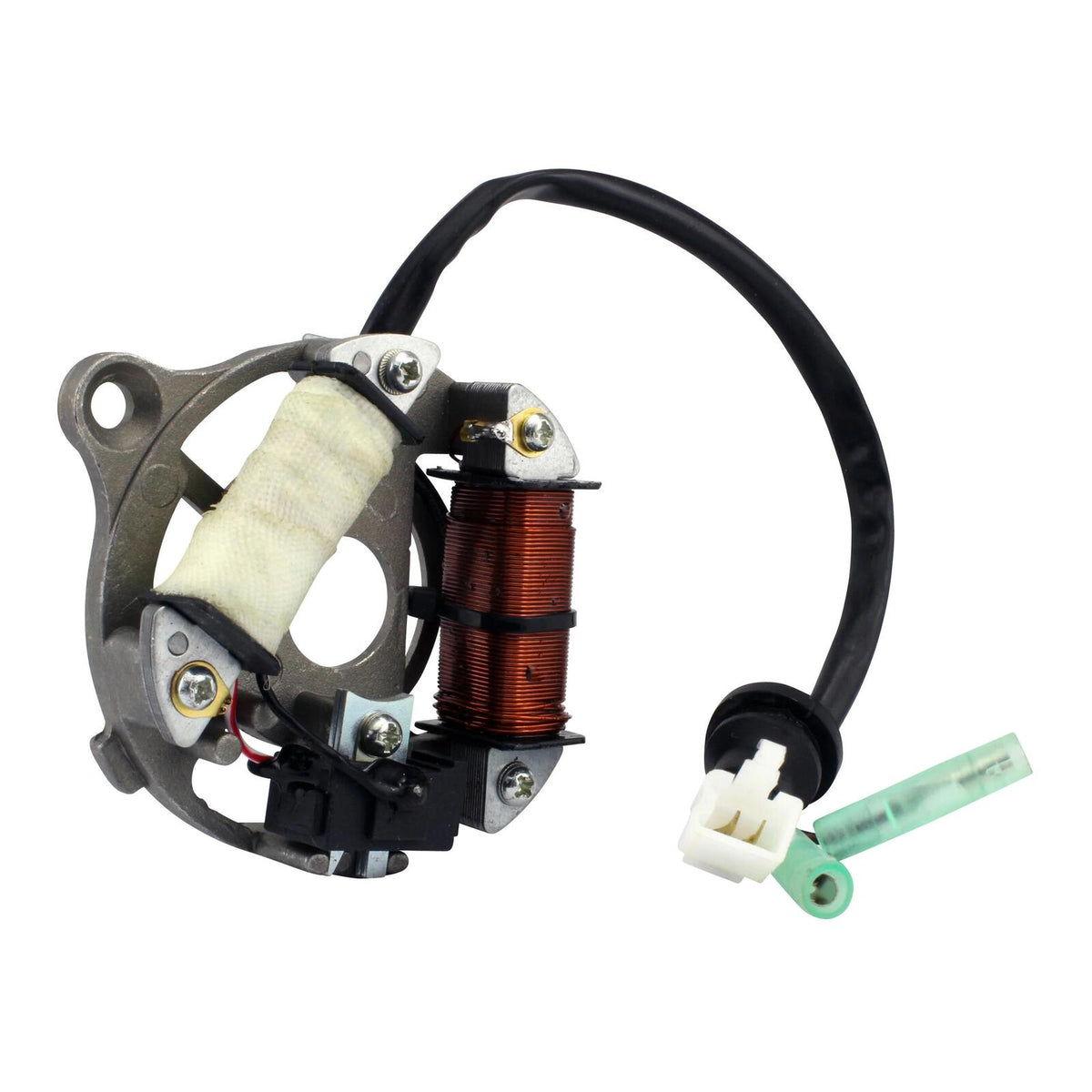

Brand new aftermarket stator designed as a direct replacement for the original unit. Manufactured using premium materials for reliable charging performance and long service life, this stator features high-grade copper windings, quality laminations, and comes complete with the pickup pulsar coil, connectors, rubber grommet, and back plate for straightforward installation.
Features:
- Direct replacement for the original stator.
- Plug-and-play design for easy installation.
- Manufactured using high-grade lamination materials.
- Premium copper windings rated to withstand temperatures up to 200°C.
- Pickup pulsar coil included.

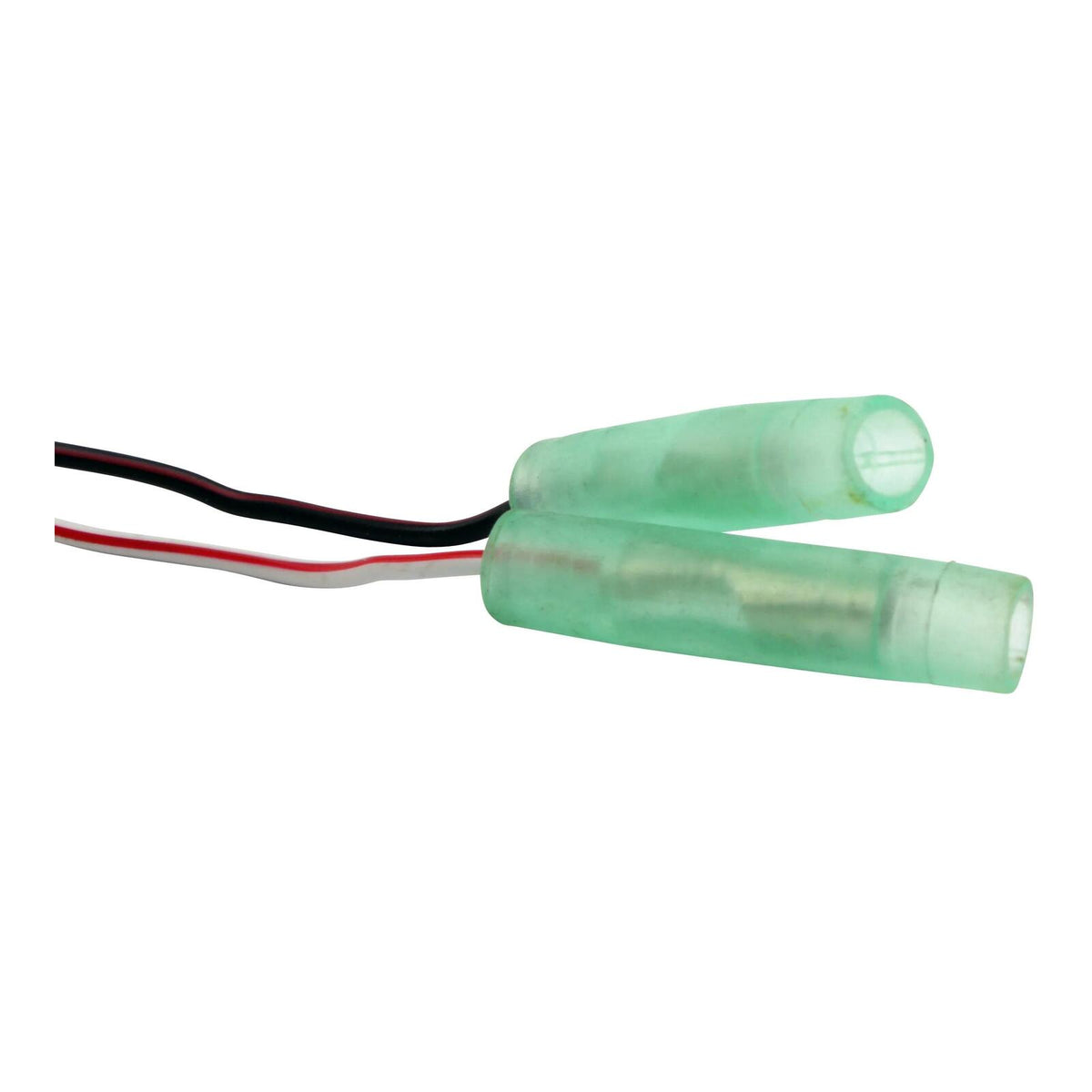

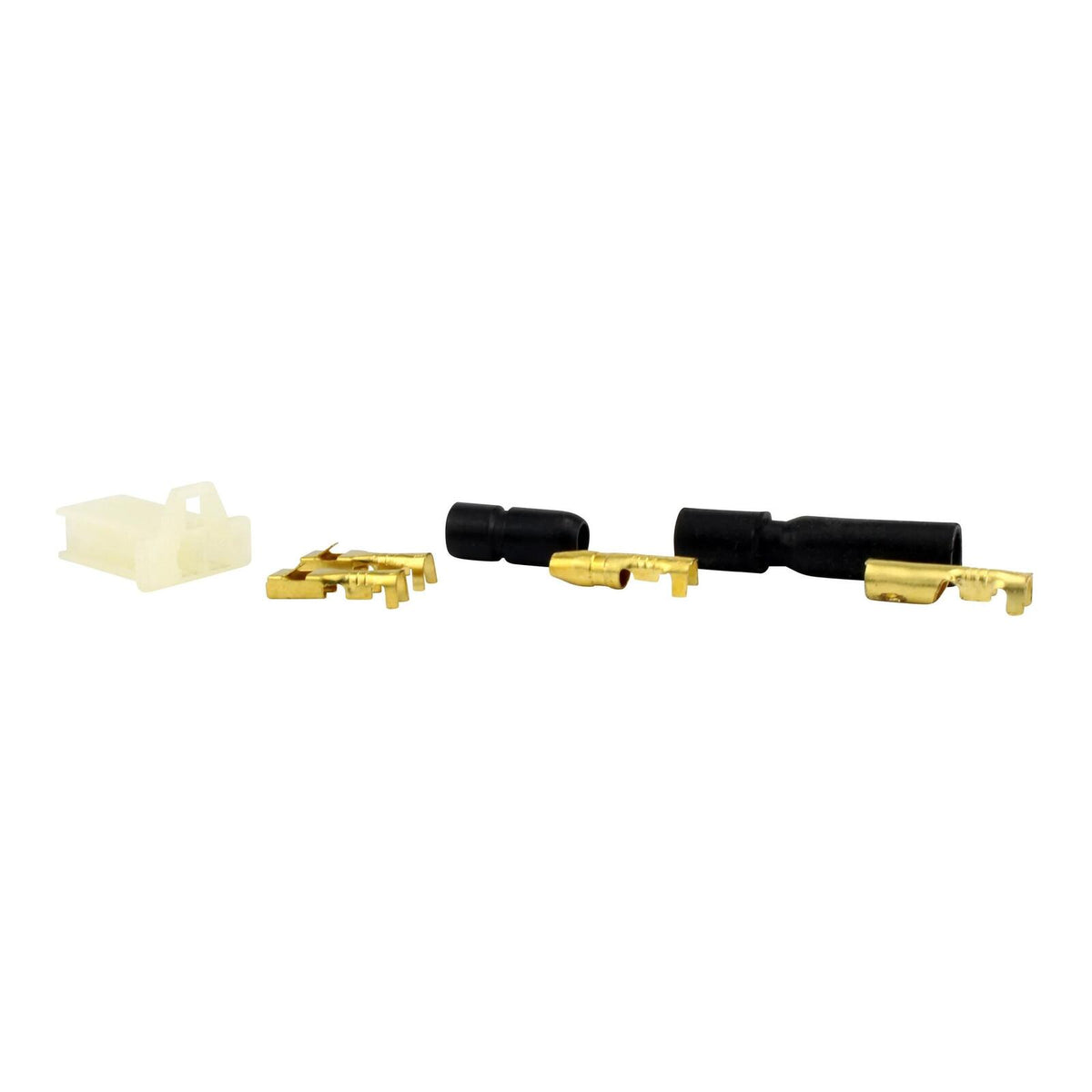

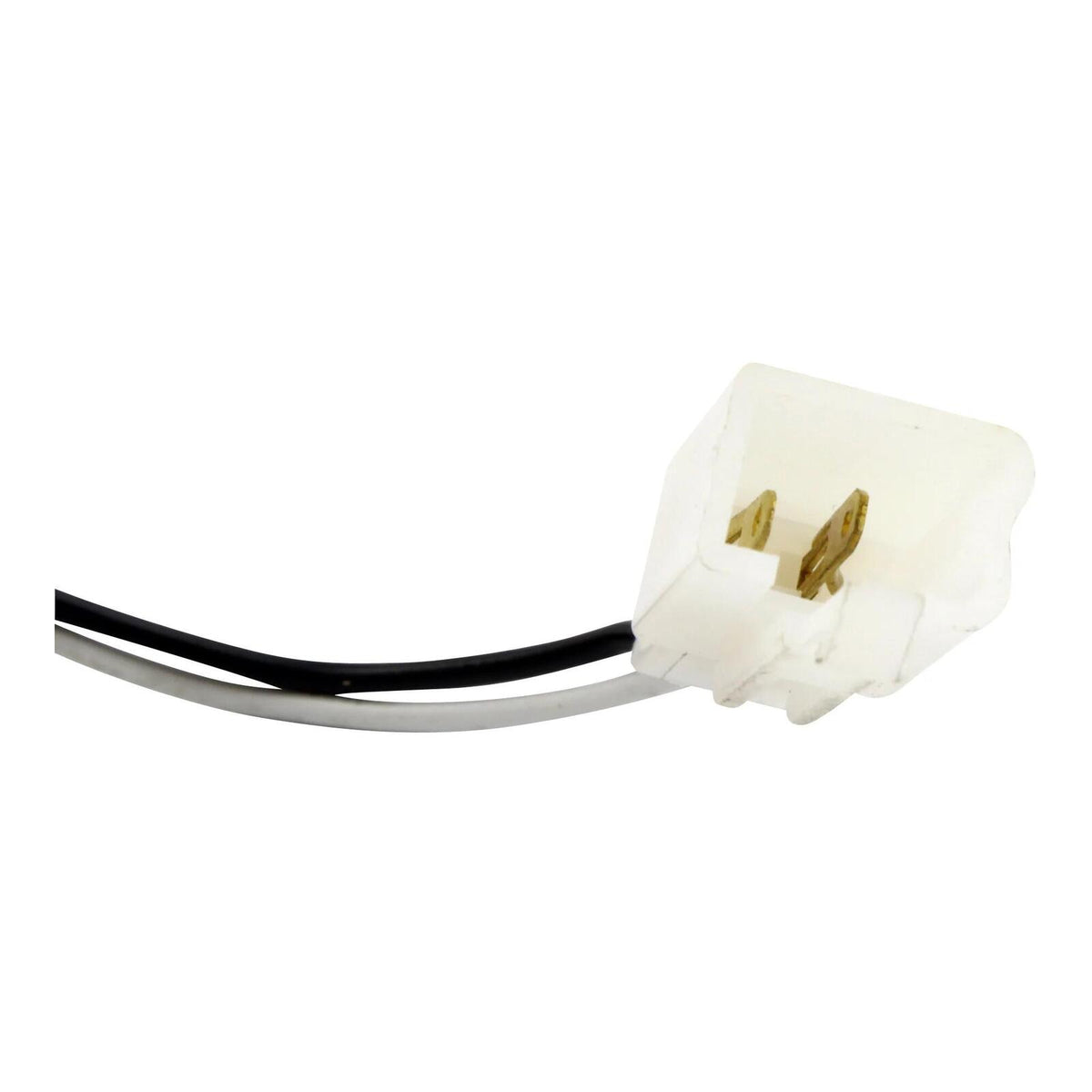

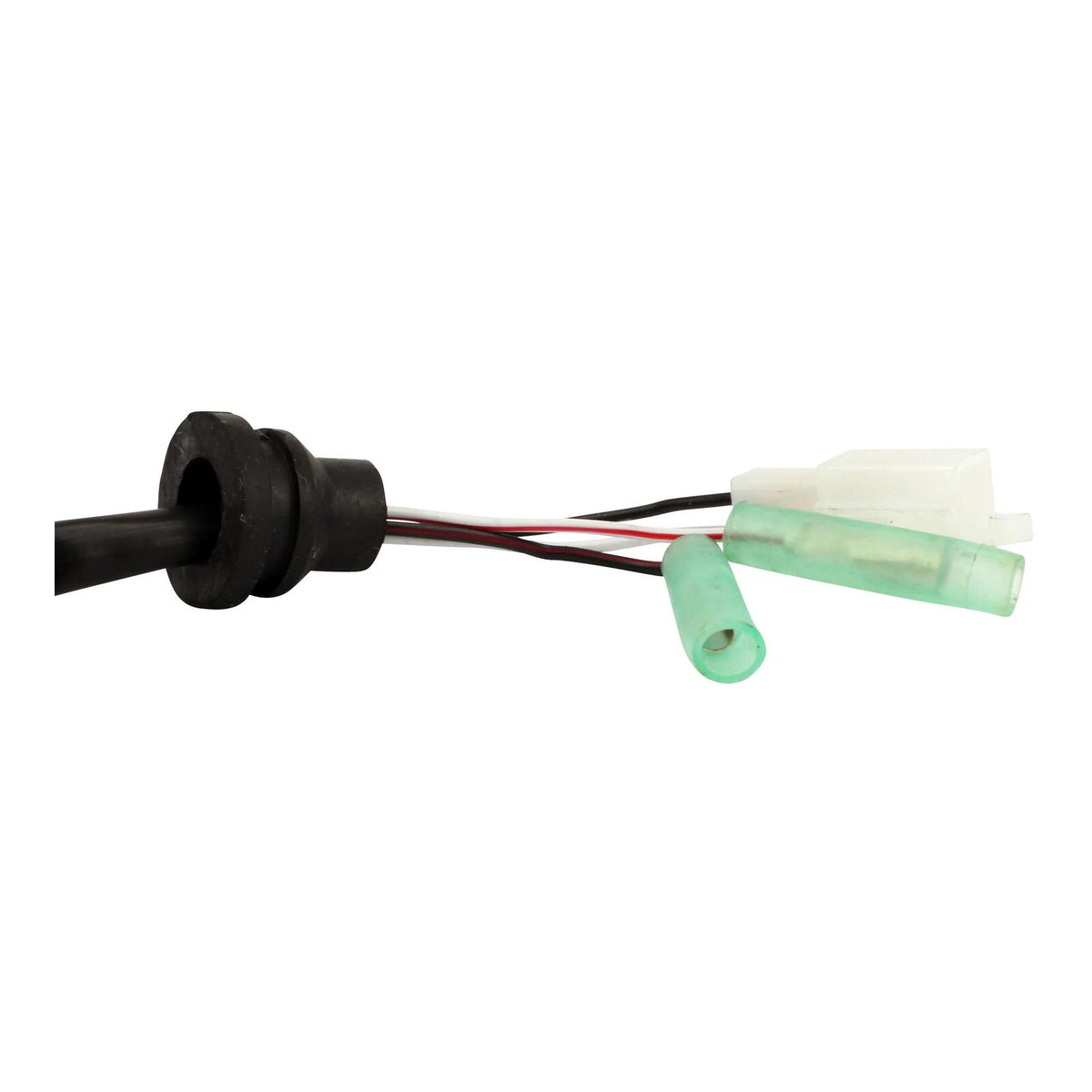

- Connectors included.
- Rubber grommet included.

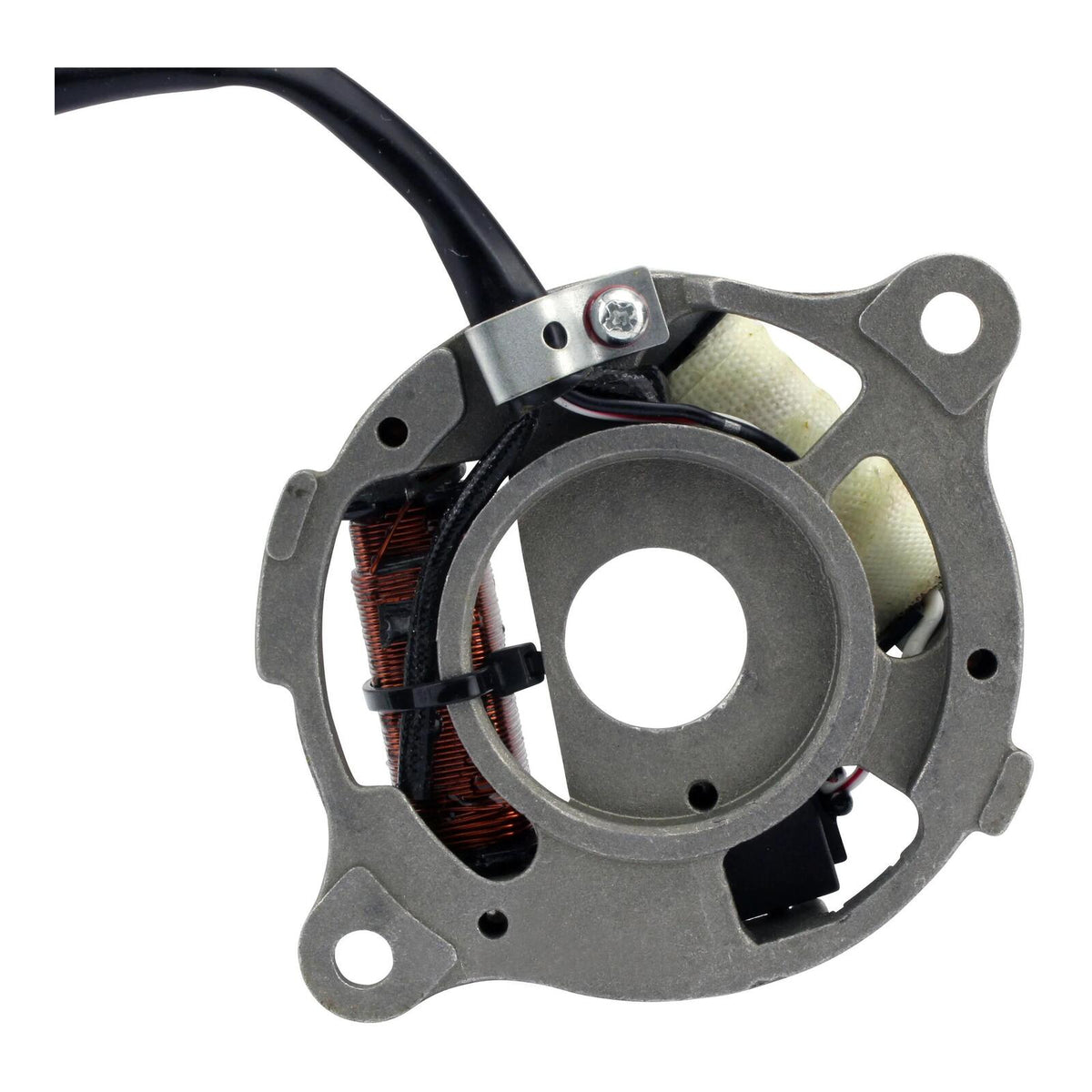

- Back plate included.
- Factory tested before shipping.
Dimensions:
- Interior Diameter: 20.4 mm / 40.8 mm
- Exterior Diameter: 89.3 mm / 111.6 mm
- Thickness: 31 mm
- Wire Length (Stator to Grommet): 40 mm
- Wire Length (Grommet to Plug): 160 mm
Specifications:
- Number of Wires: 4
- Number of Plugs: 3
- Number of Pins: 4
- Number of Coils: 3
- Alternator Resistance (White to Ground): 0.5 Ω ±20%
- Pickup Resistance (White/Red to Ground): 20.1 Ω ±20%
- Source Resistance (Black/Red to Ground): 302.6 Ω ±20%
