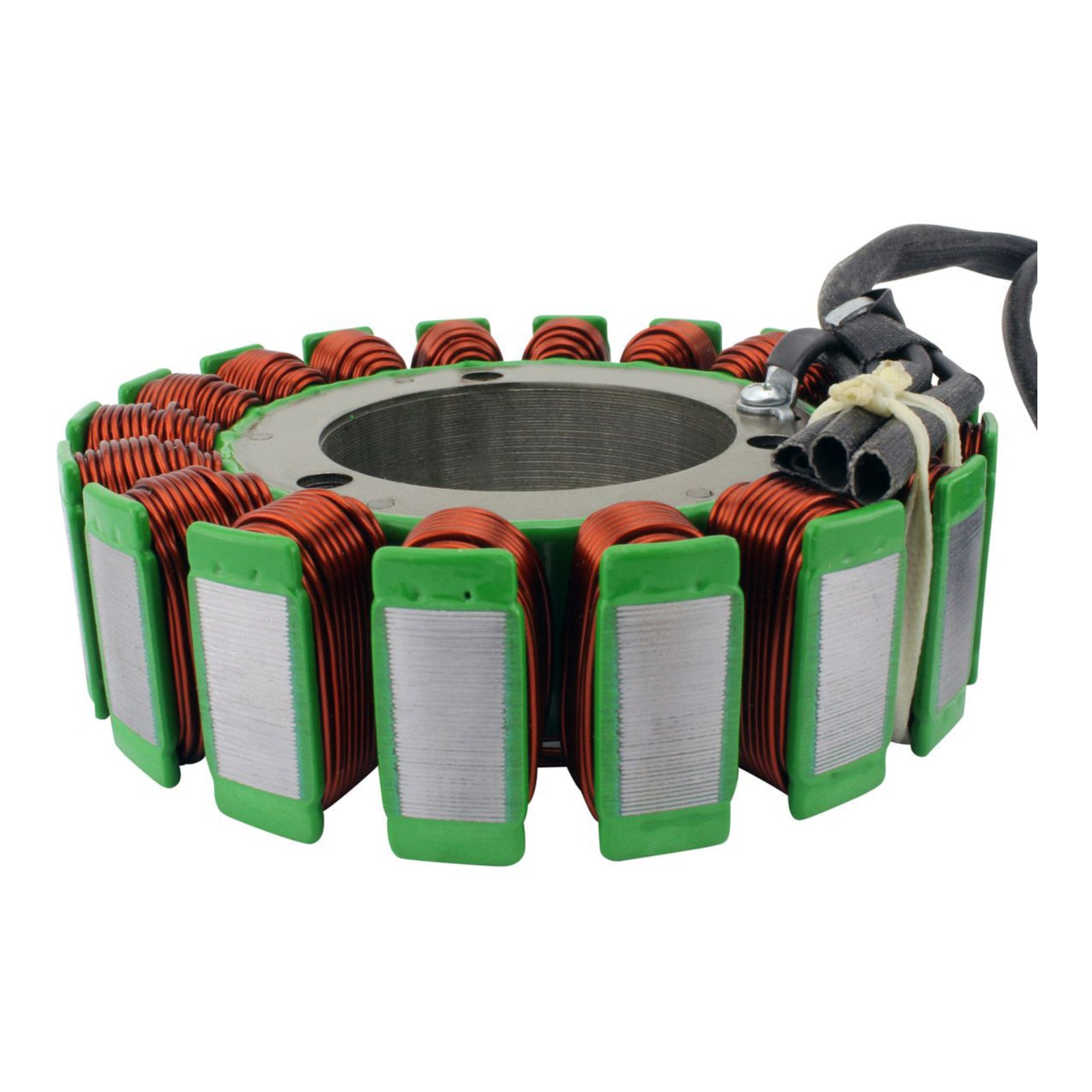

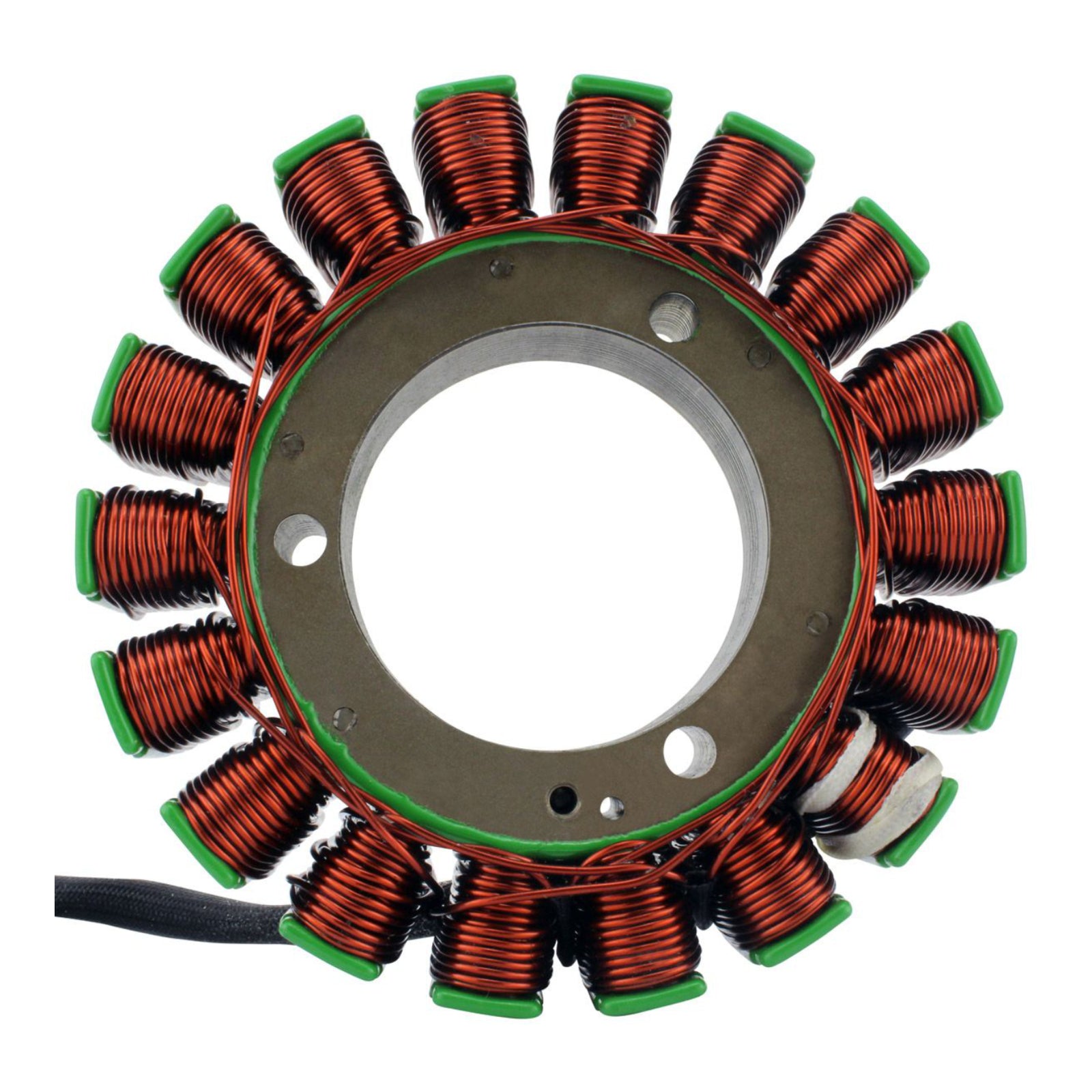

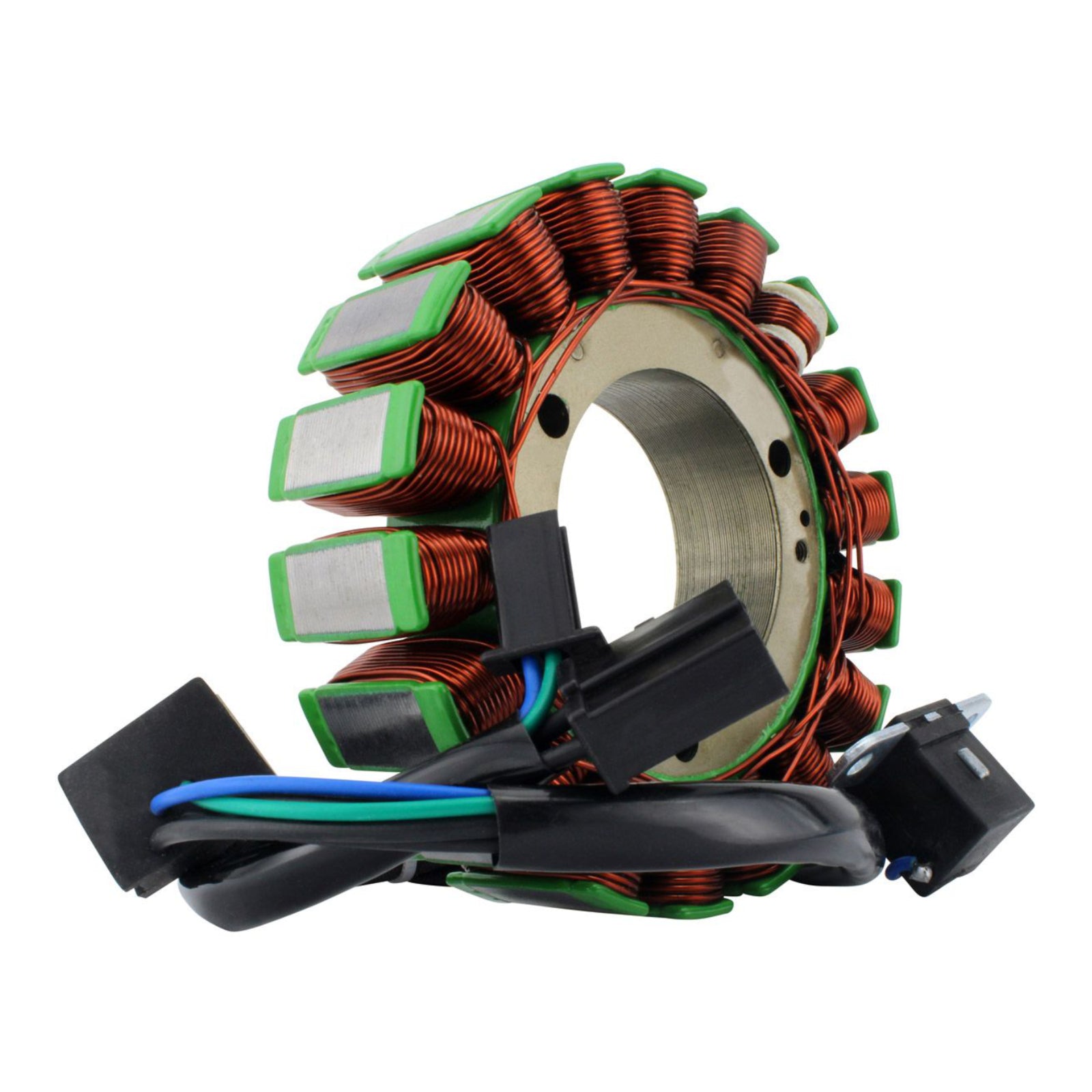

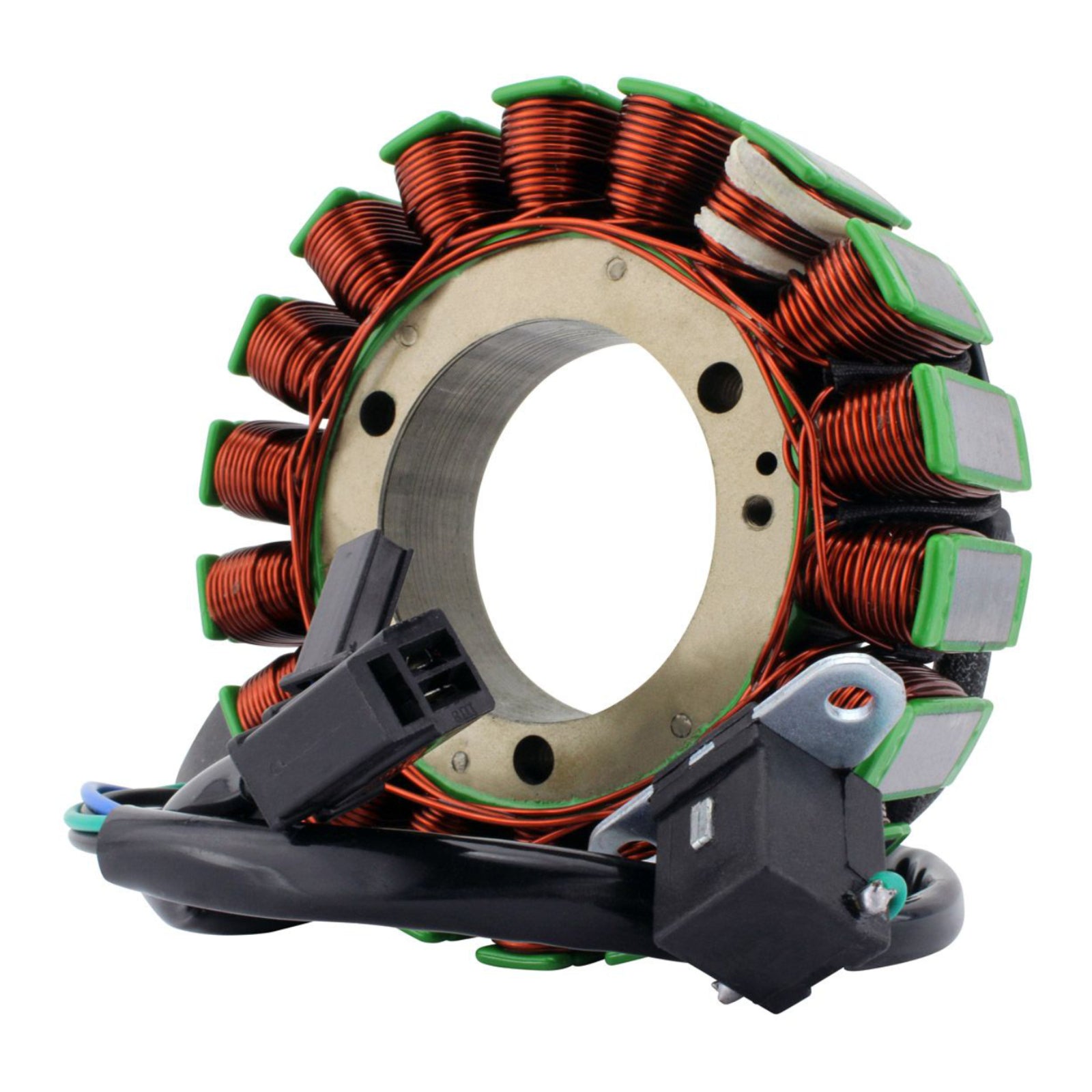

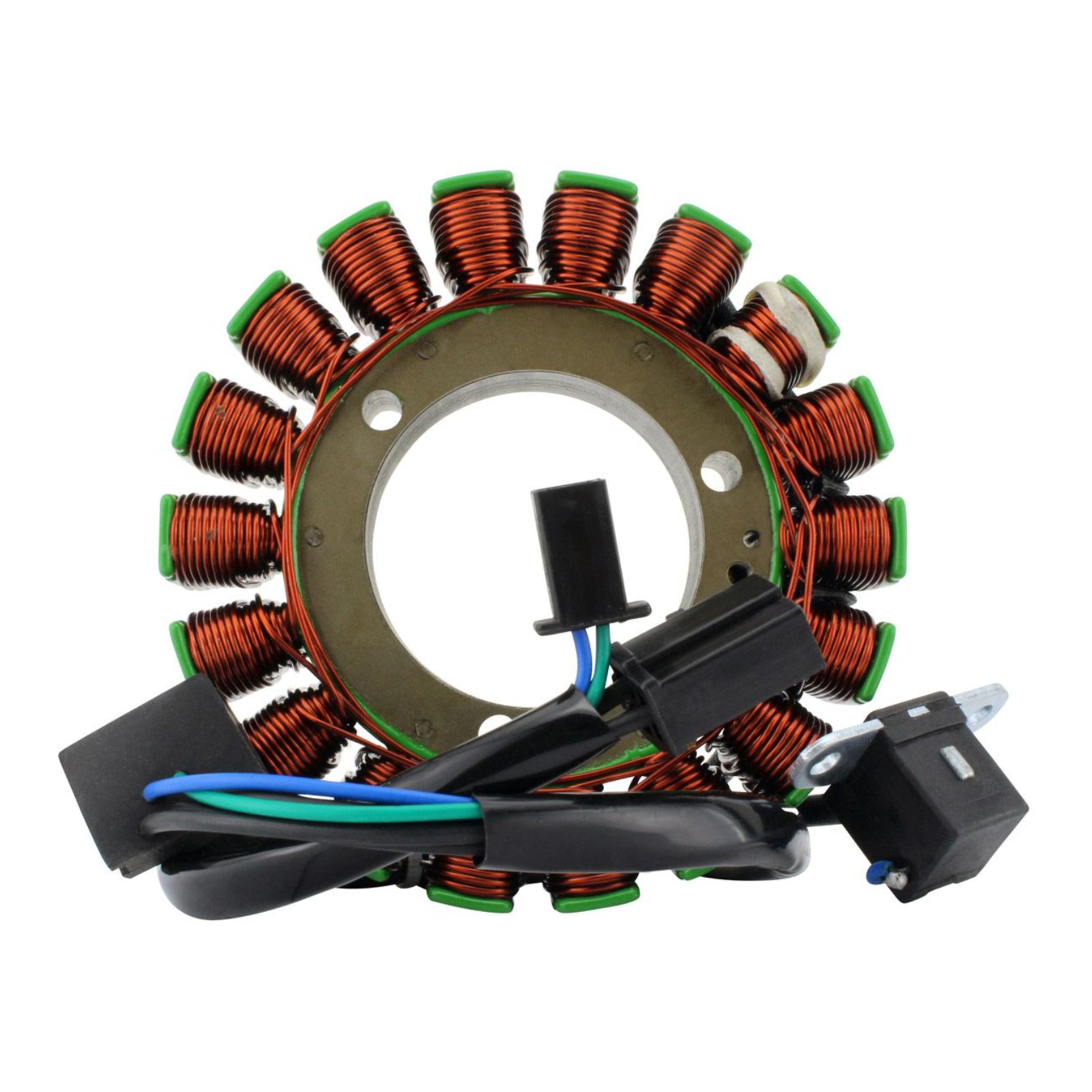

GENERATOR STATOR SUZ VSTORM 1000 02-09 2012

RMSTATORSKU: RMS010107577
No reviews

Price:
Sale price$399.91
Stock:
Hurry, almost sold out!

Description

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 119 mm
  • Thickness: 28 mm
  • Length of wires stator to grommet: 160 mm
  • Length of wires grommet to plug: 430 mm
  • Length of pickup coil's wire to grommet: 150 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: Black to Black = 0.4ohms +-20%
  • Alternator: to ground = O.L
  • Pickup: Green to Blue = 200ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
