Description

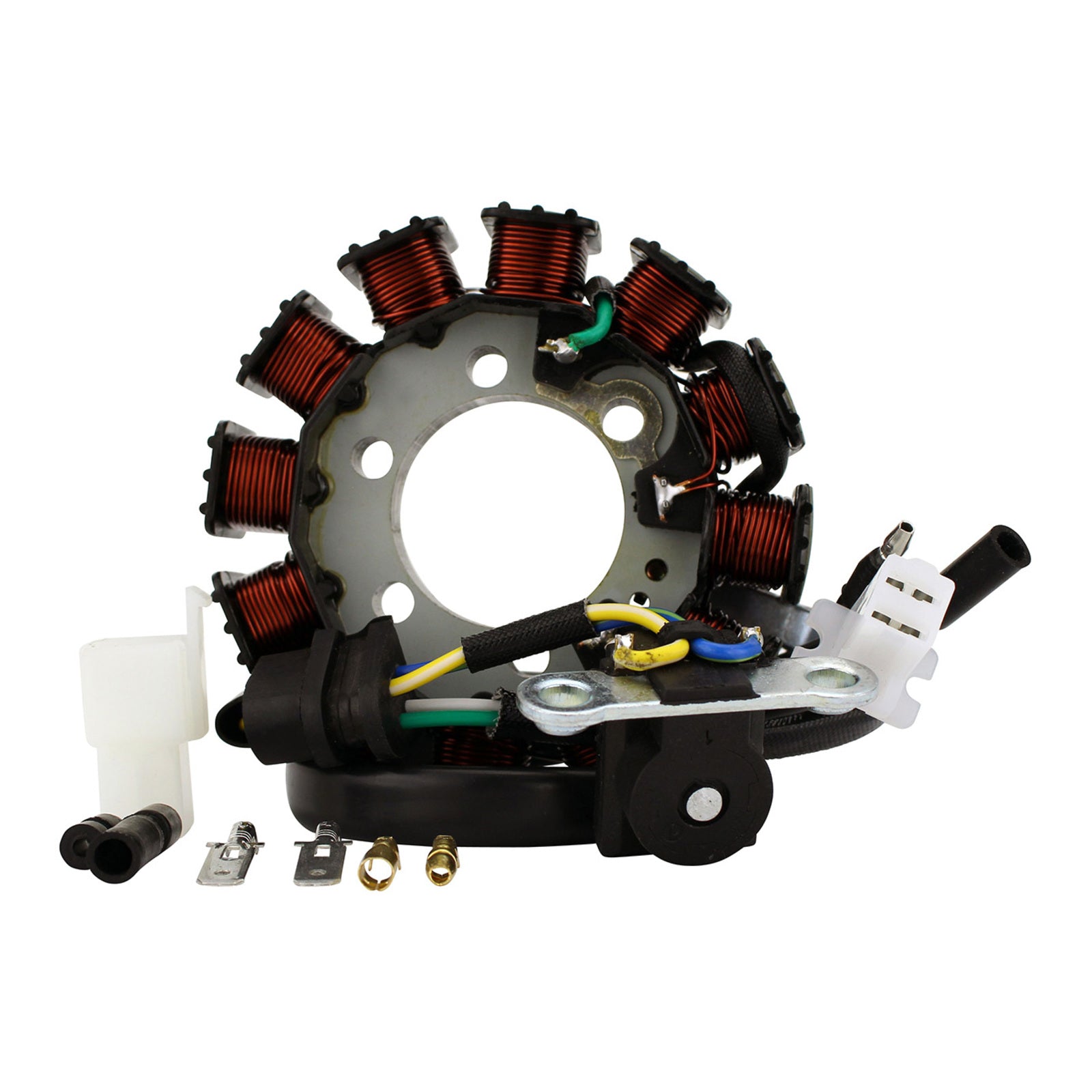

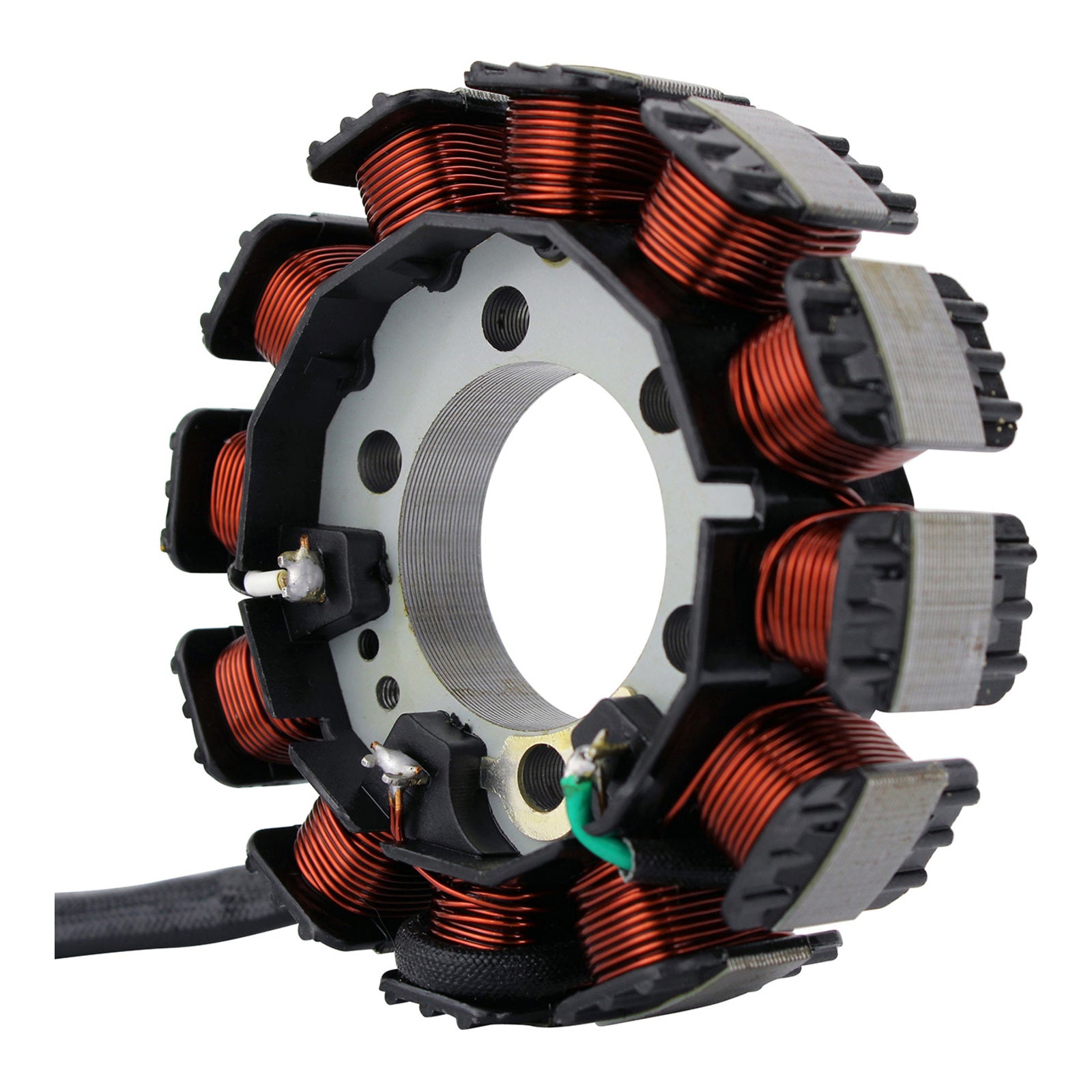

Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
- Interior diameter: 35 mm
- Exterior diameter: 92 mm
- Thickness: 10 mm
- Length of wires stator to grommet: 100 mm
- Length of wires grommet to plug: 380 mm
- Length of pickup coil's wire to grommet: 20 mm
Other specifications:
- Number of wires: 4
- Number of plugs: 3
- Number of pins: 4
- Number of poles: 12
Wire to wire resistance:
- Alternator: = White to Green 0.8 ohms +-20%
- Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20
Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
