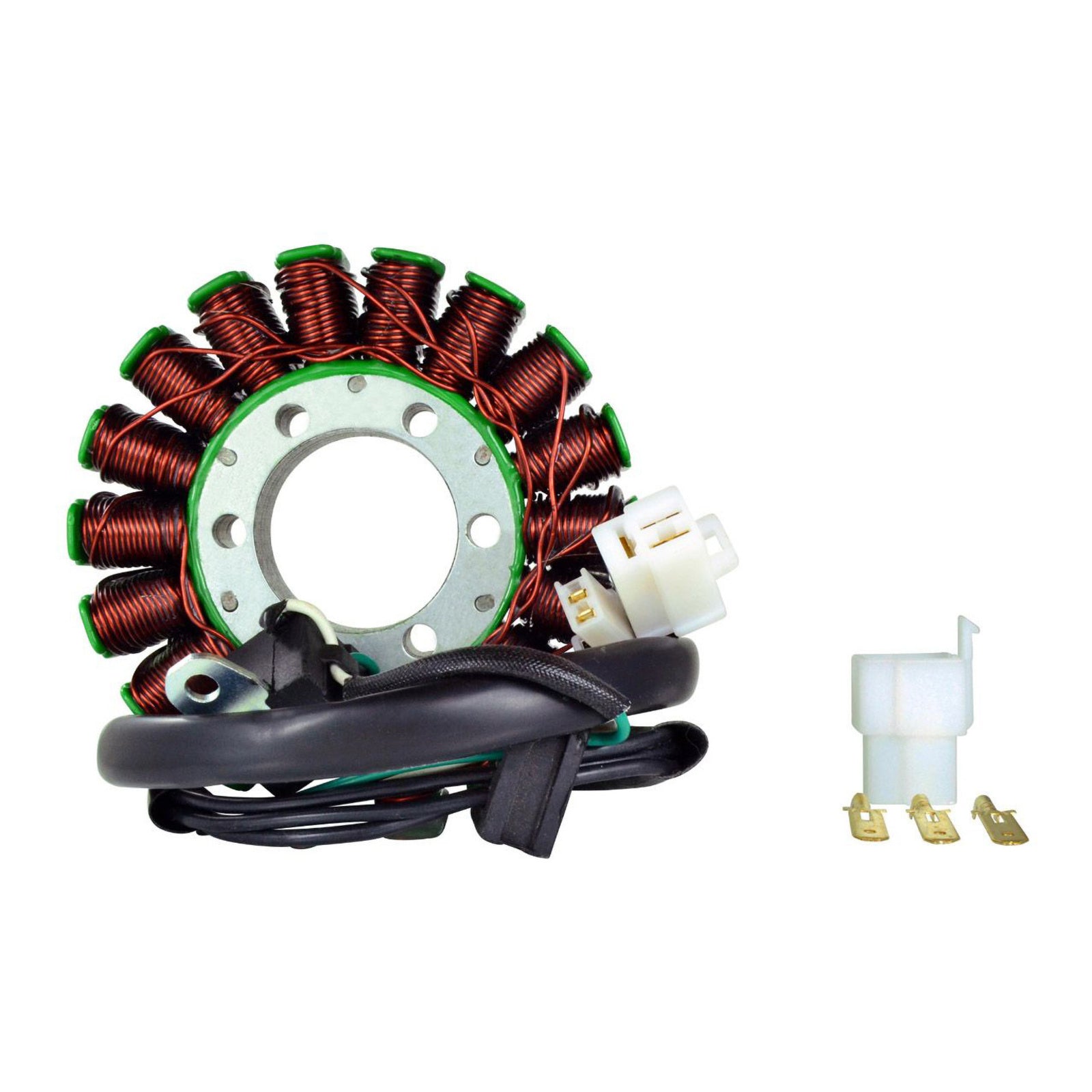

GENERATOR STATOR SUZ SV650 03-09 (RMS010-102166)

RMSTATORSKU: RMS010102166
No reviews

Price:
Sale price$489.90
Stock:
In stock

Description

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause for repetitive electrical issues.

Dimensions:

  • Interior diameter: 38 mm
  • Exterior diameter: 108 mm
  • Thickness: 19 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug: 550 mm
  • Length of pickup coil's wire to grommet: 59 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

Wire to wire resistance:

  • Alternator: Black to Black = 0.5 ohms +-20%
  • Pickup: Green to White = 194 ohms +-20%
