Description

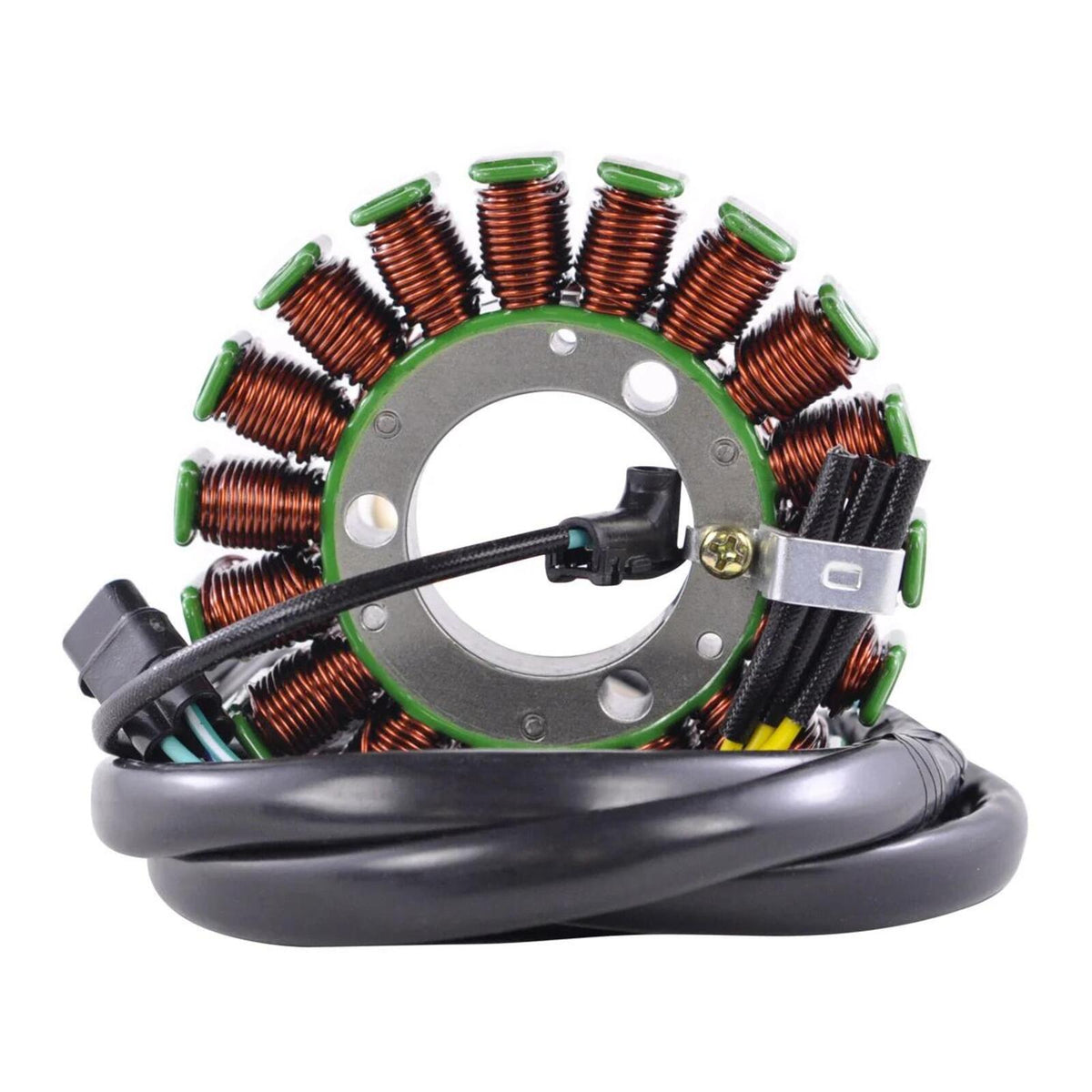

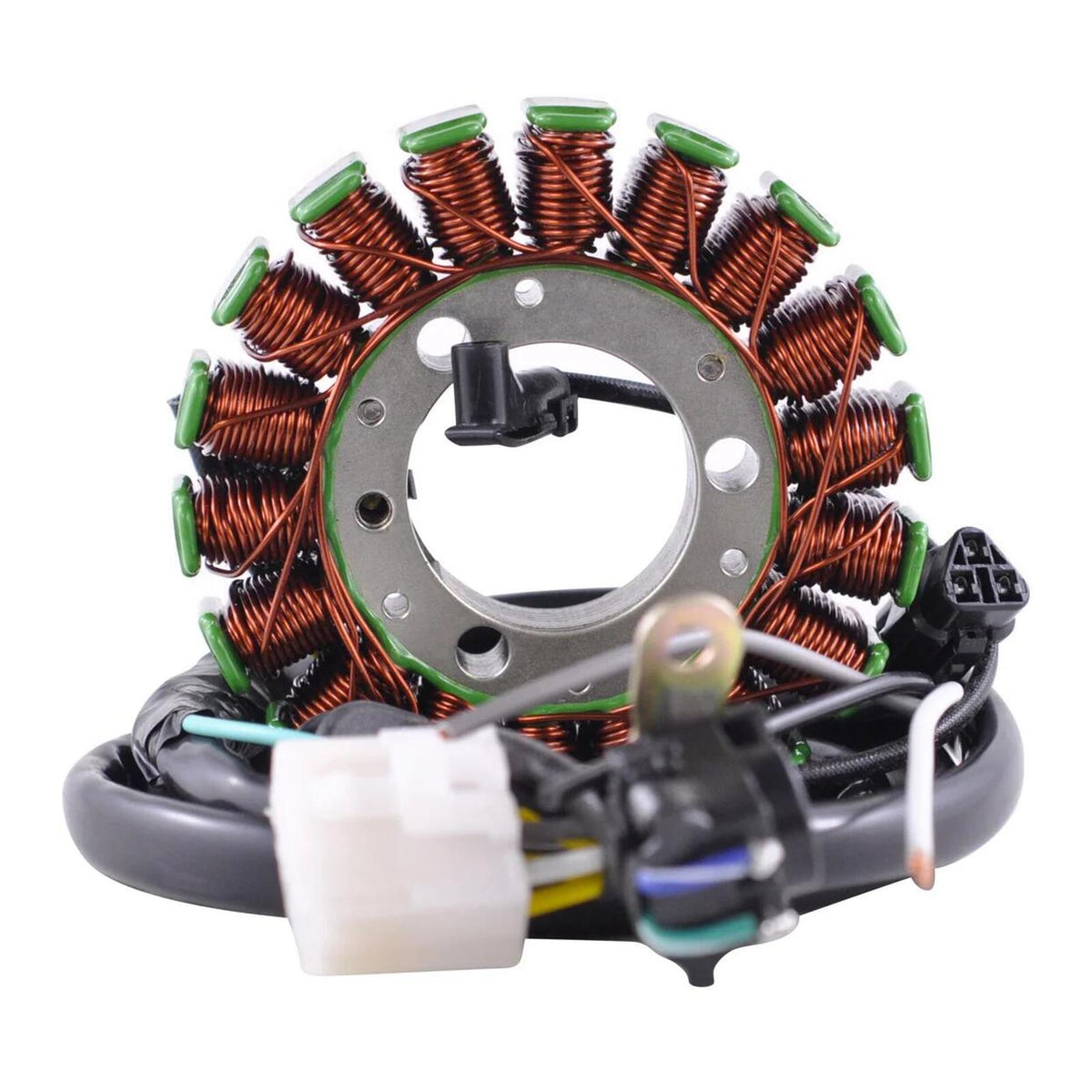

Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

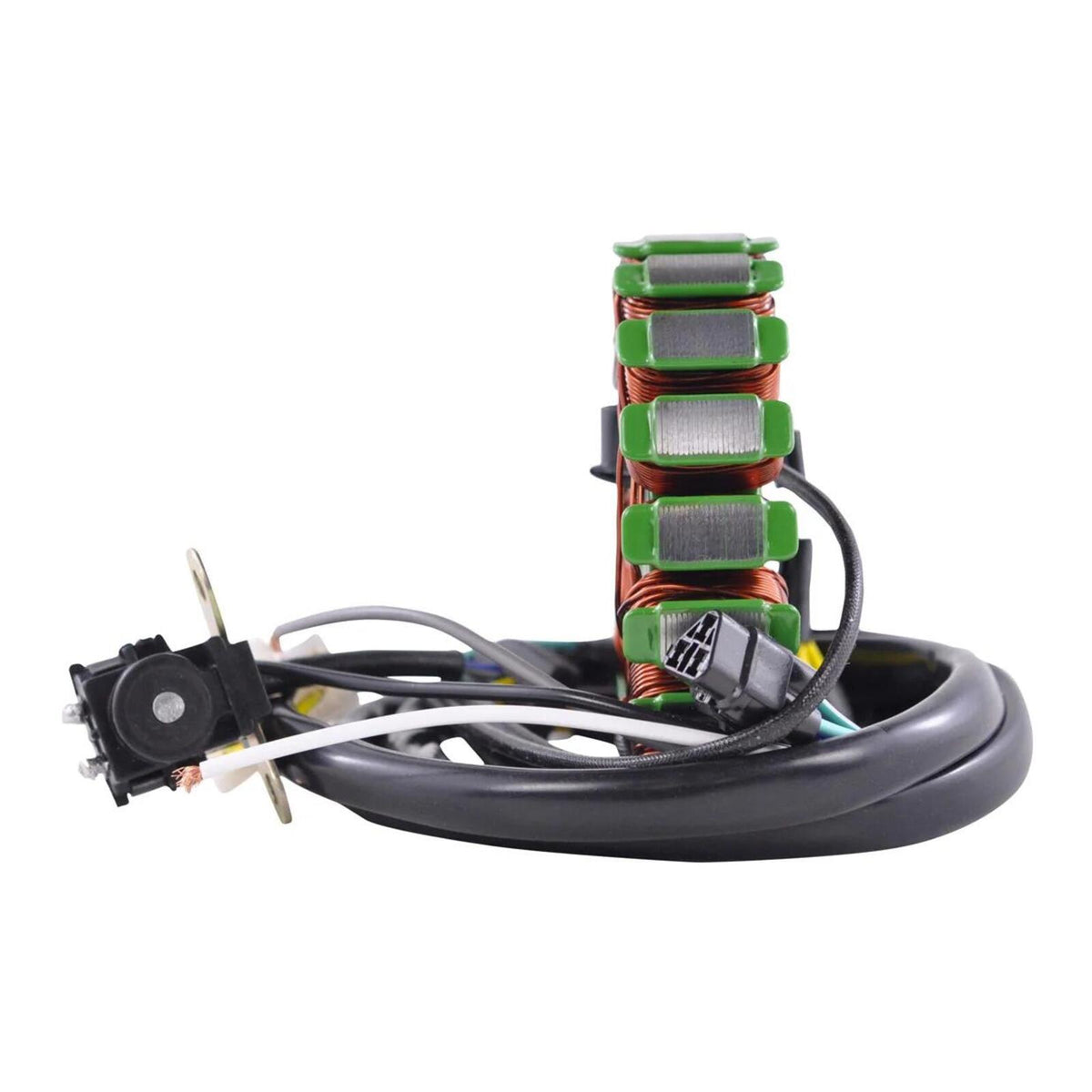

- Pick up pulsar coil included

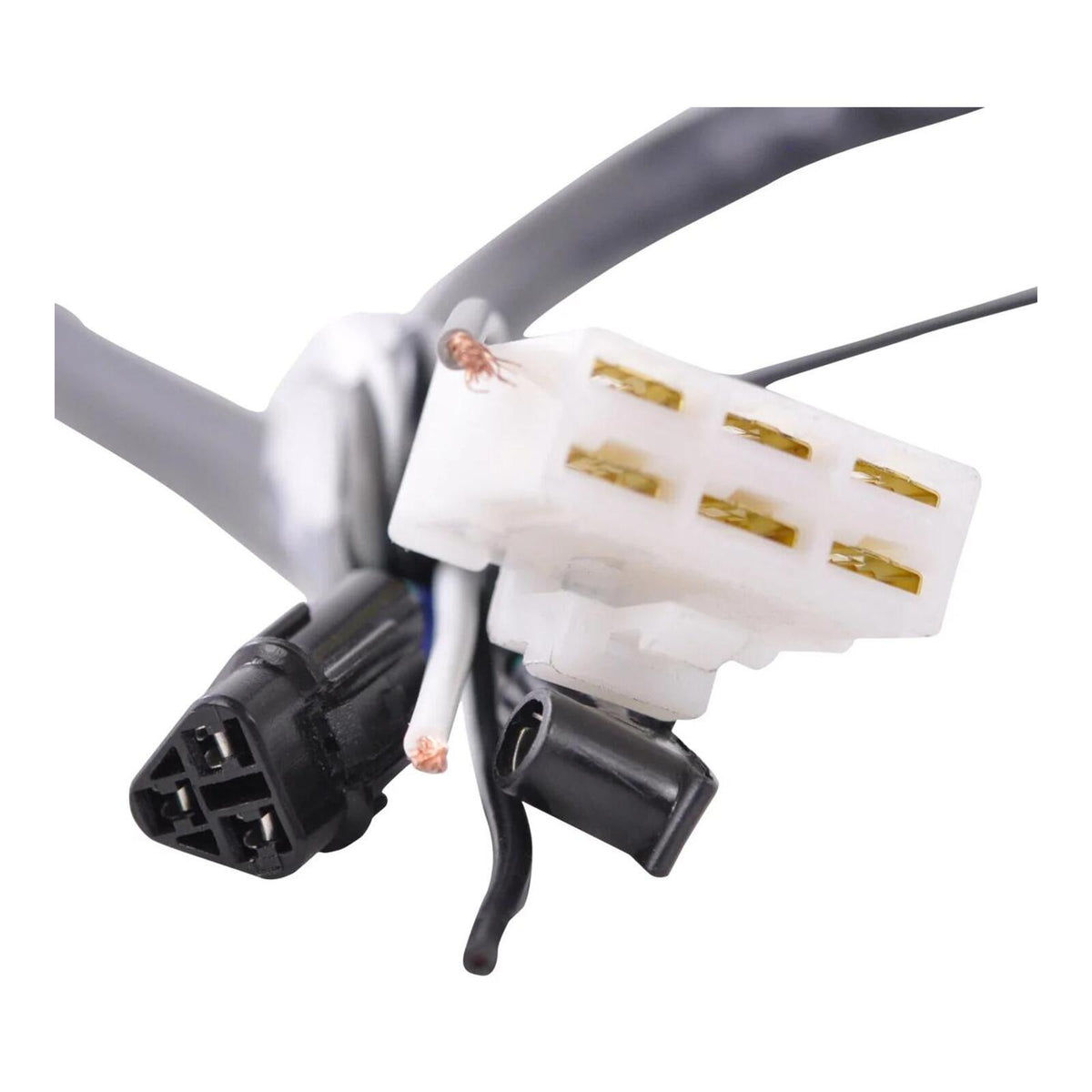

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.
Before Installing the New Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010''.
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter : 35 mm
- Exterior diameter : 93 mm
- Thickness : 18 mm
- Length of wires stator to grommet 1 : 155 mm
- Length of wires grommet to plug 1: 505 mm
- Length of wires grommet to plug 2: 810 mm
- Length of wires grommet to pick-up coil's plug : 72mm
- Length of pickup coil's wire to grommet : 60 mm
Other Specifications:
- Number of wires : 13
- Number of plugs : 4
- Number of pins : 13
- Wire to wire resistance :
- Alternator : Yellow to Yellow = 0.9 ohms ±20%
- Pickup : Blue/White to Green/White = 244 ohms ±20%
