Description
This convenient Denali lighting kit combines several high-quality Denali components including a wiring harness, light mount, and lights. It's designed to give you everything you need to equip your machine with an improved lighting setup and illuminate your riding experience.

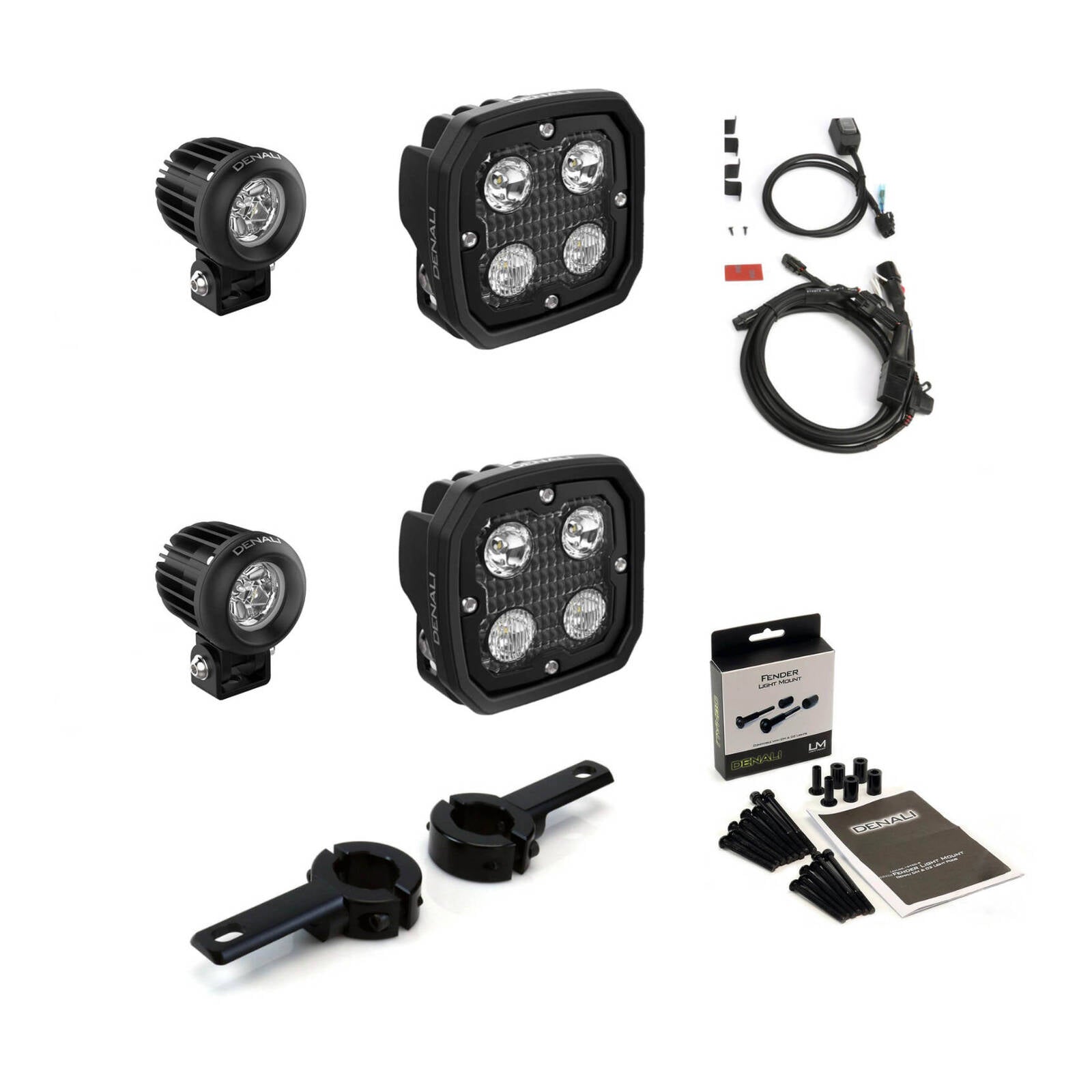

Kit contains:
1x DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) (SKU: DEDNLWHS10900)
1x DENALI ENG GUARD/CRASHBAR LIGHT MNT/ 21-29MM DIAM TUBES BLK (SKU: DELAH0010300B)
1x DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 +FENDER MNT BLK] (SKU: DELAH0010700B)
2x DENALI D2 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (DEDNLD2050)
2x DENALI D4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (SKU: DEDNLD4050)
DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) details:
This DENALI Premium Wiring Harness features high-quality waterproof components and is designed to power two DENALI LED Light Pods. It features low-profile, water-tight connectors and premium moulded wire to ensure moisture is kept out of the system. The harness includes a completely sealed, waterproof switch that was engineered from the ground up to withstand harsh out-door abuse on powersports vehicles. It’s clever design can be either flush or bar mounted.
What’s In The Box?
- (x1) Premium Wiring Harness
- (x1) Single-Intensity Relay
- (x1) DrySeal™ ON-OFF Waterproof Illuminated Switch
- (x1) 7/8 inch Handlebar Switch Mount
- (x1) 1 inch Handlebar Switch Mount
- (x2) Self Tapping Screw
- (x1) Adhesive Pad
- (x4) Zip Ties
DENALI ENG GUARD/CRASHBAR LIGHT MNT/ 21-29MM DIAM TUBES BLK details:
DENALI Universal
This DENALI Bar Camp Light Mount Kit allows fitment of any DENALI LED Lights to engine guards, crash bars, or any tube 21mm-29mm (0.826in-1.125in) in diameter. These light mounts have a unique octagonal inner profile that allow the clamps to securely grip a wide range of tube diameters and include an optional, fully rotatable mounting shelf to create a super versatile and robust light mounting solution.
These clamps are intended for mounting lights to OEM or aftermarket crash bars, handlebars and frame tubes commonly found on adventure bikes, dual sport bikes, ATVs and snowmobiles. The clamps allow the lights to be positioned to the inside of the bars, ensuring they will be protected in a tip over.
Features
- Adjustable grip range (21mm-29mm) (0.826in-1.125in)
- Rotatable mounting shelf allows 4th axis of adjustability
- Lights can be mounted to shelf or directly to clamp
- Accepts M8 bolt from light pod
- Billet aluminum with black anodized finish
- Fits all standard SW-MOTECH, R&G, Givi, Kappa, Hepco-Becker, Krauser, Touratech, and BMW original crashbars
- Sold as pair
What's In The Box?
- (x2) Mounting clamps
- (x2) Rotatable mounting shelves
- (x1) Hardware Kit
DE NALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 +FENDER MNT BLK] details:
This single point mount positions our smaller lights on the front fender to create the most low profile mounting option. This mount is compatible with our DM and D2 light pods.
DENALI 2.0 D2 LED LIGHT POD WITH DATADIM™ TECHNOLOGY details:
The D2 light was designed to create an impressive beam of light that is the perfect balance between night time distance and daytime conspicuity.
Features:
- High-Intensi ty Series Cree LEDs outputting 1095 lumens per pod
- DrySeal™ Submersible Waterproof light can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional E-Mark Approved flood lens included
- Amber lenses available (sold separately) DNL.D 2.10100
Specifications:
- LED: (x1) 10 Watt Cree XPL HI
- Power Draw: 0.8 Amps
- Raw Lumens: 1095
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC
- Pod Size: 2.2” Round x 2.4” Deep
- Pod Weight: 0.6 lbs
- IP67 Waterproof & Submersible
- E Mark Approved Flood Lens
What's in the box?
- (1x) LED Light Pod
- (1x) Spot Lenses (Installed)
- (1x) E-Mark Approved Elliptical Flood Lenses (Included)
- (1x) Hinge Mount with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
DENALI D4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE details:
Simply put; the DENALI D4 is a beast. It is DENALI’s most powerful light packing the punch of 4380 lumens in an aggressively styled housing. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included spot lens throws a massive beam of light and carries an official E-Mark certification.
D4 Pod Features
- High-Intensity Series Cree LEDs outputting 4380 lumens per pod
- DrySeal™ Submersible Waterproof light can withstand the most extreme environments
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional E-Mark Approved flood lens included
- Amber lenses available (sold separately) DNL.D4.10100
D4 Pod Specs
- LED’s: (4x) 10 Watt Cree XPL HI
- Power Draw: 3.3 Amps
- Raw Lumens: 4380
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC
- Pod Size: 3.9” Square x 2.6” Deep
- Pod Weight: 1.55 lbs
- IP67 Waterproof & Submersible
- E Mark Approved Spot Lens
D4 Pod - What’s In The Box?
- (1x) LED Light Pods
- (1x) True-Hybrid™ Lenses (Installed)
- (1x) E-Mark Approved Spot Lenses (included)
- (1x) Hinge Mounts with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
